APT2012LZGCK Model Information

Part Number

• APT2012LZGCK

Description

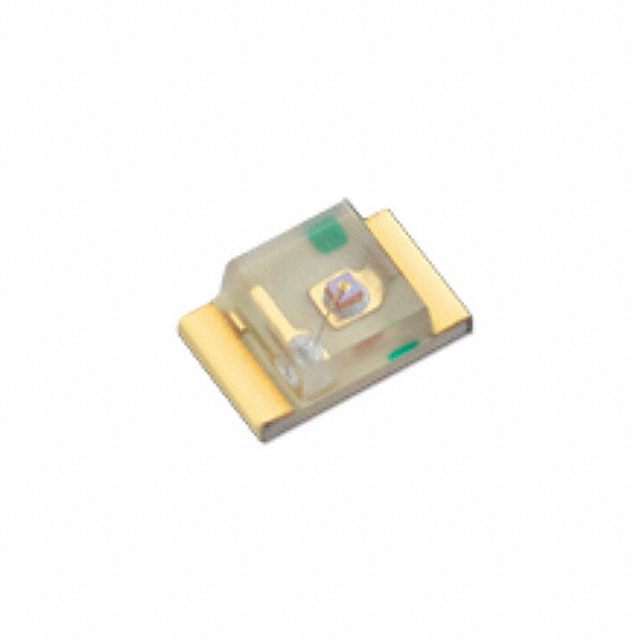

• Type: 2.0 mm x 1.25 mm SMD LED
• Material: InGaN on Sapphire Light Emitting Diode
• Lens Type: Water Clear
• Emitting Color: Green
• Package: 2000 pcs / reel
• Moisture Sensitivity Level: 3
• Halogen-Free: Yes
• RoHS Compliant: Yes

Features

• Low Power Consumption: Ideal for backlight and indicator applications
• Thin Profile: 0.75 mm thickness
• Applications: Backlight, status indicator, home and smart appliances, wearable and portable devices, healthcare applications

Electrical and Optical Characteristics (at TA=25°C)

• Wavelength at Peak Emission (λpeak): 515 nm (Green)
• Dominant Wavelength (λdom): 525 nm (Green)
• Spectral Bandwidth at 50% Relative Intensity (Δλ): 35 nm
• Capacitance (C): 45 pF
• Forward Voltage (VF): 2.2 V to 3.0 V @ 2 mA
• Reverse Current (IR): Max 50 µA @ VR = 5 V
• Temperature Coefficient of λpeak: -0.05 nm/°C
• Temperature Coefficient of λdom: -0.03 nm/°C
• Temperature Coefficient of VF: -2.9 mV/°C

Absolute Maximum Ratings (at TA=25°C)

• Power Dissipation (PD): 102.5 mW
• Reverse Voltage (VR): 5 V
• Junction Temperature (Tj): 115 °C
• Operating Temperature (Top): -40°C to +85°C
• Storage Temperature (Tstg): -40°C to +85°C
• DC Forward Current (IF): 25 mA
• Peak Forward Current (IFM): 150 mA (1/10 duty cycle, 0.1ms pulse width)
• Electrostatic Discharge Threshold (HBM): 450 V
• Thermal Resistance (Junction / Ambient) (Rth JA): 550 °C/W
• Thermal Resistance (Junction / Solder point) (Rth JS): 370 °C/W

Mechanical Data

• Package Dimensions: 2.0 mm x 1.25 mm x 0.75 mm
• Recommended Soldering Pattern: See datasheet for detailed dimensions and tolerances

Applications

• Backlighting
• Status Indicators
• Home and Smart Appliances
• Wearable and Portable Devices
• Healthcare Applications

Precautions

• Electrostatic Discharge: Handle with care to avoid damage from ESD. Use wrist bands or anti-electrostatic gloves.
• Soldering: Reflow soldering is recommended. Maximum number of reflow soldering passes is 2 times.
• Operating Conditions: Ensure the product is operated within the specified environmental and electrical limits.

Packaging

• Tape Specifications: See datasheet for detailed tape dimensions
• Reel Dimensions: See datasheet for detailed reel dimensions
