Name: GPI90005DF88
Brand: GaNPower
SKU: JM-GPI90005DF88
Availability: InStock

GaNPower GPI90005DF88

View All Single FETs, MOSFETs by GaNPower

Part Number:
GPI90005DF88
Manufacturer:
GaNPower
Category:
Single FETs, MOSFETs
RoHs:
RoHS Compliant
Datasheet:
GPI90005DF88_Datesheet
Description:
GaNFET N-CH 900V 5A DFN8x8
In stock 50

" Not available to buy online? Want the lower wholesale price? Please send RFQ, we will respond immediately

Leave Us A Message!

[email protected]

We`re not around but we still want to hear from you! Leave us a note:

SEND

*You can contact us directly on WhatsApp!

Specifications

Type

Paramete

Type

Paramete

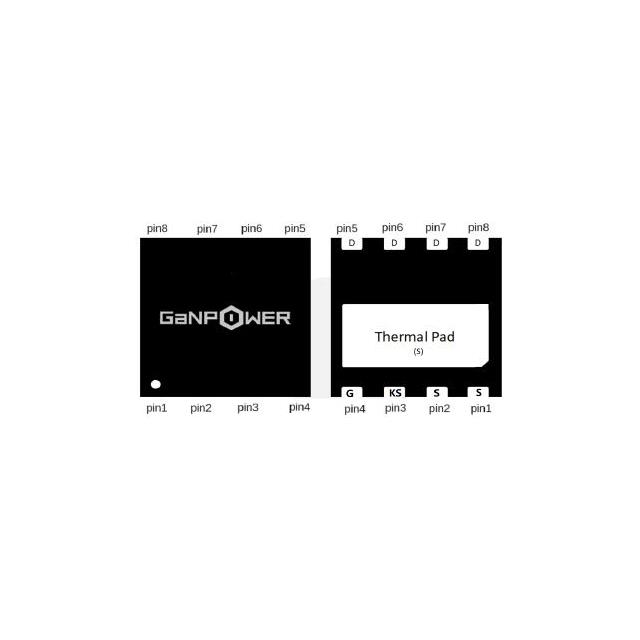

Package / Case

8-DFN

Supplier Device Package

8-DFN (8x8)

Rds On (Max) @ Id, Vgs

320mOhm @ 1A, 6V

Qualification

Grade

Operating Temperature

-55°C ~ 150°C (TJ)

Power Dissipation (Max)

FET Type

N-Channel

Vgs (Max)

+7.5V, -12V

Input Capacitance (Ciss) (Max) @ Vds

39 pF @ 400 V

Gate Charge (Qg) (Max) @ Vgs

1.6 nC @ 6 V

Mounting Type

Surface Mount

Technology

GaNFET (Gallium Nitride)

Vgs(th) (Max) @ Id

1.3V @ 3.5mA

FET Feature

Current - Continuous Drain (Id) @ 25°C

Drain to Source Voltage (Vdss)

900 V

Drive Voltage (Max Rds On, Min Rds On)

Overview

DESCRIPTION

· N-channel 900V Power GaN HEMT based on E-mode GaN on silicon technology.

· Features extremely low on-state resistance and very low input capacitance.

· Zero reverse recovery charge, suitable for high power density applications.

· Designed for ultra-high switching frequency and outstanding efficiency.

FEATURES

· BVdss: 900V, Rdson: 235mΩ, Ids: 5A (25°C), Qg: 1.6nC.

· Ultra-low RDS(on) and high dv/dt capability.

· Extremely low input capacitance and zero Qrr.

· Outstanding switching performance and low profile design.

APPLICATIONS

· Switching power applications and server/telecom power systems.

· EV OBC and DC-DC converters.

· UPS, inverters, and photovoltaic systems.
