DESCRIPTION

· The LM78xx series is a monolithic integrated circuit designed for fixed positive voltage regulation.
· It complements the LM78xx series in various applications, including on-card regulation to eliminate noise and distribution issues.
· Capable of delivering up to 1.5A of output current, these regulators feature internal limiting and thermal shutdown for overload protection.
· They can also be used with external components for adjustable output voltages and currents, or as power pass elements in precision regulators.

FEATURES

· Output current up to 1.5A.
· Internal thermal overload protection.
· Internal short-circuit current limiting.
· Output transistor safe-area compensation.
· Available output voltages: 5V, 6V, 8V, 9V, 12V, 15V, 18V, 20V, and 24V.

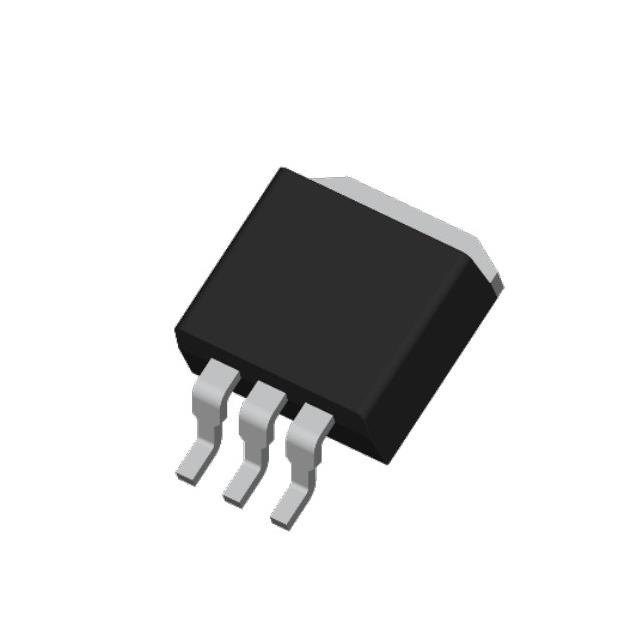

· Packages include SOT-223, TO-252, TO-263, TO-220, and TO-220F.

APPLICATIONS

· On-card regulation to mitigate noise and distribution problems.
· Suitable for use in fixed-voltage regulators.
· Can be configured with external components for adjustable voltage and current outputs.
· Utilized as power pass elements in precision regulators.
