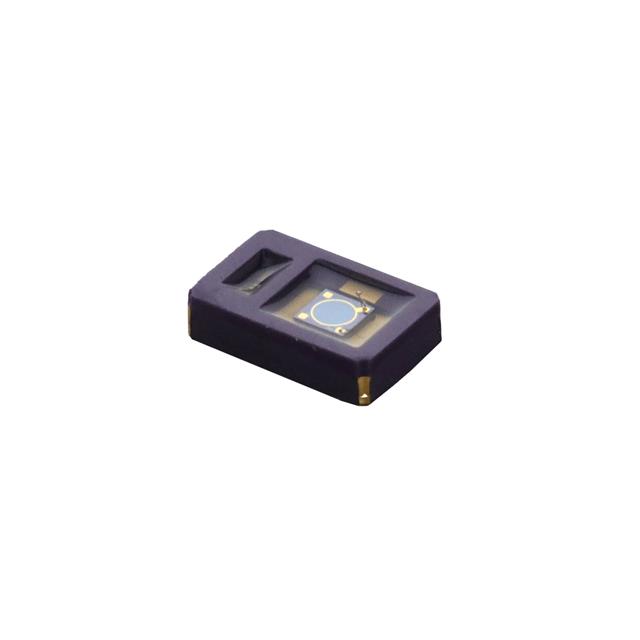

MTRS5116C Model Information Summary

Basic Information

• Model Number: MTRS5116C
• Manufacturer: Marktech Optoelectronics
• Product Type: Shortwave Infrared Light Photo Reflector
• Peak Emission Wavelength: 1625 nm
• Package Type: 5.1 x 3.3 mm Surface Mount
• Active Area: 1.00 mm
• Detection Distance: Optimum 0.5-1.5 mm
• Applications: Card Reader, Bar-code Reader, Edge Sensing / Money-bill Reader

Absolute Maximum Ratings (Ta = 25ºC)

• Forward Current (LED): 40 mA
• Pulse Forward Current (LED): 0.5 A (Tw=10µsec, T=10msec)
• Reverse Voltage (LED): 5 V
• Power Dissipation (LED): 100 mW
• Reverse Voltage (PD): 3 V (IR=10uA)
• Reverse Current (LED): 10 µA (VR=5V)
• Operating Temperature Range: -20 to +80 ºC
• Storage Temperature Range: -30 to +100 ºC

Electrical & Optical Characteristics (Ta = 25ºC)

• Forward Voltage (LED): 0.87 V (IF=20mA)
• Peak Emission Wavelength (LED): 1625 nm (IF=20mA)
• Spectral Line Half Width (LED): 120 nm (IF=20mA)
• Power Output (LED): 0.71 mW (IF=20mA)
• Reverse Dark Current (Iceo): 2.0 µA (VR=1V)
• Light Current @1300nm: 180 µA (λ=1300nm; VR=2V)
• Shunt Resistance: 2 MΩ (VR=10mV)
• Sensitivity Range: 600 - 1750 nm (VR=0V)
• Responsivity: 0.70 A/W (λ=1550nm)
• Quantum Efficiency: 55% (λ=1660nm)
• Total Capacitance: 60 pF (VR=0V)
• Rise/Fall Time (10 to 90%): Not specified (VR=10V, IF=20mA, RL=1KΩ)

Additional Information

• Housing: Black molded housing to reduce the effect of external ambient light
• Custom Emitter/Detectors: Available upon request
• Footprint Dimensions:LED Cathode: 5.10 mmLED Anode: 0.90 mmPD Cathode: 2.80 mmPD Anode: 0.70 mmReference Dimensions: 1.30 mm ± 0.13 mmPCB Footprint Pattern: 2.2 mm x 1.2 mm (4 places)
