Name: TCPT1300X01
Brand: Vishay
SKU: JM-TCPT1300X01
Availability: InStock

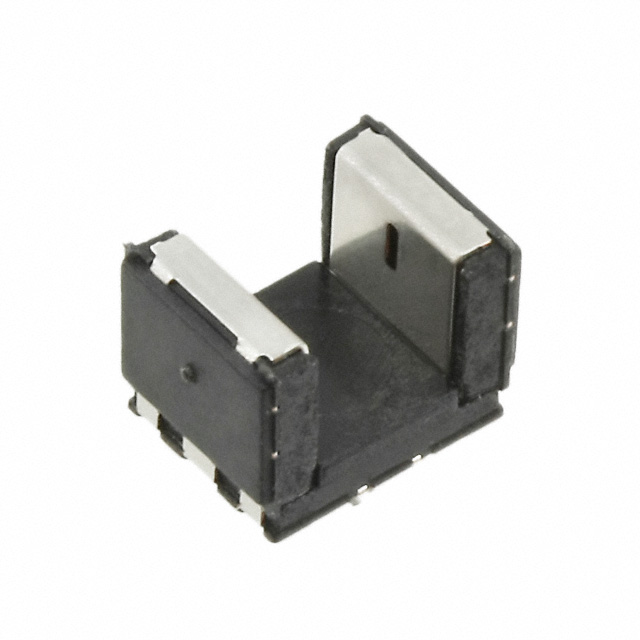

Vishay TCPT1300X01

View All Photointerrupters - Slot Type - Transistor Output by Vishay

Part Number:
TCPT1300X01
Manufacturer:
Vishay
Category:
Photointerrupters - Slot Type - Transistor Output
RoHs:
RoHS Compliant
Datasheet:
TCPT1300X01_Datesheet
Description:
SENSOR OPT SLOT PHOTOTRANS 6SMD
In stock 23,644

" Not available to buy online? Want the lower wholesale price? Please send RFQ, we will respond immediately

Leave Us A Message!

[email protected]

We`re not around but we still want to hear from you! Leave us a note:

SEND

*You can contact us directly on WhatsApp!

Specifications

Type

Paramete

Type

Paramete

Qualification

AEC-Q101

Sensing Distance

0.118" (3mm)

Voltage - Collector Emitter Breakdown (Max)

20 V

Current - Collector (Ic) (Max)

20 mA

Sensing Method

Through-Beam

Current - DC Forward (If) (Max)

25 mA

Mounting Type

Surface Mount

Response Time

20µs, 30µs

Grade

Automotive

Package / Case

6-SMD

Output Configuration

Phototransistor

Operating Temperature

-40°C ~ 105°C

Overview

DESCRIPTION

· The TCPT1300X01 is a compact transmissive sensor with an infrared emitter and a phototransistor detector in a surface mount package.

FEATURES

· Surface mount package type.
· Phototransistor detector.
· Dimensions: 5.5 x 4 x 4 mm.
· AEC-Q101 qualified.
· Gap width: 3 mm.
· Aperture width: 0.3 mm.
· Typical output current: 0.6 mA.
· Emitter wavelength: 950 nm.
· Moisture sensitivity level: 1.
· RoHS and WEEE compliant.

APPLICATIONS

· Automotive optical sensors.
· Accurate position sensor for encoders.
· Motion speed detection.
