DESCRIPTION

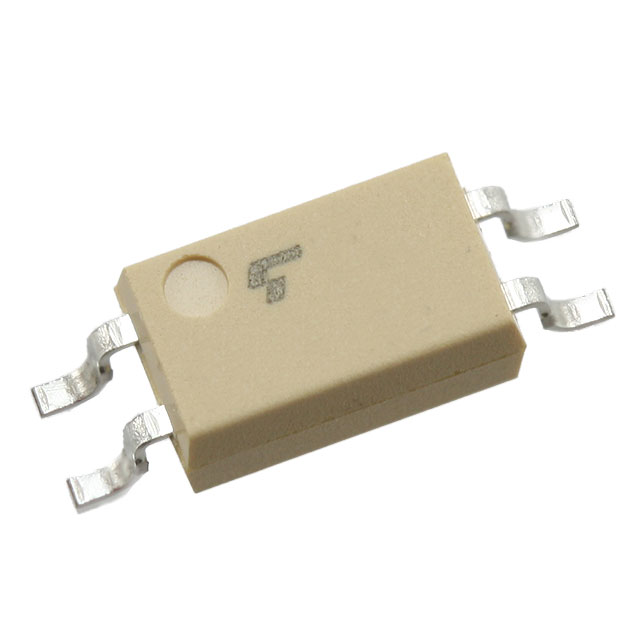

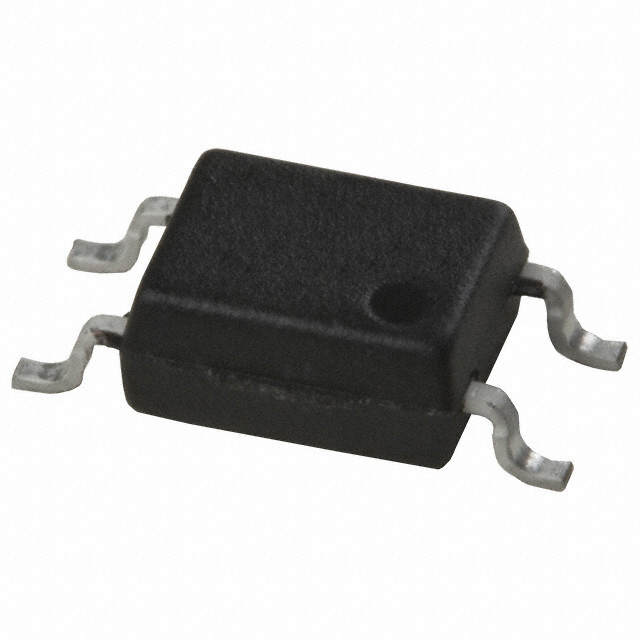

· The VOL617A is an optocoupler with a GaAs infrared emitting diode and a silicon planar phototransistor detector in a 4-pin LSOP package.
· It ensures high current transfer ratio, low coupling capacitance, and high isolation voltage.
· Designed for signal transmission between electrically isolated circuits.

FEATURES

· Low profile package.
· High collector-emitter voltage (VCEO = 80 V).
· Isolation test voltage of 5000 V RMS.
· Isolation voltage (VIORM) of 1050 V peak.
· Low coupling capacitance.
· High common mode transient immunity.
· Material categorization compliant with specific standards.

APPLICATIONS

· Telecom.
· Industrial controls.
· Battery-powered equipment.
· Office machines.
· Programmable controllers.
