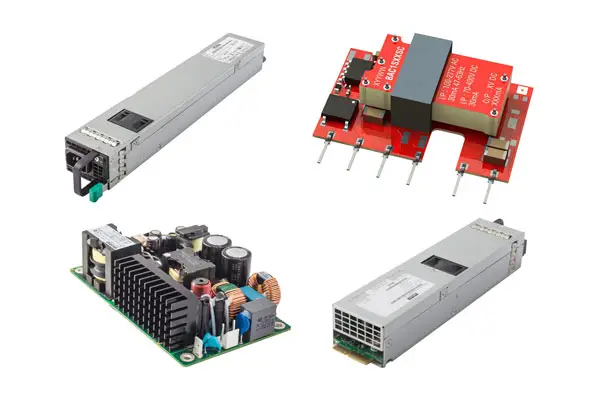

AC/DC Converters are electronic devices that convert alternating current (AC) to direct current (DC). This conversion is essential for many electronic devices and systems that require DC power to operate. AC/DC Converters are widely used in household appliances, computers, mobile phone chargers, and other applications where it is necessary to convert mains electricity into direct current. They are typically designed with built-in safety features such as over-temperature protection and short-circuit protection to ensure safe usage.

AC DC Converters

AC-DC converters, also known as rectifiers, are electronic devices used to convert alternating current (AC) to direct current (DC). This conversion is crucial in many applications where electronic devices or systems require DC power but the available power supply is AC, as is the case with standard electrical outlets.

1. Basic Functionality:

• AC Input: AC voltage is supplied to the converter from an external power source (typically from a wall outlet or industrial power supply).
• Rectification: The core function of the AC-DC converter is to transform the AC waveform into a unidirectional (DC) flow of electricity. This is achieved through a process called rectification, which uses diodes or other semiconductor devices to allow current to flow in only one direction.
• DC Output: The result of the conversion is a direct current (DC) that is suitable for use by most electronic devices, such as computers, battery chargers, and power supplies for industrial equipment.

2. Types of AC-DC Converters:

• Half-Wave Rectifier:
• Full-Wave Rectifier:
• Bridge Rectifier:
• Switching Rectifiers (Switch Mode Power Supply - SMPS):

3. Key Components:

• Rectifying Diodes: The primary component responsible for directing current flow in one direction.
• Capacitors: Used to smooth out the pulsating DC output and reduce ripple, providing a more stable DC voltage.
• Inductors: In some designs, inductors may be used to further smooth the output or reduce electrical noise.
• Filter Circuits: Help reduce voltage ripple and noise in the output, improving the quality of the DC output.
• Voltage Regulator: Used to maintain a constant output voltage, especially in sensitive electronic devices.

4. Applications:

• Power Supply for Electronics: AC-DC converters are widely used in power supplies for devices like computers, televisions, audio equipment, and industrial machinery.
• Battery Charging: AC-DC converters are used in chargers to convert AC from wall outlets into DC to charge batteries in devices like smartphones, laptops, and electric vehicles.
• Renewable Energy: Solar power systems often use AC-DC converters to convert the AC output from inverters into DC for battery storage.
• Electric Vehicles (EVs): EVs use AC-DC converters to convert grid power to charge their batteries.
• LED Drivers: Some LED lighting systems use AC-DC converters to provide the appropriate DC voltage for efficient LED operation.

5. Advantages:

• Efficiency: Modern AC-DC converters, especially switching converters, are highly efficient, minimizing energy loss.
• Power Regulation: They can provide stable and regulated DC output even when the input AC voltage fluctuates.
• Versatility: AC-DC converters can be used in a wide range of applications, from low-power consumer devices to high-power industrial systems.

6. Challenges:

• Ripple: Despite using smoothing techniques, there is often some residual ripple (fluctuations in voltage) in the DC output. This may need further filtering in sensitive applications.
• Heat Dissipation: In high-power converters, heat generation can be an issue, requiring good thermal management (like heat sinks or cooling systems).
• Size and Complexity: While simple rectifiers are easy to implement, more advanced designs like SMPS can be complex and require careful design to ensure efficiency and stability.

In summary, AC-DC converters are essential components in modern electronics, enabling the use of AC power sources to supply DC-powered devices. Their efficiency, design complexity, and applications vary depending on the requirements of the system, from simple household chargers to complex industrial and renewable energy systems.
