Introduction of Resonators

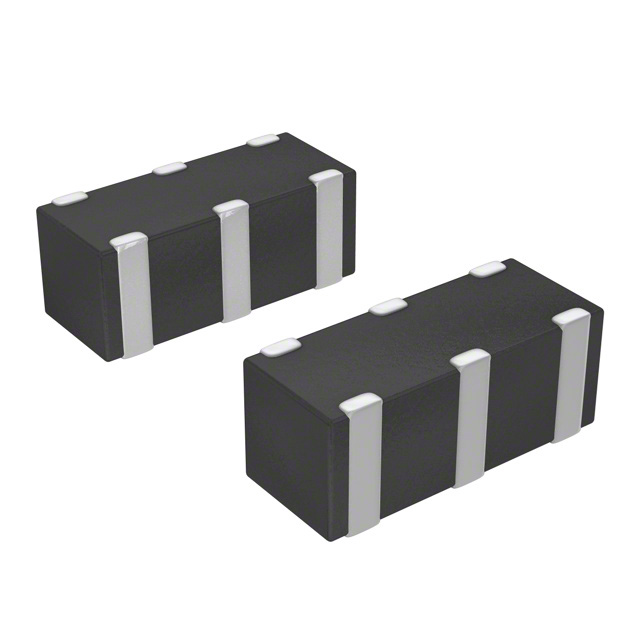

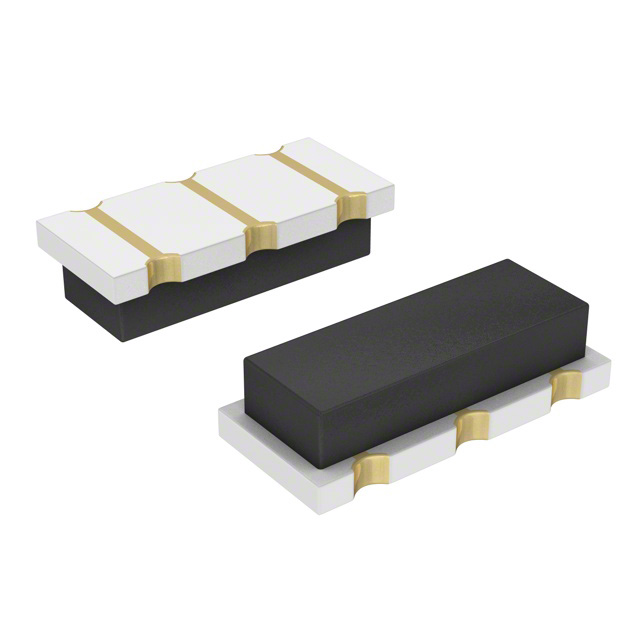

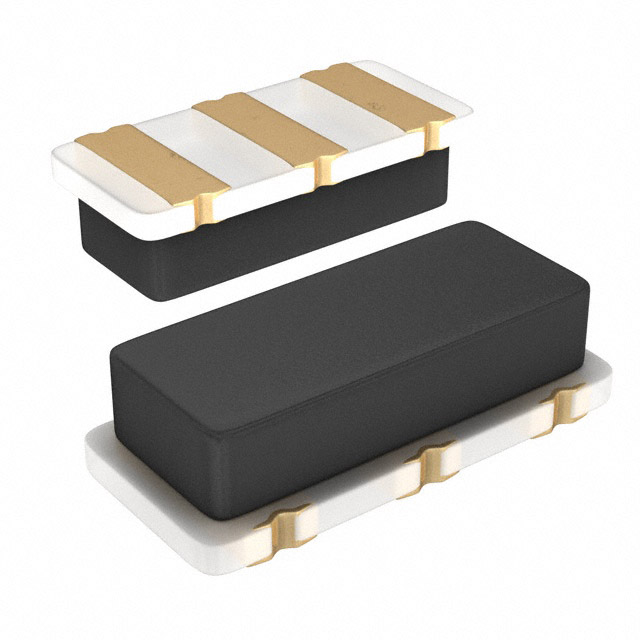

A resonator is an electronic component designed to generate a specific resonant frequency. It is known for its stability and strong resistance to interference. Similar to low-frequency circuits, resonators are fundamental components in radio frequency circuits. They find extensive application in filters, oscillators, frequency meters, and adjustable amplifiers. Typically, RF/MW resonators are based on transmission line resonator designs.

Products in the resonator family are frequency-selective elements that create a frequency source when paired with an external drive circuit, much like quartz crystal devices. However, they utilize different technologies, such as surface acoustic wave (SAW) or piezoceramic materials. In areas where their applications overlap with quartz crystals, resonator devices typically provide enhanced durability at the cost of reduced accuracy and output stability.

How Does a Resonator Work?

Not all exhaust resonators are constructed in the same way, but they all feature sound-dampening materials surrounding perforated tubes of specific lengths and diameters.

The primary function of a car's resonator relies on a principle known as destructive interference, similar to the technology used in noise-canceling headphones. When high and low-frequency sound waves enter the resonator, they reflect off the walls (resonating), which helps cancel out higher, more unpleasant tones, reducing exhaust drone. This process also alleviates some of the work for your muffler without sacrificing engine efficiency or power.

A resonator is ideally engineered to target the frequency ranges where the engine produces the loudest noise. However, even if the frequency doesn’t match exactly what the resonator is tuned for, it can still achieve some degree of destructive interference.
