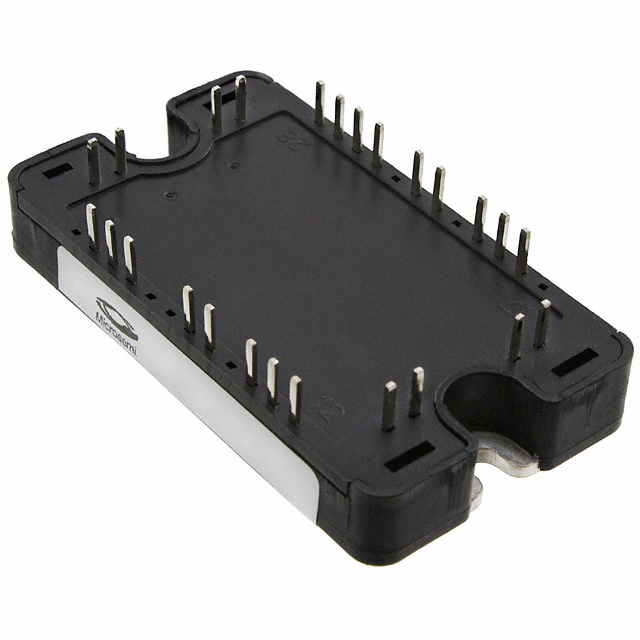

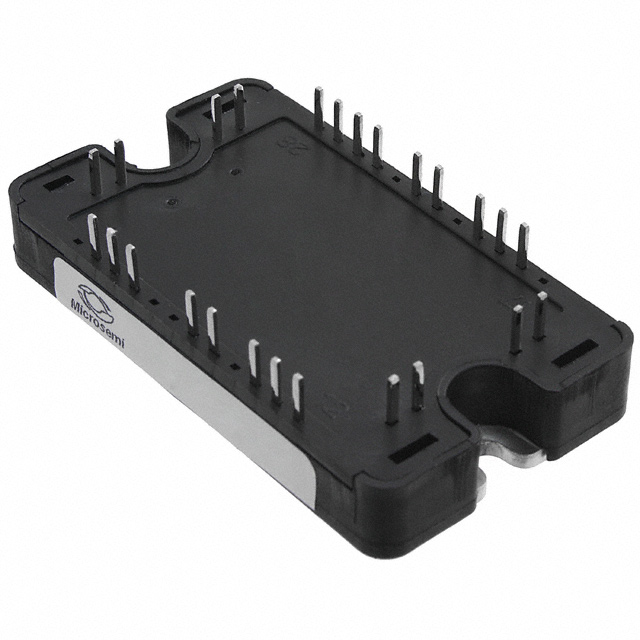

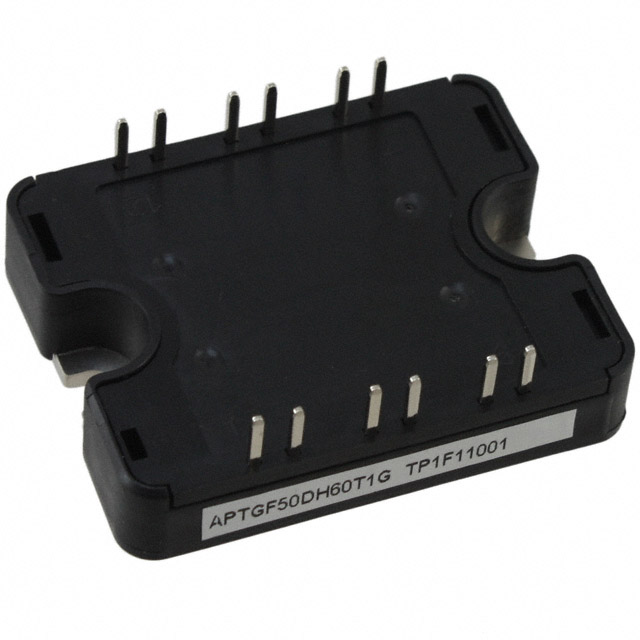

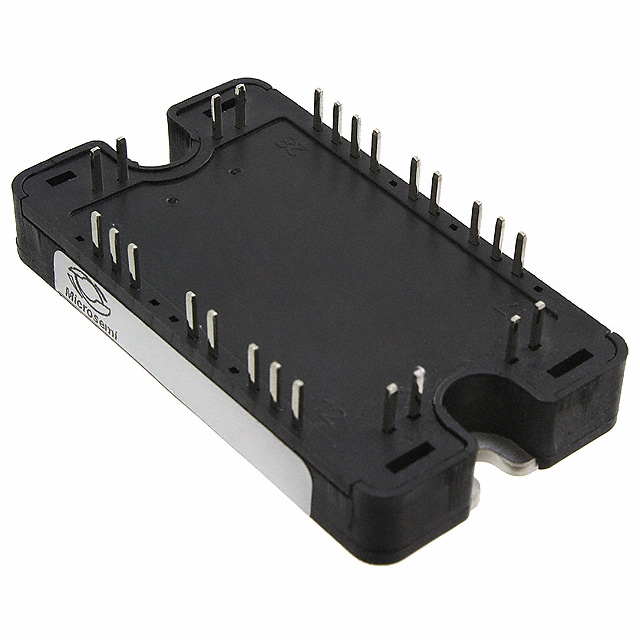

What is an IGBT Module?

An IGBT functions primarily as an electronic switch. When a voltage is applied to the gate terminal, it enables current to flow between the collector and emitter terminals. This ability to switch on and off quickly is  makes IGBTs highly valuable in power electronics applications, such as inverters.

What Does an IGBT Module Do?

An IGBT module plays a key role in power conversion systems by rapidly switching electrical power on and off, enabling precise control over the flow of electricity. This switching function is vital for inverters, which convert DC into AC power efficiently.

Here are some specific functions of an IGBT module in an inverter:

1. Energy Conversion: The rapid switching of the IGBT module allows it to convert DC power from sources like batteries or solar panels into AC. This conversion is essential for powering AC devices or supplying energy to the grid.

2. Efficiency Optimization: IGBT modules are designed to reduce energy losses during switching. They combine the high input impedance of MOSFETs with the low on-state power loss of BJTs, maximizing energy conversion while minimizing heat loss.

3. Thermal Management: Built to handle high power and temperatures, IGBT modules are often equipped with cooling mechanisms to effectively manage heat, ensuring stable performance under heavy load conditions.

4. Voltage and Current Control: IGBT modules help maintain a consistent output voltage and current in inverters, even with fluctuating input power or load. This is achieved through adjustments in switching frequency and duty cycle.

5. Protection Features: Modern IGBT modules come with built-in safeguards such as overcurrent, short-circuit, and thermal protection, enhancing the reliability and safety of the inverter system.
