Introduction Of Programmable unijunction transistors (PUTs)

Programmable unijunction transistors (PUTs) are a relative of Silicon Controlled Rectifier (SCR) devices, having a characteristic behavior somewhat like a unidirectional DIAC with a user-configurable threshold voltage. While useful for creating low-frequency oscillator and timing functions, SCR triggering applications, and others, alternative techniques for addressing such needs have gained greater favor.

PUTs Key Features:

Programmability: PUTs can be programmed to specific operating conditions, increasing their adaptability to various applications such as oscillators, timers, and signal generators.

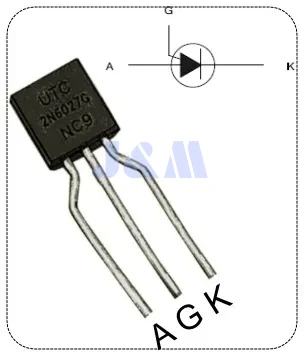

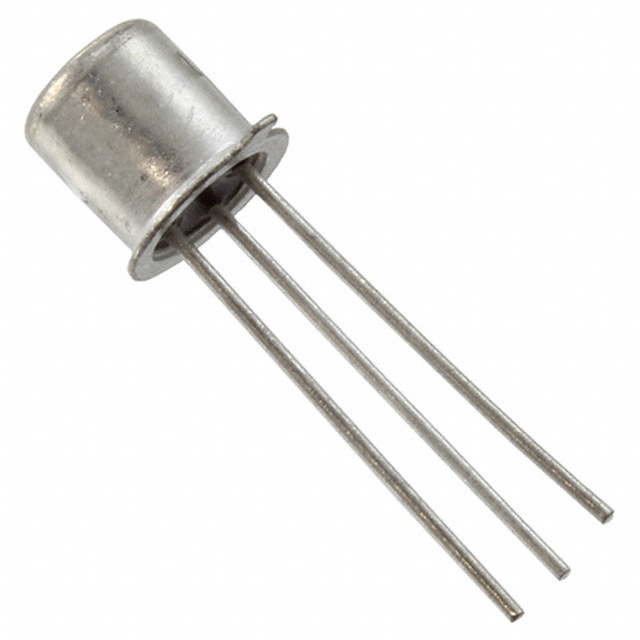

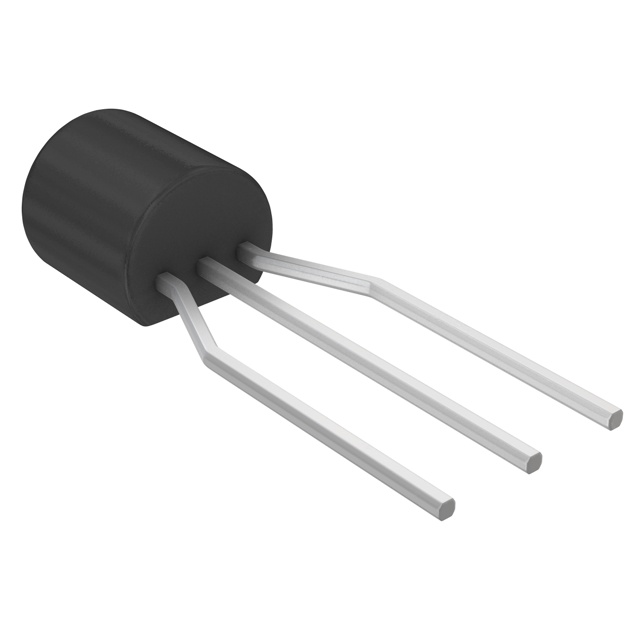

Simple structure: They typically have a simple three-terminal structure consisting of an anode, gate and cathode. This simplicity allows for easy integration into circuits.

Negative resistance region: Similar to unijunction transistors, PUTs exhibit negative resistance characteristics that are useful for generating oscillations and triggering events.

Low power consumption: PUTs operate at low power levels, making them suitable for battery-powered devices and energy-efficient applications.

PUTs Applications:

Oscillator circuits: Because of their ability to generate repetitive signals, PUTs are often used in oscillators.

Timing circuits: Used in timing applications where precise timing intervals are required.

Pulse Generators: PUTs can generate short pulses to trigger other devices in electronic circuits.
