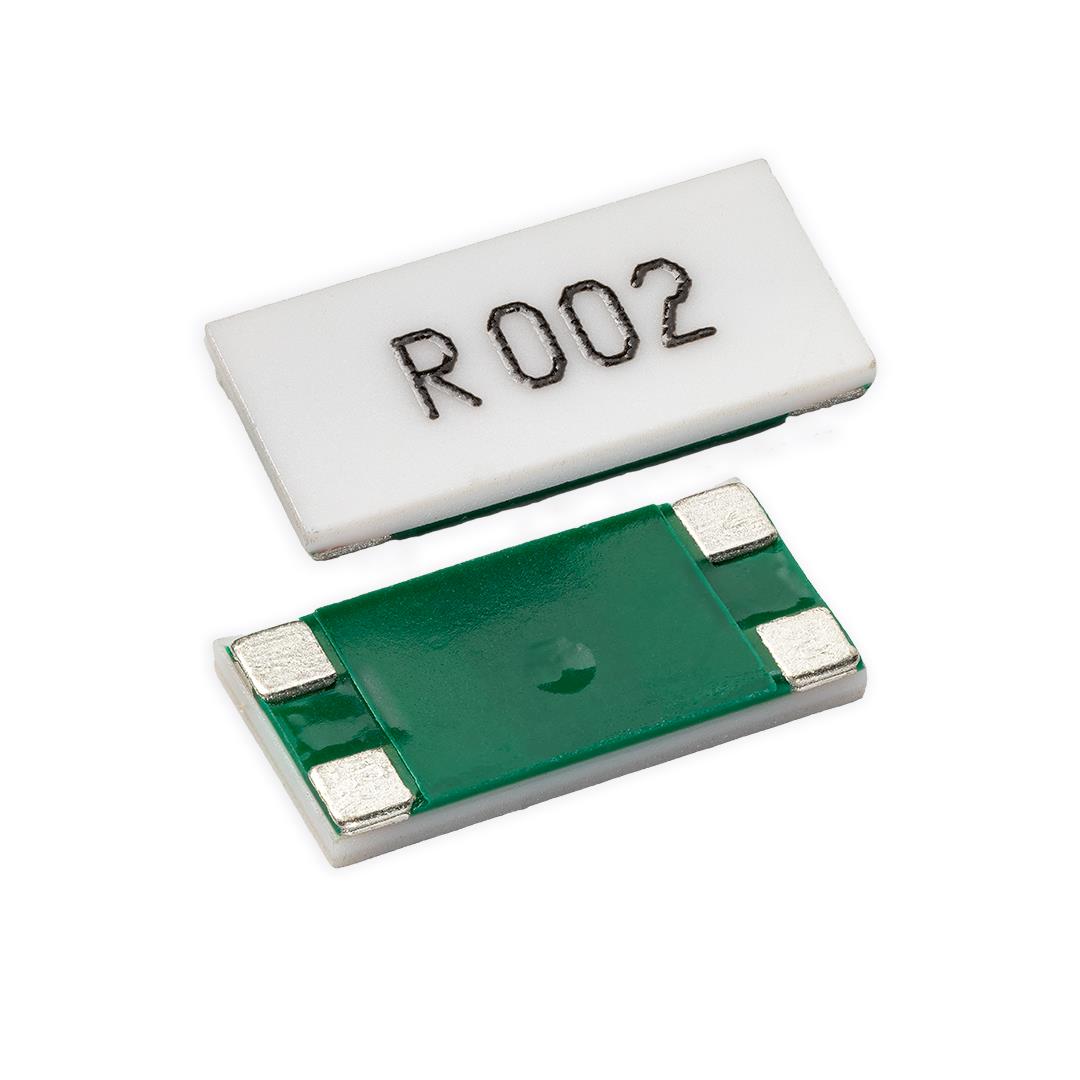

What Are Surface Mount Chip Resistors?

Surface Mount Chip Resistors are leadless electronic components intended for direct mounting on the surface of a Printed Circuit Board (PCB). Known for their compact and lightweight design, these resistors are ideal for high-density circuit layouts and mass production. Typically produced using thick-film or thin-film technology, they come in various power ratings, accuracies, and temperature coefficients to cater to a wide range of application needs.

Surface mount resistors are usually constructed from a ceramic substrate, like alumina, with a thin-film or thick-film resistive element applied to the surface. This resistive element is safeguarded by a passivation layer, and metal contacts are included to connect the resistor to the PCB. SMD resistors are available in various sizes, referred to as packages, indicated by a three- or four-digit code that represents their dimensions in tenths of millimeters or hundredths of inches. Common sizes include 0603 (1.6mm x 0.8mm), 0805 (2.0mm x 1.25mm), and 1206 (3.2mm x 1.6mm).

Advantages of Surface Mount Resistors

Size and Weight: SMD resistors are more compact and lighter than their through-hole counterparts, facilitating the creation of smaller and lighter electronic devices.

PCB Density: Surface mount resistors allow for greater component density on PCBs, increasing functionality within limited space.

Assembly Efficiency: These resistors can be positioned using automated pick-and-place machines, enhancing the assembly process and lowering production costs.

Improved Performance: SMD resistors exhibit lower parasitic inductance and capacitance, leading to superior high-frequency performance compared to through-hole resistors.

Applications

Surface mount resistors are commonly found in a variety of applications, ranging from consumer electronics such as smartphones and laptops to automotive, aerospace, and industrial systems. They play a crucial role in controlling, regulating, and shaping electrical signals, while also offering protection for other components within the circuit.
