Overview of RF Modulators

RF modulators, referred to Radio Frequency modulators, are electronic devices that encode information onto a sinusoidal carrier signal by altering the carrier's amplitude, phase, and/or frequency. They are crucial in RF technology and design, enabling the transmission of multiple messages over a single communications channel without interference.

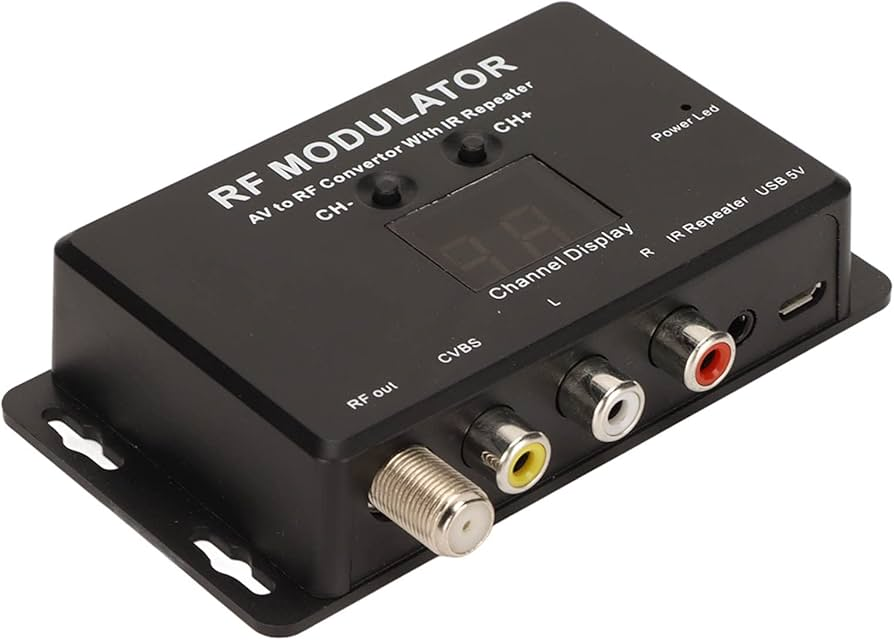

RF modulators

Applications of RF Modulators

Home Electronics: Integrating with devices like VCRs, DVD players, media players, and game consoles.

Broadcast Settings: Professional broadcasting environments use more sophisticated modulators for high-quality signal transmission.

Military and Aviation: Radar systems and communication with flights require RF modulation.

Advantages of RF Modulators

Signal Conversion: Converting baseband signals from devices to a format compatible with RF receivers like radios and televisions.

Multiplexing Capability: Allowing simultaneous transmission of multiple messages over a single channel.

Versatility: Operating on different channels depending on the region, making them suitable for global use.

Integration: Easily integrated into various home electronics for convenient signal management.

Specifications of RF Modulators

Modulation Types: Digital modulation (e.g., PSK) and analog modulation techniques (e.g., AM, FM, PM).

Input: Baseband signal.

Output: Modulated RF signal.

Channel Operation: Varies by region.

Features of RF Modulators

Three-Port Design: Consisting of intermediate frequency (IF), radio frequency (RF), and local-oscillator (LO) ports.

Modulation Methods: Continuous wave modulation and pulse modulation.

Nonlinearity Devices: Often use Schottky diodes, FETs, or other transistors for nonlinear operations.

Performance: High-performance mixers may utilize multiple diodes for improved functionality.

Frequently Asked Questions

What is an RF modulator used for?

RF modulators are used to alter signals from devices such as VCRs, DVD players, media players, and game consoles to a format that can be handled by a device designed to receive a modulated RF input, such as radio and television receivers.

What are the different types of RF modulators?

RF modulation types can be categorized into digital modulation and analog modulation techniques. Continuous wave modulation, such as AM, FM, and PM, alters the characteristics of a continuous carrier wave. In contrast, pulse modulation, such as PAM, PWM, and PPM, discretizes the analog signal into pulses.

Is an RF modulator the same as a digital converter?

No, an RF modulator is not the same as a digital converter. A digital converter converts digital signals for use with contemporary TVs between various formats, such as coaxial and HDMI. An RF modulator can be considered an adapter plug, while a digital converter is an electronic device voltage converter.

How do RF modulators work?

RF modulators work by integrating a signal with another wave of a higher frequency, reducing attenuation during transmission and increasing the range. They take the signal to be modulated as input, amplify it using a low noise amplifier, and then mix it with a radio frequency wave in a mixer to generate the modulated signal.
