RF Power Dividers/Splitters are essential components in RF (Radio Frequency) and microwave systems, designed to distribute an incoming signal into two or more outputs (or vice versa). They are commonly used in applications such as telecommunications, broadcasting, radar, and wireless communications.

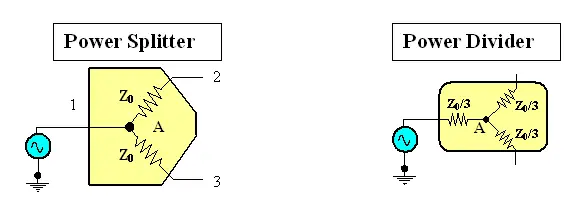

RF Power Dividers/Splitters

Key Functions:

• Signal Splitting/Combining: The primary function of an RF power divider is to split a signal from a single source into two or more equal or unequal parts, with minimal loss of power. An RF combiner works in the opposite direction, combining signals from multiple sources into a single output.
• Maintaining Impedance: Power dividers/splitters are designed to maintain the characteristic impedance of the system (typically 50 ohms), ensuring that there is no signal reflection and that maximum power transfer occurs between components.

Types of RF Power Dividers/Splitters:

1. Symmetrical Power Dividers: These dividers split the input signal into equal parts. For example, a 2-way symmetrical splitter divides the signal into two equal parts, each with half of the power. The most common types are:
2. Unequal Power Dividers: These allow for the splitting of signals into unequal power levels. They are used when different output power levels are required for various components or antennas.
3. Hybrid Couplers: These are special types of power dividers that can provide 90° or 180° phase shifts between output ports. Hybrid couplers are often used in applications where maintaining specific phase relationships is crucial, such as in phased array antennas or balanced mixers.

Key Parameters:

• Insertion Loss: Insertion loss is the amount of power lost when the signal passes through the power divider. Low insertion loss is crucial for maintaining signal strength and ensuring efficient power distribution.
• Isolation: This refers to the ability of the divider to prevent signals from leaking between output ports. High isolation ensures that each output port operates independently without interference from the other outputs.
• VSWR (Voltage Standing Wave Ratio): A measure of how well the power divider matches the impedance of the system. A lower VSWR value indicates better matching and less signal reflection.
• Frequency Range: RF power dividers are designed to operate over a specific frequency range, which can vary from a few MHz to GHz. The frequency range determines their applicability in different RF and microwave systems.

Applications:

• Antenna Systems: In wireless communication, RF power dividers are used to distribute signals to multiple antennas in phased array systems or MIMO (Multiple Input Multiple Output) antennas.
• Signal Distribution: In broadcast systems, RF power dividers are used to distribute a single transmitter’s signal to multiple receivers or antennas.
• Test Equipment: RF power dividers are used in testing and measurement applications where signals need to be distributed to multiple test instruments.
• Radar and Communication Systems: Power dividers are used in radar systems for distributing signals to multiple channels or processing units, ensuring accurate data collection.
• Telecommunications: In cellular base stations or Wi-Fi networks, RF power dividers distribute signals to multiple paths to ensure coverage or load balancing.

Design Considerations:

When selecting or designing RF power dividers, the following factors must be considered:

• Power Handling: The divider must be capable of handling the required power levels without overheating or causing damage.
• Frequency Response: It should be suitable for the operating frequencies of the system, whether in the low-frequency RF range (e.g., FM radio) or high-frequency microwave applications.
• Size and Form Factor: The physical size of the divider may need to fit specific system designs, especially for compact or portable devices.
• Cost vs. Performance: Higher performance components like those with low insertion loss and high isolation tend to be more expensive, so a balance must be struck based on the application needs.

In summary, RF power dividers/splitters play a crucial role in distributing RF signals across multiple paths in a wide range of communication, radar, and broadcast systems, ensuring optimal signal strength, isolation, and power distribution.
