Description of RF transmitters

RF Transmitters are used to send a radio frequency signal and modulate that signal to carry data from a system. The process of RF transmission involves the propagation of radio frequency waves from a transmitting antenna towards a receiving antenna, which is connected to the receiver, the final link in the wireless communication chain. The receiver captures the incoming signal from its antenna and then decodes the modulated signals, preparing them for further processing.

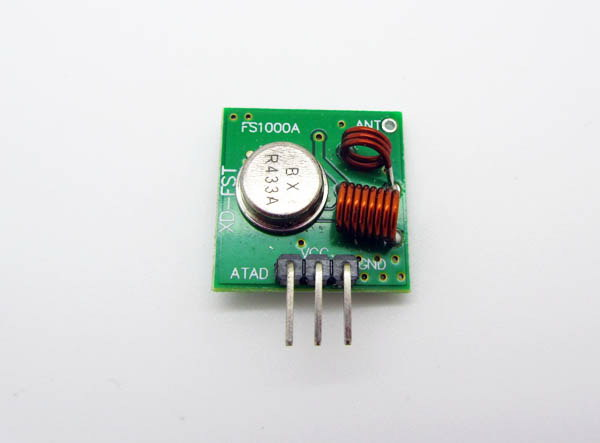

RF Transmitter

Applications of RF transmitters

RF Transmitters find extensive use across a variety of industries and applications. Typically, devices that are employed in conjunction with integrated circuits incorporate advanced manufacturing techniques such as Surface Mount Technology (SMT), flat pack designs, and Through Hole Technology (THT). Within the telecommunications sector, these RF transmitters are specifically engineered to be compatible with metal racks, which are often housed within cabinets, ensuring seamless integration into existing infrastructure.

Frequently Asked Questions

How do I know if my RF transmitter is working?

To determine if your RF transmitter is functioning properly, you can perform a simple test by following these steps:

1. Place the Antenna Near a Noise Source: Position the antenna close to a device known to emit electromagnetic signals, such as a computer monitor, a motor, a wireless access point, or the WiFi antenna of your laptop, or any other radio transmitter you are certain is operational.
2. Compare the Signal: Next, move the antenna in proximity to your RF transmitter.
3. Initiate Transmission: Attempt to transmit a signal using your RF transmitter.

By observing the antenna's response or the behavior of the devices when the antenna is near them, you can gauge whether your RF transmitter is effectively broadcasting signals. If there is a noticeable change or interaction with the devices when the antenna is near your transmitter, compared to when it's near known noise sources, this could indicate that your RF transmitter is working.

What is the difference between RF transmitter and receiver?

The distinction between an RF transmitter and a receiver lies in their roles within the communication process:

RF Transmitter: This device is responsible for emitting radio frequency signals, which are a form of electromagnetic waves, into the air or space through the use of an antenna. It serves as the origin point for the transmission of information across a wireless medium.

RF Receiver: On the other hand, the receiver is designed to capture these transmitted signals using its own receiving antenna. It then processes the incoming signals, allowing users to select and access the specific signal they intend to use. The receiver acts as the endpoint for the reception of information in a wireless communication system.
