What is RJ45 connector?

RJ45 network connectors are commonly located at both ends of an Ethernet (wired internet) connection. At first glance, they may resemble the familiar telephone plugs and jacks used for landline connections, but RJ45 connectors are generally slightly larger.

Today, the term RJ45 connector is often used to refer to both male RJ45 plugs and female RJ45 sockets. The plugs, also known as modular connectors, are typically found at the ends of Ethernet cables, while the sockets or jacks are usually built into the devices being connected or mounted on fixed wall panels.

RJ45 Connector Pinout

The RJ45 connector is a modular 8-position, 8-pin connector designed for terminating Cat5e or Cat6 twisted pair cables. A pinout refers to the specific arrangement of wires that determines how the connector is terminated. There are several pinout configurations for RJ45 connectors, including straight-through (T568A or T568B), crossover, rolled, T1, and loopback. The straight-through configuration is the most common and is typically used to connect a computer to a network. The other pinouts are intended for specialized cables used in specific networking applications.

Regarding straight-through wiring, there are two recognized standards by ANSI, TIA, and EIA: T568A and T568B. T568B has become the more widely adopted standard and is now considered the default wiring scheme for structured cabling with twisted pairs. If you're uncertain which standard to choose, it's advisable to go with T568B.

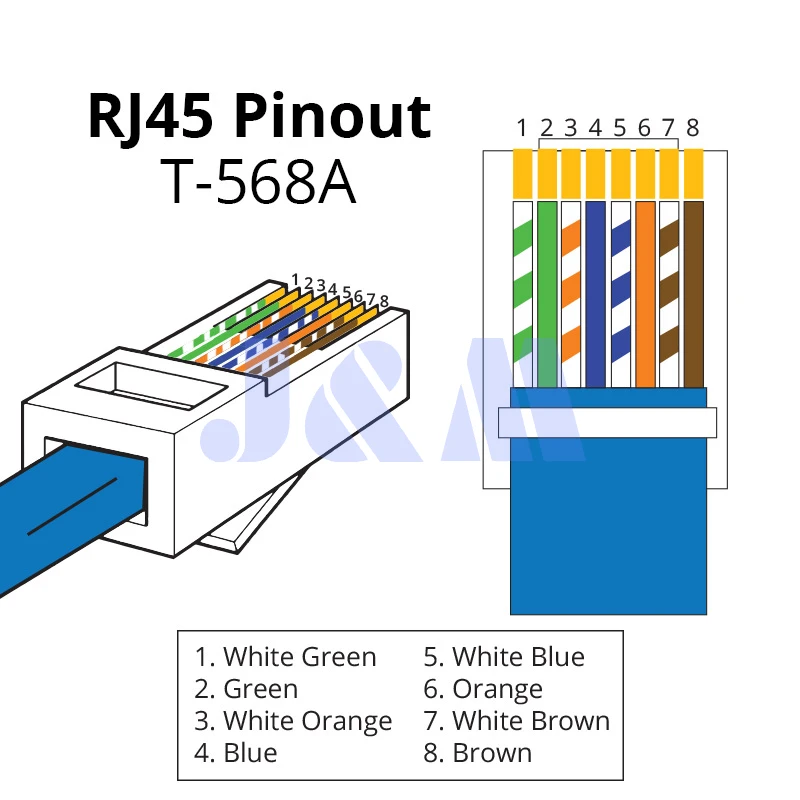

T-568A RJ45 Pinout

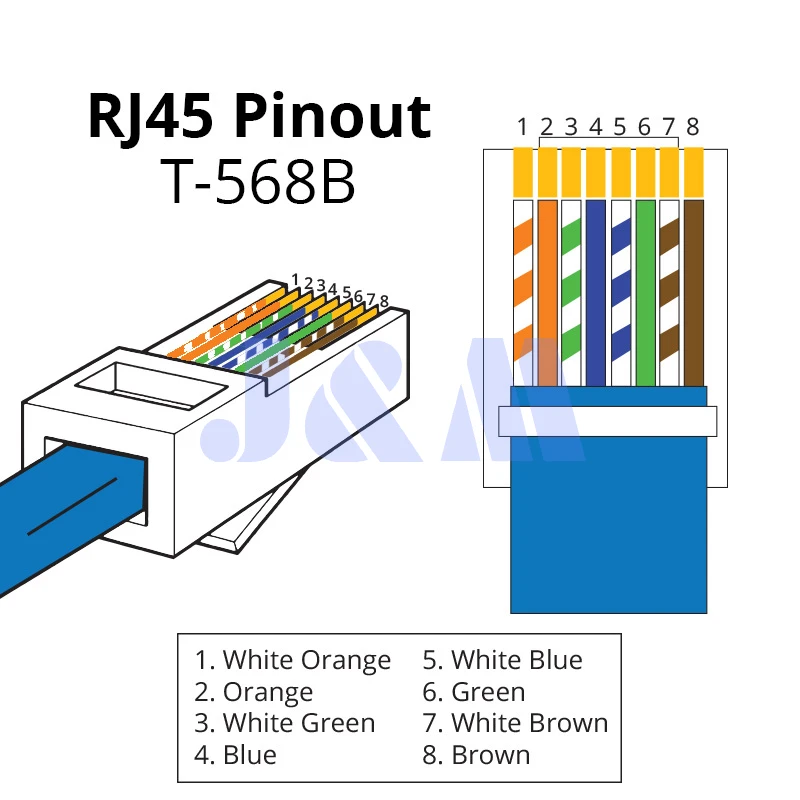

T-568B RJ45 Pinout

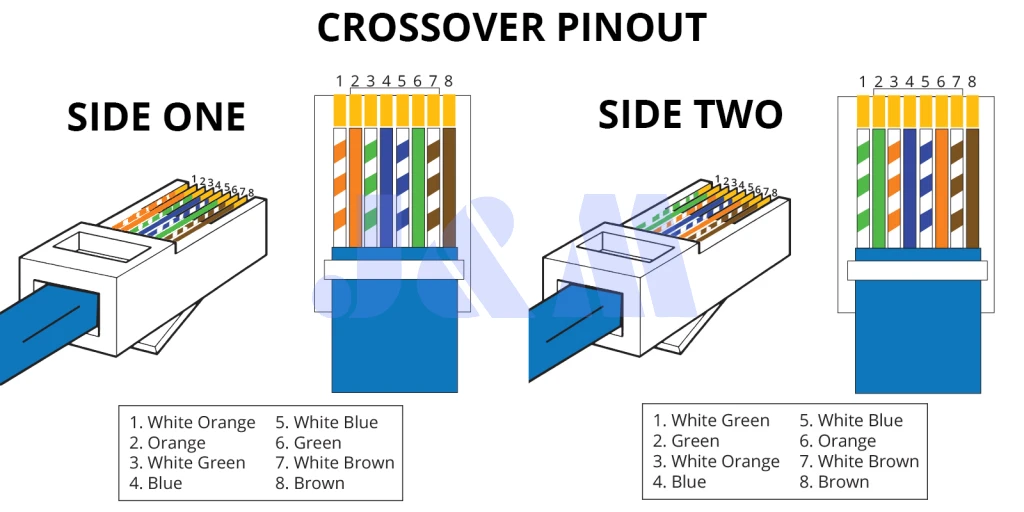

Cross Over Pinout

A crossover cable features two distinct RJ45 pinouts on each end. It is useful for connecting devices with 568A wiring to those with 568B wiring.

At present, the main categories of RJ45 connectors are as follows:

Category of RJ45 Connector

The choice of an RJ45 connector is determined by the network cable used; it is essential that the connector matches the cable's grade and performance to ensure optimal performance and compatibility in network applications.

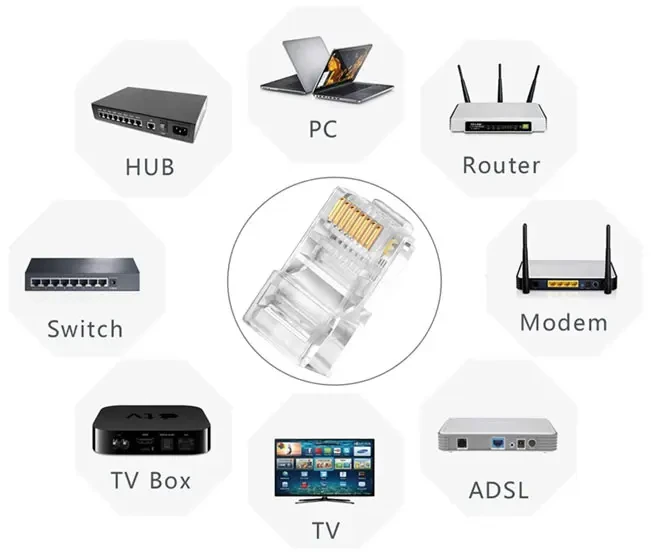

Application of RJ45 Connectors

The RJ45 connector serves as a standard interface that is essential for optimal connection performance in network transmission. High-quality RJ45 connectors help minimize signal loss and interference, enabling high-speed data transfer. They are widely utilized in networking and communication applications.

Advantages and Disadvantages of RJ45 Connectors

Advantages

Reliability: RJ45 connectors ensure a stable and secure connection, promoting consistent data transmission with minimal interference or signal degradation.

Speed: These connectors facilitate high-speed data transfer, making them suitable for modern Ethernet standards like Gigabit and 10 Gigabit Ethernet.

Bandwidth: RJ45 connectors can support data rates of up to 100 Mbps.

Versatility: Widely used and standardized, RJ45 connectors are compatible with a vast array of devices and networking equipment.

Ease of Use: The design features a locking latch and a simple crimping process, making RJ45 connectors user-friendly for both professionals and DIY enthusiasts.

Cost-Effective: Generally affordable, RJ45 connectors and Ethernet cables offer an economical solution for establishing and maintaining wired networks.

Disadvantages

Limited Mobility: Unlike wireless connections, RJ45 connectors necessitate physical cables, which can limit the mobility of connected devices.

Compatibility: RJ45 connectors may face compatibility issues with other types, as different cable categories require specific RJ45 variants.

Installation Complexity: Although crimping RJ45 connectors isn't overly challenging, it demands specific tools and a basic grasp of wiring standards, which can deter some users.

Susceptibility to Damage: Ethernet cables and connectors are vulnerable to physical damage, such as bending or crushing, which can affect network performance.

Troubleshooting RJ45 Connections

Despite proper crimping and color coding, issues can still occur. Common problems include loose connections, incorrect pin layouts, and damaged cables. Here are some troubleshooting tips:

Check Connections: Make sure the connector is securely inserted into the port and that the latch is properly engaged.
Verify Pin Layout: Double-check the pin configuration to confirm that the correct wiring standard (T568A or T568B) has been used.
Inspect Cable: Examine the cable for any visible damage that could impact performance.

Design and Product Selection Considerations

When designing products or systems with RJ45 connectivity, it's essential to ask and answer several key questions. Here are some important factors to keep in mind:

What cable lengths will be needed?

Should we use shielded connectors?

Are integrated magnetics or board-mounted modules preferred?

Which pinout protocol is optimal for the design?

Will the system support Power over Ethernet (PoE)?

Do we need rugged or high-reliability devices?

Will the product be exposed to high levels of EMI or ESD?

What data transfer speed is required?

What is the necessary bandwidth?

Conclusion

Grasping the concept of an RJ45 connector, along with its components and functionality, is crucial for anyone working in networking. These connectors provide reliable connections and facilitate efficient data transmission, making them the backbone of wired networks. Whether you're establishing a home network or overseeing enterprise-level infrastructure, mastering RJ45 connectors is vital for ensuring robust and effective network communications.
