What is a Spade Connector?

A spade connector, also referred to as a spade terminal or fork terminal, is a common type of electrical connector used in audio systems, automotive wiring, and various other applications. It features a flat, spade-shaped metal blade or tongue that is crimped onto a wire, enabling easy and secure attachment to a terminal block or binding post. This design allows for quick installation and removal without soldering, making spade connectors an ideal choice for applications that require frequent adjustments or replacements.

Spade connectors are available in different sizes to accommodate various wire gauges and come in both insulated and non-insulated types. The insulated versions offer additional protection against electrical shock and short circuits, while the non-insulated types are suitable for applications with limited space. The fork-like design facilitates easy insertion and removal from screw terminals, ensuring a reliable and convenient electrical connection.

Typically made from materials like copper, brass, or tin-plated metal, these connectors provide excellent conductivity and corrosion resistance. The variety of sizes and materials available makes spade connectors versatile and adaptable for diverse electrical and electronic systems.

In summary, a spade connector is a practical and efficient electrical component designed to simplify the process of connecting and disconnecting wires across a wide range of applications. Its fork-like shape, range of sizes, and material options make it a valuable addition to electrical installations and repairs.

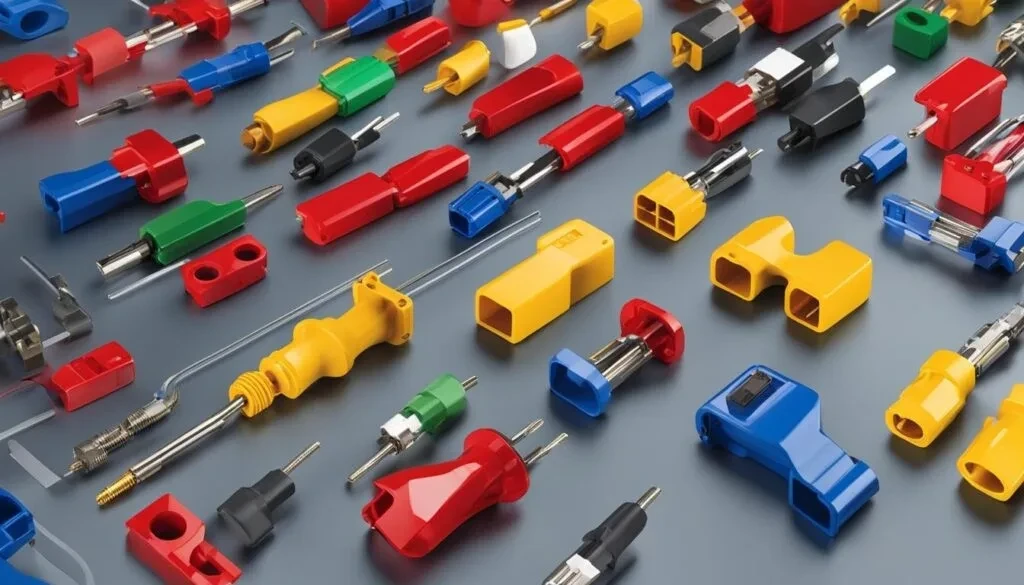

Types of Spade Connectors

When selecting electrical connections, various types of spade connectors are available, each tailored for specific applications and requirements. Knowing the different types can help you choose the right one for your project. Here are some common types:

Standard Spade Connectors: These are widely used in low-power applications where a secure connection is necessary. They come in various sizes to accommodate different wire gauges.

Power Spade Connectors: Built for higher power loads, these connectors offer improved conductivity and durability, making them suitable for higher amperage requirements.

Quick Connect Spade Connectors: Ideal for situations needing rapid connections, these connectors feature a snap-on design for quick installation and removal.

Polarized and Non-Polarized Spade Connectors: Polarized connectors ensure correct polarity in connections, while non-polarized connectors can be used without polarity concerns, preventing accidental reversals.

Wire Lacing Spade Connectors: Designed for wire management, these connectors include a lacing hole for securely bundling and organizing wires.

Flag Terminal Spade Connectors: With a distinctive flag-shaped design, these connectors are easy to insert into terminals with limited space, often used for different signal and power levels.

Flexible Spade Connectors: These connectors have a flexible body, allowing for quick connections and disconnections, making them ideal for applications requiring frequent reassembly.

Crimp Spade Connectors: Providing secure electrical connections, these are designed to be crimped onto wires, forming a strong bond capable of withstanding vibrations and other stresses.

Piggyback Spade Connectors: Allowing multiple components to connect to a single terminal, these connectors feature a secondary spade that can be stacked onto the primary one for convenient multiple connections.

By understanding these various spade connector types and their distinct features, you can select the most suitable connector for your electrical needs, ensuring safe and reliable connections.

How to Use Spade Connectors

Learning to use spade connectors correctly is crucial for ensuring safe and reliable electrical connections. Here are detailed steps to effectively use these connectors in various applications:

Choose the Right Spade Connector: Select a spade connector that matches the wire gauge and fits the terminal or screw size. Consider the environmental conditions to determine if insulated connectors are necessary for added safety or heat shrink connectors for waterproofing.

Prepare the Wire: Carefully strip the wire insulation to reveal the conductor without damaging the strands. Use a wire stripper to remove about 1/4 inch of insulation, ensuring that the exposed wire matches the size of the crimp barrel.

Insert the Wire: Insert the stripped wire into the barrel of the spade connector until the insulation reaches the edge of the barrel. Make sure all wire strands are fully enclosed within the barrel.

Crimp the Connector: Place the connector's barrel in the crimping tool and firmly squeeze to compress the barrel around the wire. For insulated connectors, if the tool allows, crimp both the metal barrel and the insulation.

Connect to the Terminal: Position the spade end of the connector onto the terminal and tighten the screw or nut to secure it in place. Ensure it fits snugly and doesn’t easily slide off. For added stability, you may also secure the connection with a screw.

Test the Connection: Use a multimeter to check for continuity and confirm that the connection is good. Power up the circuit to ensure proper operation.

Apply Insulation (Optional): Slide heat shrink tubing over the connection and apply heat to shrink it down. Alternatively, you can wrap electrical tape around the connection for additional protection.

Applications of Spade Connectors

Spade connectors are commonly used across various industries due to their versatility, ease of use, and reliability. Here are some typical applications of spade connectors:

Automotive Wiring: Spade connectors are often used in automotive wiring to connect electrical components like speakers, radios, and lighting systems. Their quick-disconnect feature and compatibility with different wire gauges make them ideal for automotive installations and repairs.

Audio Systems: In audio equipment, spade connectors are frequently employed to connect speakers and amplifiers. Their secure attachment to binding posts and terminals ensures a stable electrical connection, enhancing the overall performance of audio systems.

Industrial Machinery: Spade connectors are widely utilized in industrial machinery and equipment to connect control circuits, sensors, and power distribution components. Their durability and ability to withstand mechanical stress and vibration make them suitable for demanding industrial settings.

Electrical Panels and Control Systems: In electrical panels and control systems, spade connectors are used to connect wires, terminal blocks, and control devices. Their quick installation and removal capabilities facilitate efficient wiring and maintenance in automation and control applications.

Home Appliances: Various home appliances, such as ovens, refrigerators, and washing machines, incorporate spade connectors for electrical connections that require straightforward installation and dependable performance. Insulated spade connectors are often preferred for added safety.

Marine and Recreational Vehicles: In marine and recreational vehicle applications, spade connectors connect electrical components in environments where moisture and vibration resistance are essential. Their versatility makes them suitable for diverse marine and recreational vehicle electrical systems.

These varied applications highlight the importance of spade connectors in providing secure, efficient, and adaptable electrical connections across a wide range of settings, from consumer electronics to industrial machinery.
