What Are Resonators?

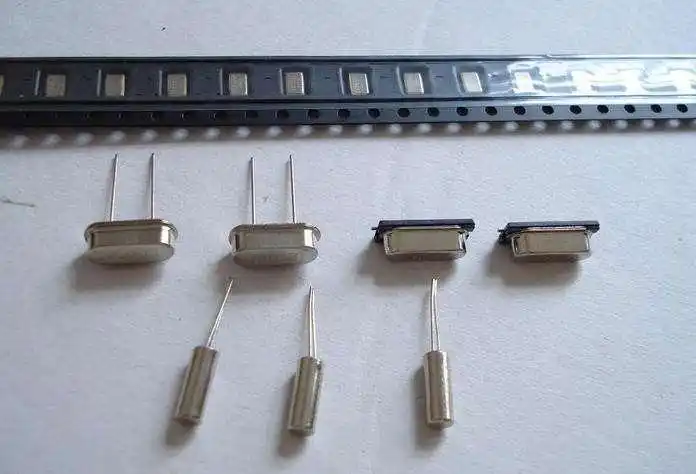

A resonator is an electronic component that produces a resonant frequency. Common types include quartz crystal resonators and ceramic resonators. They are used in various electronic products because of their stability and good immunity to interference. Quartz crystal resonators' frequency accuracy is higher than ceramic resonators, but their cost is also higher. Resonators are mainly responsible for frequency control, and almost all electronic products need resonators for frequency transmission and reception. Based on their appearance, resonators can be classified as inline or SMD.

Quartz crystal resonators, referred to as quartz crystals or crystal oscillators, are passive electronic components that use the piezoelectric effect of quartz crystals to generate high-precision oscillation frequencies. Its main components include a quartz wafer, base, case, silver glue, and silver. Depending on the lead wires, quartz crystal resonators are divided into two types: direct insertion (with lead wires) and surface mount (without lead wires).

The application of mechanical force to certain dielectrics induces a relative displacement of the positive and negative charge centers therein, resulting in polarisation and the formation of bonded charges with opposite signs on the surfaces of the dielectric ends. The phenomenon of a linear and reversible relationship between mechanical force and polarization over a range of stresses is known as the piezoelectric effect.

How Does a Resonator Work?

A resonator works by vibrating at specific frequencies, enhancing certain sound waves while dampening others. It typically consists of a cavity that can be tuned to resonate at particular frequencies, allowing it to amplify sound when driven by an external force, like a musical instrument or sound wave. This principle is used in various applications, from musical instruments to electronic circuits, to create desired sound characteristics or signal processing effects.

Main Types of Resonators

Quartz Resonators

Quartz resonators are widely used in timing and frequency control equipment because of their high accuracy and stability. They are commonly used in watches, computers, and communication devices.

Radio Frequency Resonators (RF Resonators)

Designed for wireless communication systems, RF resonators are capable of handling high-frequency signals. These resonators play a vital role in smartphones and wireless sensor networks.

Tuned Fork Resonators

Tuned Fork Resonators are widely used in consumer electronics, especially in audio devices and microcontrollers due to their simple structure and cost-effectiveness.

Surface Mount Resonators

As modern electronic designs move towards miniaturization and high performance, surface mount resonators have become the first choice for many new products. The design of these resonators makes them easy to integrate into compact circuit boards.

Resonator Principle of Operation

The operating principle of a resonator is based on its inherent resonant frequency. When an external signal is applied to a resonator, it resonates at a specific frequency, thus enhancing the signal output at that frequency. This characteristic makes resonators ideal for frequency selection and signal filtering in electronic devices.

Application Areas

Applications for resonators cover a wide range of fields, including but not limited to:

• Timekeeping devices: In watches and electronic clocks, quartz resonators provide an accurate time reference.
• Communication systems: RF resonators ensure stable signal transmission in mobile phones, radio, and satellite communications.
• Audio Processing: Tuned fork resonators are used for signal tuning and processing in audio equipment.
• Microcontrollers: Surface mount resonators provide stable clock signals for microcontrollers to ensure efficient operation.

Frequently Asked Questions about Resonators

1. Which is better, a muffler or a resonator?

They are both part of the exhaust system, so there is no better or worse. They serve different purposes, but both change the sound of the exhaust. A muffler regulates the volume, while a resonator changes the pitch.

2. Difference between Crystal Resonator and Crystal Oscillator

• The price of a crystal oscillator is usually higher than that of a crystal resonator.

• Crystal oscillator parameters have voltage units, while crystal resonator parameters do not have voltage units.

• Crystal oscillator pins are all 4 pins or more. Crystal resonators are usually 2 or 4 pins, there are no crystal resonators with 4 or more pins.

• The height of the crystal oscillator is usually higher than the height of the crystal resonator.

• Crystal oscillators will not be made of ceramic material because ceramic material does not have enough stability compared to quartz material and the accuracy is much lower than quartz material. Crystal resonators are made of both quartz and ceramic materials. What we usually call ceramic resonator is one of the crystal resonators. Among ceramic resonators, Murata crystal oscillators have the best stability and reputation.

• Crystal oscillators and crystal resonators do not have the same nature of operation. A crystal oscillator can start to oscillate on its own without the help of an external component because the crystal oscillator has an internal oscillator chip. A crystal resonator requires an external component to start the oscillation.

3. Which type of circuit is used in the oscillator?

Oscillators can be classified into two main types: Harmonic Oscillators and Crystal Oscillators. Harmonic or linear oscillators generate a sinusoidal output, with the signal rising and falling predictably over time. The two primary types of circuits used for these oscillators are RC (resistor-capacitor) circuits and LC (inductor-capacitor) circuits.

4. How Resonators Reduce Noise

When resonators are added to the exhaust system, they help reduce noise by targeting specific sounds. They make the car quieter by focusing on certain frequencies that are louder for the human ear to hear.

Resonators act like special filters. They pick out problem sounds and eliminate them. This results in a smoother, less harsh car engine noise.

Resonators are designed to help reduce engine noise in the most noticeable frequency range. This means you can enjoy a more pleasant driving experience without being bothered by shrill noises.

By eliminating these specific sounds, the resonator makes the engine sound smoother. With a resonator, your car's exhaust sound will be quieter and more pleasing to the ear.

Summary

Resonators play an important role in the electronic components industry. By understanding the different types of resonators and their applications, designers can better select the right solution for their projects.

Hopefully, through this article, you have gained a better understanding of resonators and will be able to choose the right components for your project. If you have any questions or need more information, you can contact JMChip directly.
