What Does a Switch Represent?

A Switch is a piece of equipment that is crafted to stop the flow of electricity in a circuit. In straightforward terms, a Switch can either connect or disconnect an electrical circuit. Every electrical and electronic application relies on at least one switch to carry out the activation and deactivation of the device. Therefore, switches are a vital component of the control system, and without them, achieving control would be impossible. A switch can accomplish two tasks: being fully ON (by closing its contacts) or fully OFF (by opening its contacts). When the contacts of a switch are closed, it forms a complete path for the current to flow, thereby enabling the load to use power from the source. When the contacts of a switch are open, no power is utilized by the load, as illustrated in the figure below.

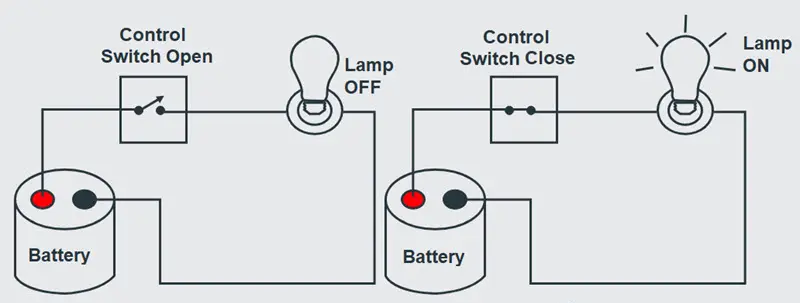

A basic electrical circuit diagram

Switches serve another vital purpose: they can change the direction of electric current in a circuit. Consider this example of a circuit. With the switch at location A, lamp 1 is activated, whereas at location B, lamp 2 is activated.

Switches have a multitude of applications across various sectors, including homes, vehicles, industry, defense, and aerospace, among others. In residential and office settings, we commonly use simple rocker switches to activate and deactivate devices such as lights, computers, and fans. In certain scenarios, multi-location control is utilized (as in building wiring), where two or more switches are linked to manage an electrical load from multiple spots, such as with a Two Way Switch, for instance.

Properties of Switches in Electrical Circuits

Switches, depicted in circuit diagrams as components that manage the flow of electricity, exhibit several key properties:

- Regulation of Electrical Current: The fundamental role of a switch is to regulate the passage of electrical current. When a switch is closed, it completes the circuit, allowing current to pass; conversely, when it is open, it interrupts the circuit, halting the flow of current.

- Voltage Separation: Switches can also serve to separate voltage in certain circuits, safeguarding the circuitry or equipment from the impact of excessive voltage levels.

- Diversity in Switch Types:There is a wide array of switch types available, such as mechanical switches, relays, transistor switches, and field-effect transistor (FET) switches. Each variant is suited to specific applications and comes with its own set of benefits and drawbacks.

- Bistability and Monostability: Switches can be either bistable, with two stable positions (on and off), or monostable, with a single stable position (typically off), necessitating an external stimulus to alter its state.

- Resistance at Contacts: In mechanical switches, contact resistance is the impedance between the points of contact when the switch is closed. Ideally, this resistance should be minimal to reduce power dissipation.

- Endurance:The endurance of a switch is measured by the number of times it can be switched on and off. High-quality switches generally exhibit greater endurance.

- Switching Speed:The switching speed of a switch is the time it takes to transition the circuit's state upon receiving a control signal. For circuits demanding swift responses, the switching speed is a crucial factor.

- Contact Materials:The material of a switch's contacts influences its performance, including endurance, contact resistance, and resistance to corrosion. Gold, silver, and copper are frequently utilized as contact materials in switches.

- Adaptability to Environments:Switches must function effectively under a variety of environmental conditions, such as varying temperatures, humidity levels, dust, and vibrations, thus requiring a degree of environmental resilience.

- Safety Considerations: Switch designs must incorporate safety features to prevent electrical shocks, short circuits, and other potential hazards.

Switches

Overview of Switch Configurations

Switches are divided into four main types based on their configuration: single pole single throw (SPST), single pole double throw (SPDT), double pole single throw (DPST), and double pole double throw (DPDT).

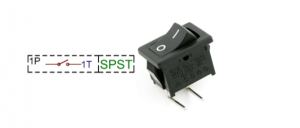

SPST (Single Pole Single Throw)

The SPST switch is a basic binary switch that serves as a straightforward power toggle. It is designed to interrupt or establish the electrical connection between a pair of terminals. Commonly, this type of switch is utilized to control the power supply to a device or circuit. The following is a depiction of an SPST switch.

SPST (Single Pole Single Throw)

SPDT (Single Pole Double Throw) Switches

SPDT switches, which are a type of electrical switch, come equipped with three terminals.In this configuration, one terminal serves as the input, while the other two function as output terminals. Among the two output terminals, one is connected to a common terminal. For SPDT switches, the common (COM) terminal is the one that is used in combination with the other terminals.

This means that you can use either the COM terminal with terminal A or terminal B. For example, you might connect COM with A or COM with B for your switching needs.

SPDT (Single Pole Double Throw) Switches

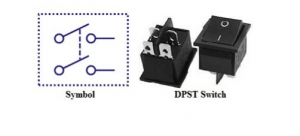

DPST (Double Pole, Single Throw) Switches

A DPST switch consists of two poles, which means it contains two identical switches positioned next to each other. This design allows for the control of two separate circuits simultaneously with a single action. Operating the switch with one toggle simultaneously regulates both circuits, providing a convenient way to manage power flow in dual-circuit setups.

DPST (Double Pole, Single Throw) Switches

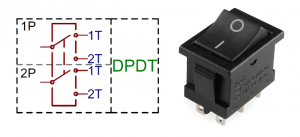

DPDT (Double Pole Double Throw) Switches

DPDT switches are designed to control the power state of two separate circuits simultaneously. They feature four terminals, with two dedicated to input and the other two to output. The primary application of these switches is to manage 240V appliances, which necessitate both power supplies to be active while also permitting a neutral wire to remain connected at all times. Upon activation of a DPDT switch, it permits the flow of electrical current through both connected circuits. Conversely, when the switch is in the deactivated state, the circuits are disconnected, preventing any current from flowing through them.

This type of switch is utilized for the activation and deactivation of two distinct circuits. It has four terminals, with two serving as inputs and the other two as outputs. The key role of the DPDT switch is to control 240V devices, requiring both power lines to be engaged while also maintaining a continuous connection with a neutral wire. Activating the switch connects the two circuits, while deactivating it halts the flow of current.

DPDT (Double Pole Double Throw) Switches

Frequently Asked Questions

1.Two characteristics of switches are:

A. Traffic Management: Switches manage network traffic by directing data packets to their intended destinations. They do this by examining the destination MAC (Media Access Control) address of incoming data packets and forwarding them only to the appropriate port connected to the destination device.

B. Collision Domain Reduction: Switches reduce the number of devices in a single collision domain, which can improve network efficiency. In a network without a switch, a single collision could affect the entire network, but switches allow for the segmentation of the network into multiple collision domains, meaning that a collision on one segment does not affect the others.

2.What are the characteristics of an ideal switch?

Ideal switches are characterized by having zero voltage drop and resistance in the on-state, and infinite resistance and zero leakage current in the off-state. Practical switches depart from these ideals, exhibiting finite voltage drop and resistance when on and nonzero leakage current when off.

3. Best Description of a Switch in Networking:

A switch in a network is a networking device that facilitates the direct communication between devices. It serves as a central hub where multiple devices can connect and exchange data. By examining the destination MAC address of data packets, the switch intelligently routes the packets to the correct device, ensuring efficient and organized data flow within the network.

4. Physical Description of a Switch:

A switch, in its most basic form, consists of two conductive pieces, typically made of metal, known as contacts. These contacts are connected to an external circuit and are designed to touch each other to complete the circuit, allowing the flow of electricity (make the circuit). When the contacts separate, they open the circuit, interrupting the flow of electricity (break the circuit). This simple mechanism is fundamental to the operation of many types of switches, including those used in electrical circuits and network devices.

5. How Switches Work:

Switches operate by creating or breaking the path for electric current to flow in a circuit. They can be in two states: open or closed. In an open state, there is a gap in the circuit, which interrupts the flow of electric charge, preventing the completion of the circuit and thus stopping the flow of electricity. This is akin to a door being closed, preventing passage. When the switch is in a **closed** state, the gap is eliminated, allowing the electric charge to flow freely through the circuit, which can light up a bulb or power an appliance. This is similar to a door being opened, allowing free passage.

6. How a Switch Works in a Circuit:

In a circuit, a switch functions by mechanically altering the electrical signal in response to an external force, such as manual operation or an automated trigger. The primary role of a switch is to control the flow of electricity by turning the circuit ON or OFF. When the switch is actuated, it physically moves the contacts to either connect or disconnect them, which in turn allows or prevents the flow of electricity through the circuit. This action can also be used to route electricity from one circuit to another, effectively switching the flow of current as needed.
