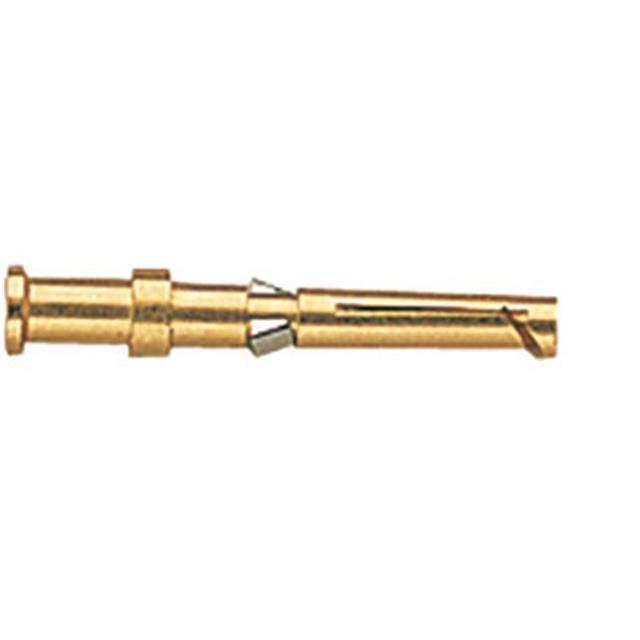

Model Information for 09060008482

Part Number: 09060008482

Details:

•Manufacturer: HARTING

•Product: DIN power female contacts - crimp

•Compliance:RoHS: CompliantLead-Free: YesUL File Number: 102079

•Design Standard: IEC 60603-2

•Contact Material:Base Material: Copper alloyPlating: Au over PdNi over Ni

•Electrical Characteristics:Contact Resistance: max. 20 mΩInsulation Resistance: min. 10 GΩ

•Mechanical Characteristics:Insertion and Withdrawal Force:24-pole max. 37N32-pole max. 50N48-pole max. 75NMating Cycles:PL1: 500 cycles (according to IEC 60603-2)PL2: 400 cycles (according to IEC 60603-2)

•Temperature Range: -55°C to +125°C

•Installation:Crimp Contacts: Use crimping tools or automatic crimping machines to attach wires to contacts. Contacts should be correctly oriented and inserted into the connector housing.Removal: Use a removal tool to compress the contact retaining spring and withdraw the contact by pulling the wire.

•Wire Specifications:Type FC 1: Wire gauge 0.09 - 0.25 mm² (AWG 28 - 24), Insulation 0.7 - 1.5 mm, Tensile strength 11 - 28 N, Stripping length 3.5 ± 0.5 mmType FC 2: Wire gauge 0.14 - 0.56 mm² (AWG 26 - 20), Insulation 0.8 - 2.0 mm, Tensile strength 15 - 60 N, Stripping length 3.5 ± 0.5 mmType FC 3: Wire gauge 0.5 - 1.5 mm² (AWG 20 - 16), Insulation 1.6 - 2.8 mm, Tensile strength 60 - 135 N, Stripping length 3.5 ± 0.5 mm

•Tools Required:Crimp Tools: Approved by HARTING (see DIN EN 60352-2)Insertion and Removal Tools: See chapter 30 of the catalog

•Dimensions and Tensile Strength:

•Scale: 1:1

•Dimensions: All dimensions in mm

•Documentation:

•Created by: HAGEMEYERE

•Inspected by: TADIE

•Standardisation: HOFFMANN

•Date: 2014-09-12

•State: Final Release
