3220-10-0100-00 CNC Tech | Headers, Male Pins

CNC Tech 3220-10-0100-00

View All Headers, Male Pins by CNC Tech

Part Number:
3220-10-0100-00
Manufacturer:
CNC Tech
Category:
Headers, Male Pins
RoHs:
RoHS Compliant
Datasheet:
3220-10-0100-00_Datesheet
Description:

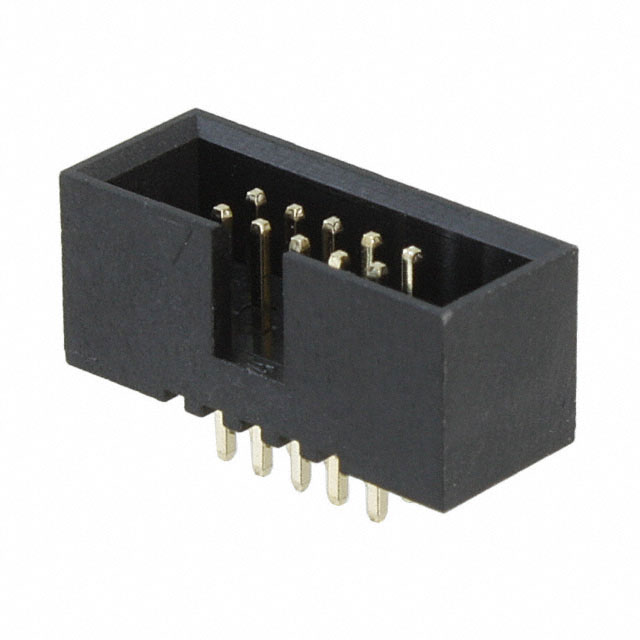

Connector Header Through Hole 10 position 0.050" (1.27mm)
In stock 0

" Not available to buy online? Want the lower wholesale price? Please send RFQ, we will respond immediately

Leave Us A Message!

[email protected]

We`re not around but we still want to hear from you! Leave us a note:

SEND

*You can contact us directly on WhatsApp!

Specifications

Type

Paramete

Type

Paramete

Contact Length - Post

0.083" (2.11mm)

Insulation Color

Black

Insulation Height

0.213" (5.40mm)

Mfr

CNC Tech

Shrouding

Shrouded - 4 Wall

Base Product Number

3220-10

Number of Rows

Number of Positions Loaded

All

Overall Contact Length

Operating Temperature

-40°C ~ 105°C

Mated Stacking Heights

Pitch - Mating

0.050" (1.27mm)

Row Spacing - Mating

0.050" (1.27mm)

Insulation Material

Polyamide (PA9T), Nylon 9T

Applications

Connector Type

Header

Contact Length - Mating

Voltage Rating

50VAC/DC

Termination

Solder

Contact Finish - Post

Mounting Type

Through Hole

Contact Finish Thickness - Mating

Flash

Contact Finish Thickness - Post

Number of Positions

Material Flammability Rating

UL94 V-0

Style

Board to Cable/Wire

Current Rating (Amps)

Fastening Type

Push-Pull

Contact Material

Brass

Contact Shape

Square

Contact Type

Male Pin

Features

Keying Slot

Ingress Protection

Contact Finish - Mating

Gold
