IQD Frequency Products LFXTAL003210
- Part Number:
LFXTAL003210
- Manufacturer:
- Category:
- RoHs:
RoHS Compliant - Datasheet:
LFXTAL003210_Datesheet - Description:
CRYSTAL 12.0000MHZ 16PF SMD
- In stock 2,911
DESCRIPTION
· Industry standard SMD quartz crystal.
· Hermetically sealed with glass to metal seals on leads.
· Gull wing mount created by mounting lead wires onto a plastic former.

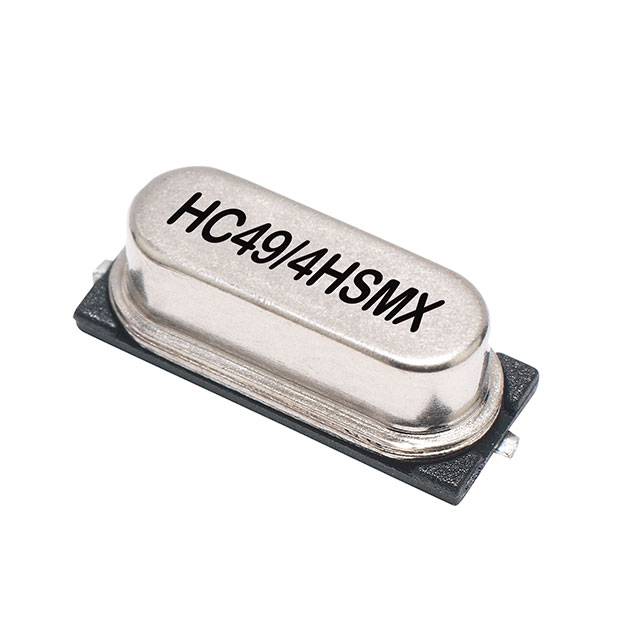

· HC49/4HSMX model with issue number 17.
FEATURES
· Frequency: 12.0MHz.
· Frequency tolerance: ±30.00ppm @25°C ±2°C.
· Frequency stability: ±50.00ppm from -10.00 to 60.00°C.
· Operating temperature range: Fundamental overtone order.
· Ageing: ±5ppm typ per year @25°C.
· Load capacitance (CL): 16.00pF.
· Shunt capacitance (C0): 7pF max.
· Drive level: 500µW max.
· ESR: 40.00Ω max.
· Shock resistance: 981m/s², 6ms, 3 times in each of 3 mutually perpendicular planes.
· Vibration resistance: 10Hz-60Hz, 0.75mm amplitude, 60Hz-500Hz, 98.1m/s², 30mins in 3 mutually perpendicular planes.
· Storage temperature range: -55 to 125°C.
· RoHS compliant (2015/863/EU).
· REACh compliant.
· MSL rating: Not Applicable.
APPLICATIONS
· Suitable for use in various electronic devices requiring precise frequency control.
· Ideal for applications in harsh environmental conditions due to robust sealing and resistance to shock and vibration.
