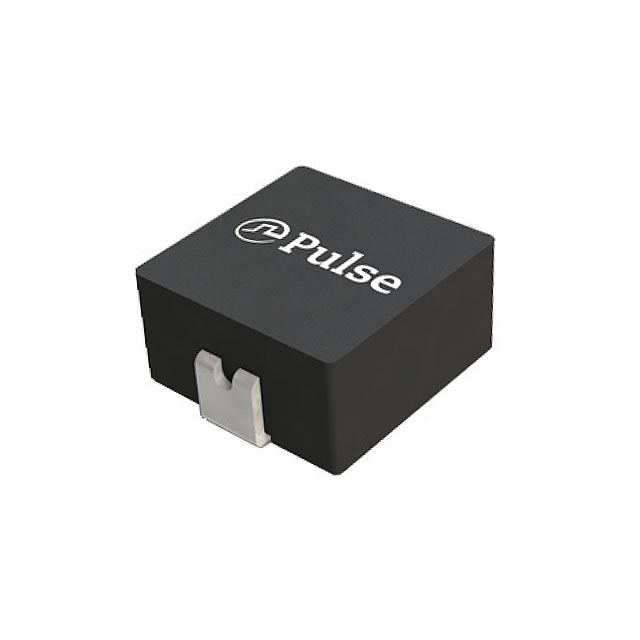

Pulse Electronics PE-1812ACC101STS

memberiso
  • Part Number:

    PE-1812ACC101STS

  • Manufacturer:

    Pulse Electronics

  • Category:

    Common Mode Chokes

  • RoHs:

    rohs Non-RoHS Compliant

  • Datasheet:

    pdf PE-1812ACC101STS_Datesheet

  • Description:

    2 Line Common Mode Choke Surface Mount 7.5 kOhms @ 10 MHz 200mA DCR 2Ohm

  • In stock 36,407
" Not available to buy online? Want the lower wholesale price? Please send RFQ, we will respond immediately
Contact Name
Business Email
Company Name
Country
Quantity
Email

Leave Us A Message!

We`re not around but we still want to hear from you! Leave us a note:

SEND
EmailWhatsApp
*You can contact us directly on WhatsApp!
Specifications
Type
Paramete
Type
Paramete
Height (Max)
0.118" (3.00mm)
Approval Agency
-
Mounting Type
Surface Mount
Voltage Rating - DC
-
Impedance @ Frequency
7.5 kOhms @ 10 MHz
Operating Temperature
-40°C ~ 125°C
Voltage Rating - AC
-
Current Rating (Max)
200mA
Size / Dimension
0.177" L x 0.126" W (4.50mm x 3.20mm)
Features
-
DC Resistance (DCR) (Max)
2Ohm
Package / Case
Horizontal, 4 PC Pad
Number of Lines
2
Ratings
AEC-Q200
Filter Type
Signal Line
