Name: PQ1CG3032FZ
Brand: Sharp Microelectronics
SKU: JM-PQ1CG3032FZ
Availability: InStock

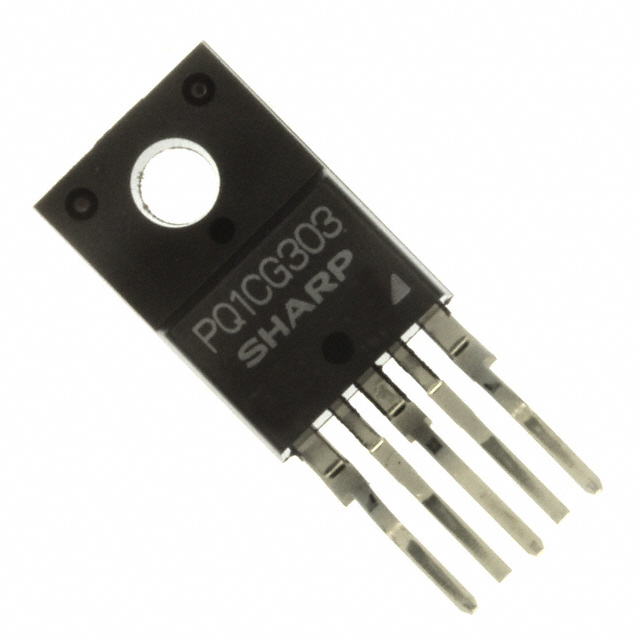

Sharp Microelectronics PQ1CG3032FZ

View All Voltage Regulators - DC DC Switching Regulators by Sharp Microelectronics

Part Number:
PQ1CG3032FZ
Manufacturer:
Sharp Microelectronics
Category:
Voltage Regulators - DC DC Switching Regulators
RoHs:
Non-RoHS Compliant
Datasheet:
PQ1CG3032FZ_Datesheet
Description:
IC REG BUCK ADJ 3.5A TO220-5
In stock 0

" Not available to buy online? Want the lower wholesale price? Please send RFQ, we will respond immediately

Leave Us A Message!

[email protected]

We`re not around but we still want to hear from you! Leave us a note:

SEND

*You can contact us directly on WhatsApp!

Specifications

Type

Paramete

Type

Paramete

Qualification

Voltage - Input (Max)

35V

Voltage - Input (Min)

Mounting Type

Through Hole

Operating Temperature

-20°C ~ 80°C (TA)

Package / Case

TO-220-5 Formed Leads

Supplier Device Package

TO-220-5

Synchronous Rectifier

Voltage - Output (Max)

35V, -30V

Voltage - Output (Min/Fixed)

±1.26V

Current - Output

3.5A

Grade

Number of Outputs

Output Configuration

Positive or Negative

Topology

Buck

Frequency - Switching

150kHz

Function

Step-Down

Output Type

Adjustable

Overview

DESCRIPTION

· TO-220 Type Chopper Regulator

· Maximum switching current: 3.5A

· Built-in ON/OFF control function

· Built-in soft start function to suppress overshoot of output voltage in power on sequence or ON/OFF control sequence

· Built-in oscillation circuit (Oscillation frequency: TYP. 150kHz)

· Built-in overheat/overcurrent protection function

· Variable output voltage (Output variable range: Vref to 35V/−Vref to −30V)

· PQ1CG3032FZ: Zigzag forming

· PQ1CG3032RZ: Self-stand forming

FEATURES

· TO-220 package

· Maximum switching current: 3.5A

· Built-in ON/OFF control function

· Built-in soft start function

· Built-in oscillation circuit (Oscillation frequency: TYP. 150kHz)

· Built-in overheat/overcurrent protection function

· Variable output voltage (Output variable range: Vref to 35V/−Vref to −30V)

APPLICATIONS

· CTV

· Digital OA equipment

· Facsimiles, printers and other OA equipment

· Personal computers and amusement equipment
