DESCRIPTION

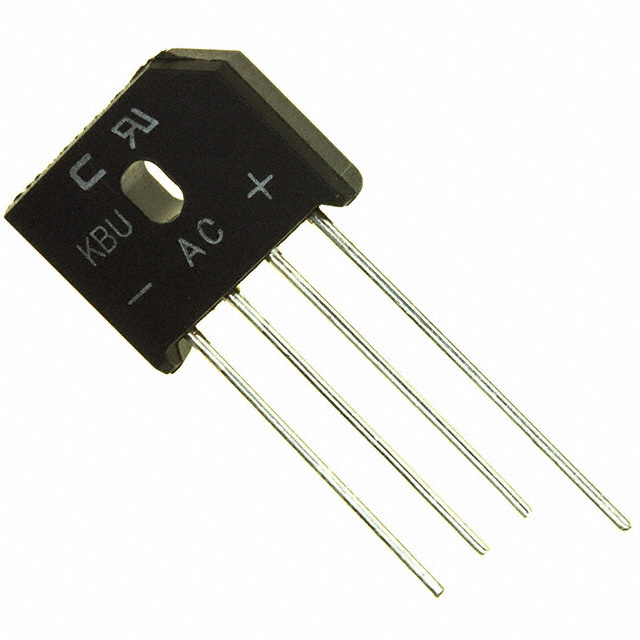

· Single phase 4.0 Amp bridge rectifiers with a maximum recurrent peak reverse voltage ranging from 50 to 1000 Volts.

· Designed for single phase half wave, 60Hz, resistive or inductive loads. For capacitive loads, derate current by 20%.

· Lead length of 0.375" (9.5mm) at Ta=50°C.

FEATURES

· Peak forward surge current of 8.3 ms single half sine-wave superimposed on rated load (JEDEC method).

· Maximum forward voltage drop per bridge element at 4.0A D.C.

· Low forward voltage and low leakage current.

· Polarity marked on the body, suitable for any mounting position.

· Weight: 4.8 grams, ideal for printed circuit board applications.

APPLICATIONS

· Suitable for use in power supply circuits and other applications requiring rectification of AC to DC.

· Ideal for environments requiring components with low forward voltage and low leakage current.

· Can be used in a variety of electronic devices and systems where space and weight are considerations.
