The HDMI connector is a crucial input-output hardware component found in a variety of contemporary entertainment and communication devices. It allows HDMI cables to carry uncompressed digital signals from a compatible A/V source to the connected receiver or display device, ensuring a high-quality transmission of audio and video content. Do you know what is an HDMI connector used for? Read the article from JMChip to boost your understanding.

What is an HDMI Connector?

HDMI, which stands for High-Definition Multimedia Interface, is a proprietary interface designed for the transmission of uncompressed video data and either compressed or uncompressed digital audio data. It facilitates the transfer of these data types from HDMI-enabled source devices, such as display controllers, to compatible devices like computer monitors, video projectors, digital TVs, or digital audio equipment. Acting as a digital alternative to traditional analog video standards, HDMI has become an essential part of modern entertainment and communication technologies.

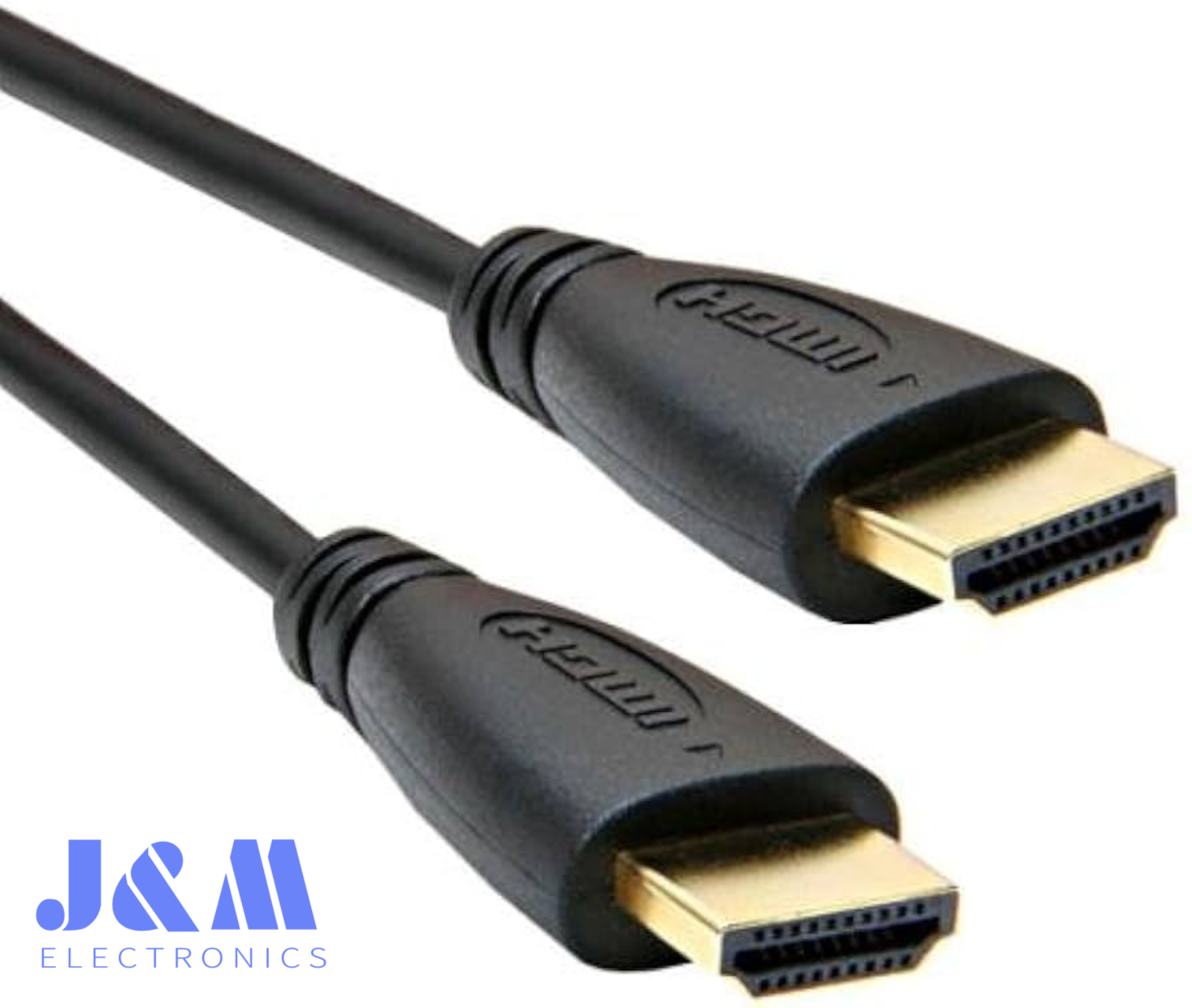

HDMI connector

Primary Features of HDMI Connectors

HDMI connectors operate on a familiar plug-and-socket mechanism, similar to other common cable connections. While HDMI and USB may appear similar in design, HDMI connectors are generally larger in size.

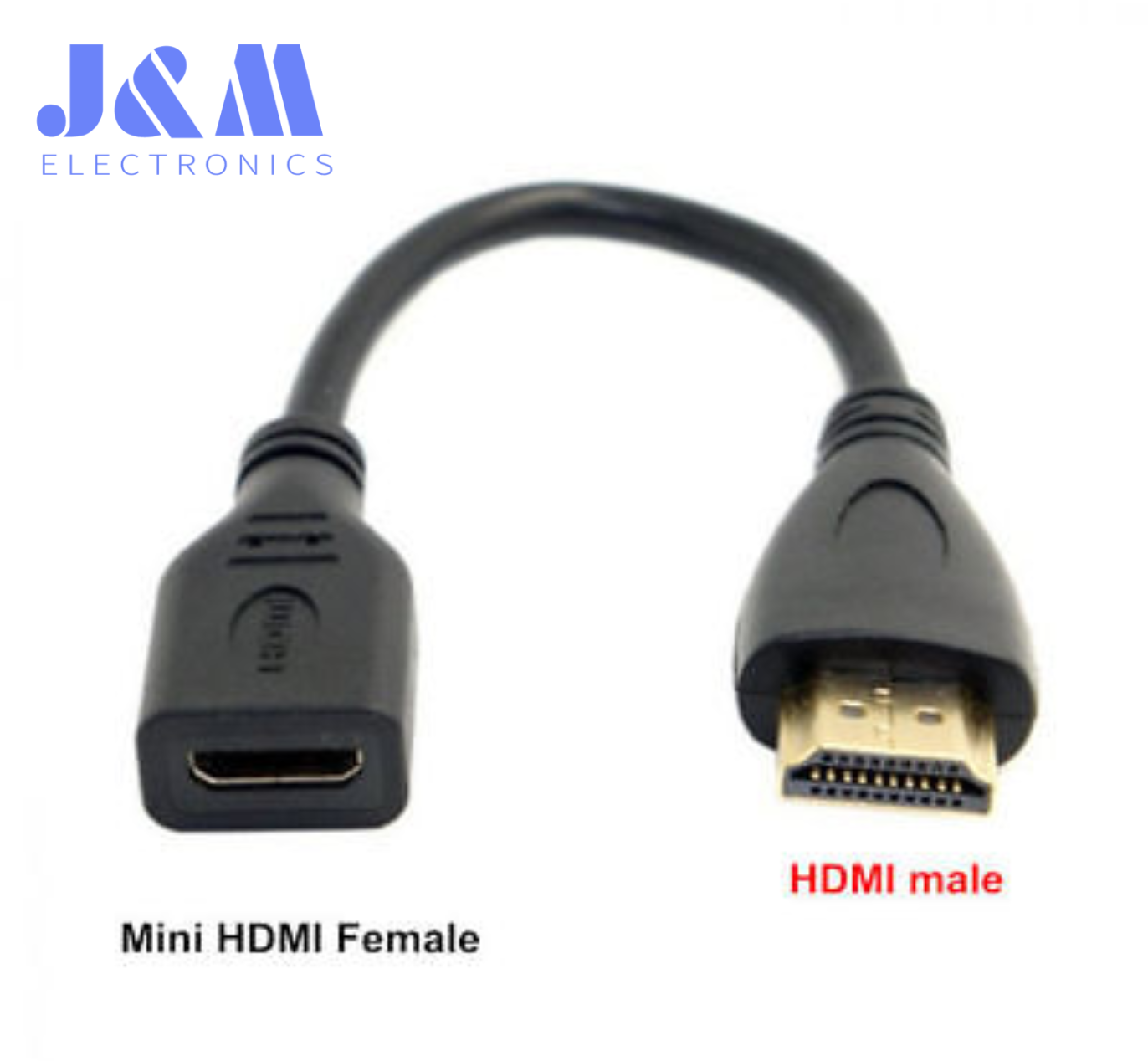

male and female HDMI connector

In the realm of audio-video cables, both male and female HDMI connectors exist to accommodate different sides of the interface, ensuring a complete connection. Male HDMI connectors, which have an extending pin arrangement, are smaller in size. Conversely, female HDMI connectors are designed to be larger and feature a recessed area to accommodate the male pins.

Types of HDMI Connectors

At present, HDMI technology offers five distinct standard connector types for its cables:

Type A(standard): This is the conventional HDMI connector found in most devices.

Type B (dual link): Designed for dual-link applications, it is not widely used in mainstream consumer electronics.

Type C (mini): A smaller version known as the mini HDMI connector.

Type D (micro): Even more compact, this is the micro HDMI connector.

Type E(the Automotive Connection System): Specifically created in-vehicle entertainment and control systems.

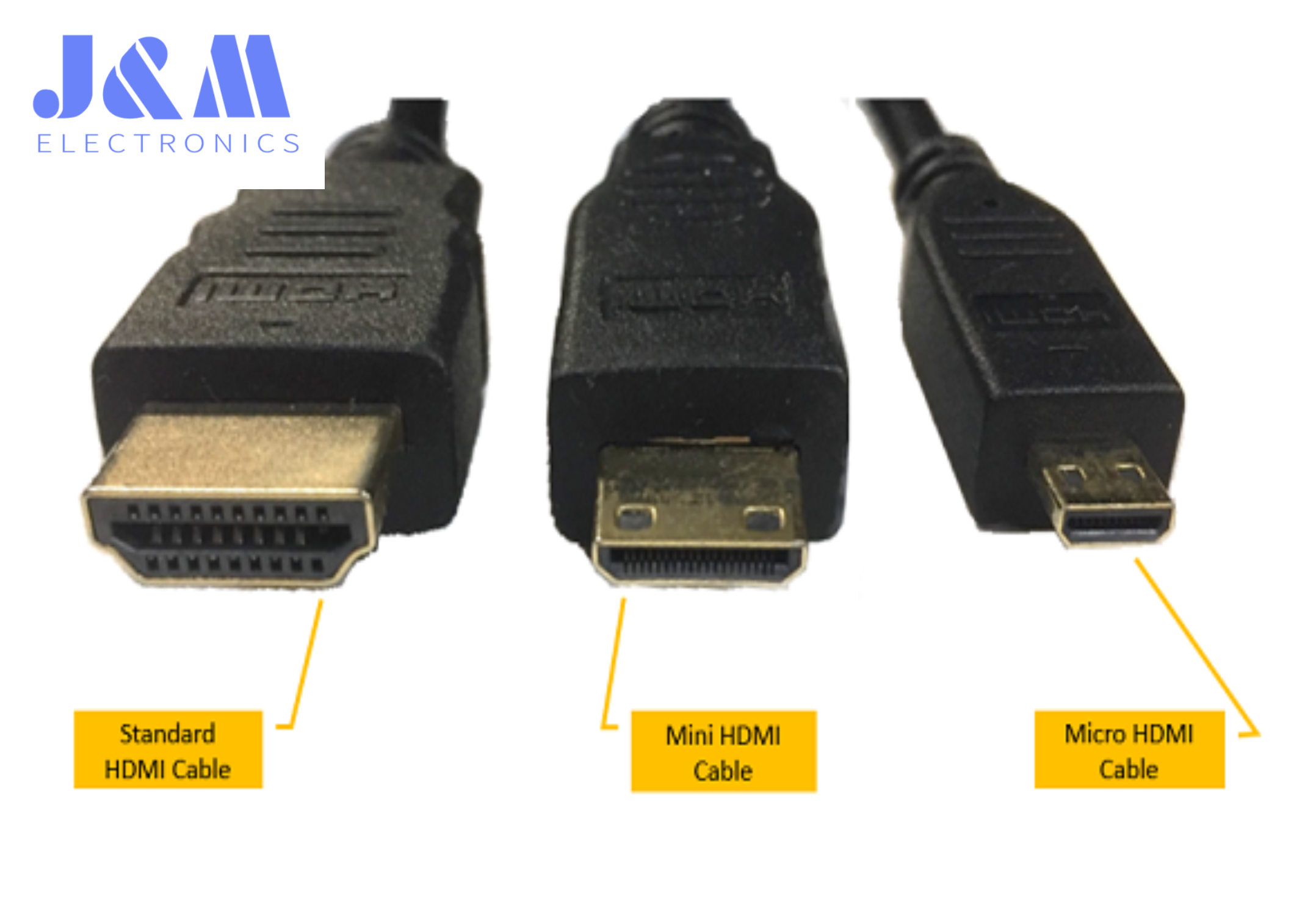

Types of HDMI Connectors

The physical dimensions of these HDMI connectors vary significantly, making them relatively easy to distinguish. For those unfamiliar with HDMI subtype designations, the variety might seem overwhelming. However, for the majority of residential and commercial uses, you will primarily encounter HDMI Types A, C, and D—covering the standard, mini, and micro. These are the most common types required for everyday connections.

Standard HDMI connector

Standard HDMI connector is the quintessential and widely recognized standard in the HDMI family, being the most prevalent and accessible among the five HDMI connector sizes. This connector type is the go-to choice for the majority of users due to its ubiquity. You can find standard HDMI connector on a vast array of modern devices, including televisions, monitors, gaming consoles, and desktop computers from nearly every major brand.

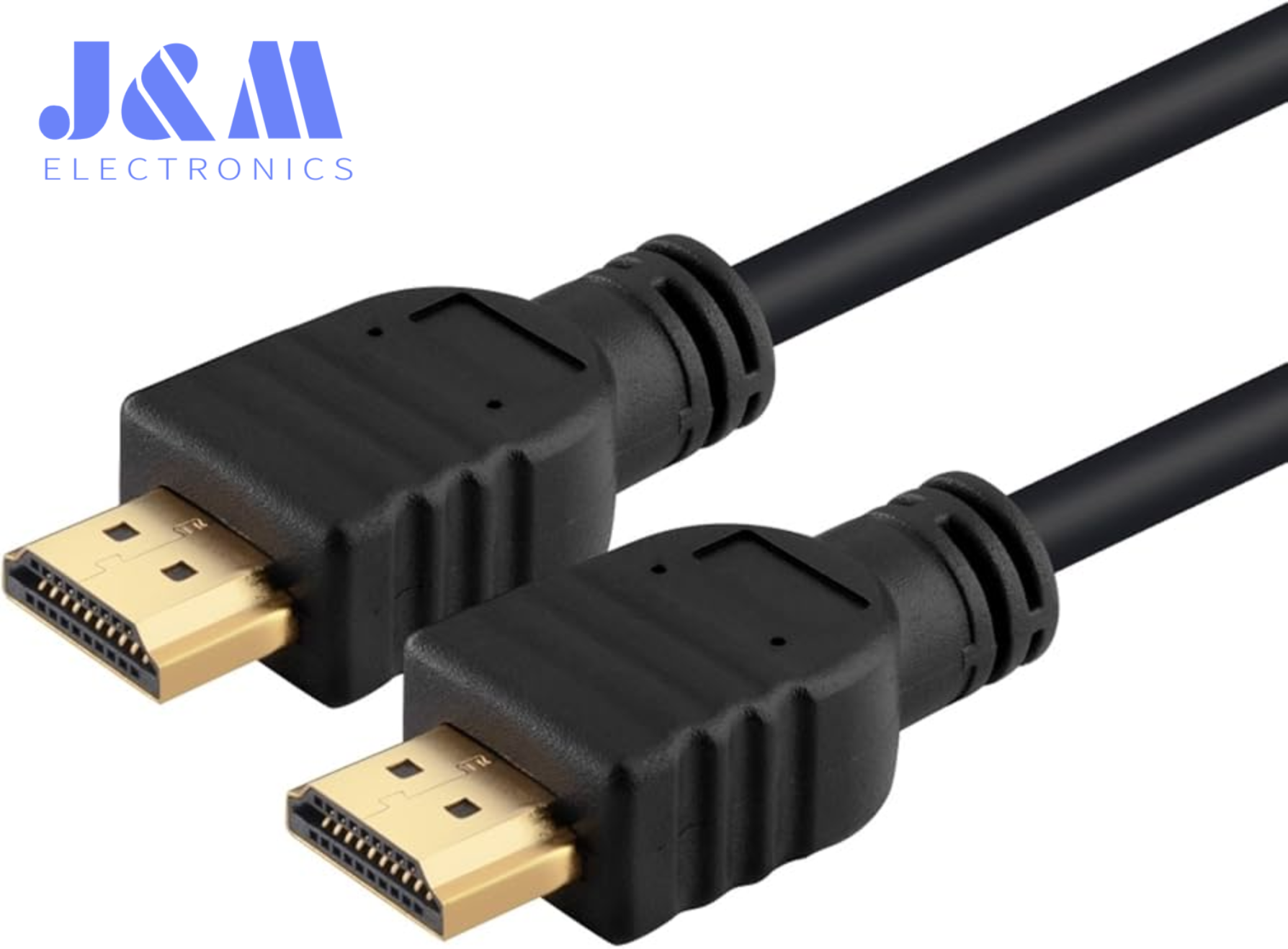

Standard HDMI connector

Mini HDMI connector

Mini HDMI connector are a more compact version of standard HDMI connector, designed for use in portable devices. They are frequently found in a variety of equipment, such as DSLR cameras, camcorders, larger tablets, and satellite navigation systems.

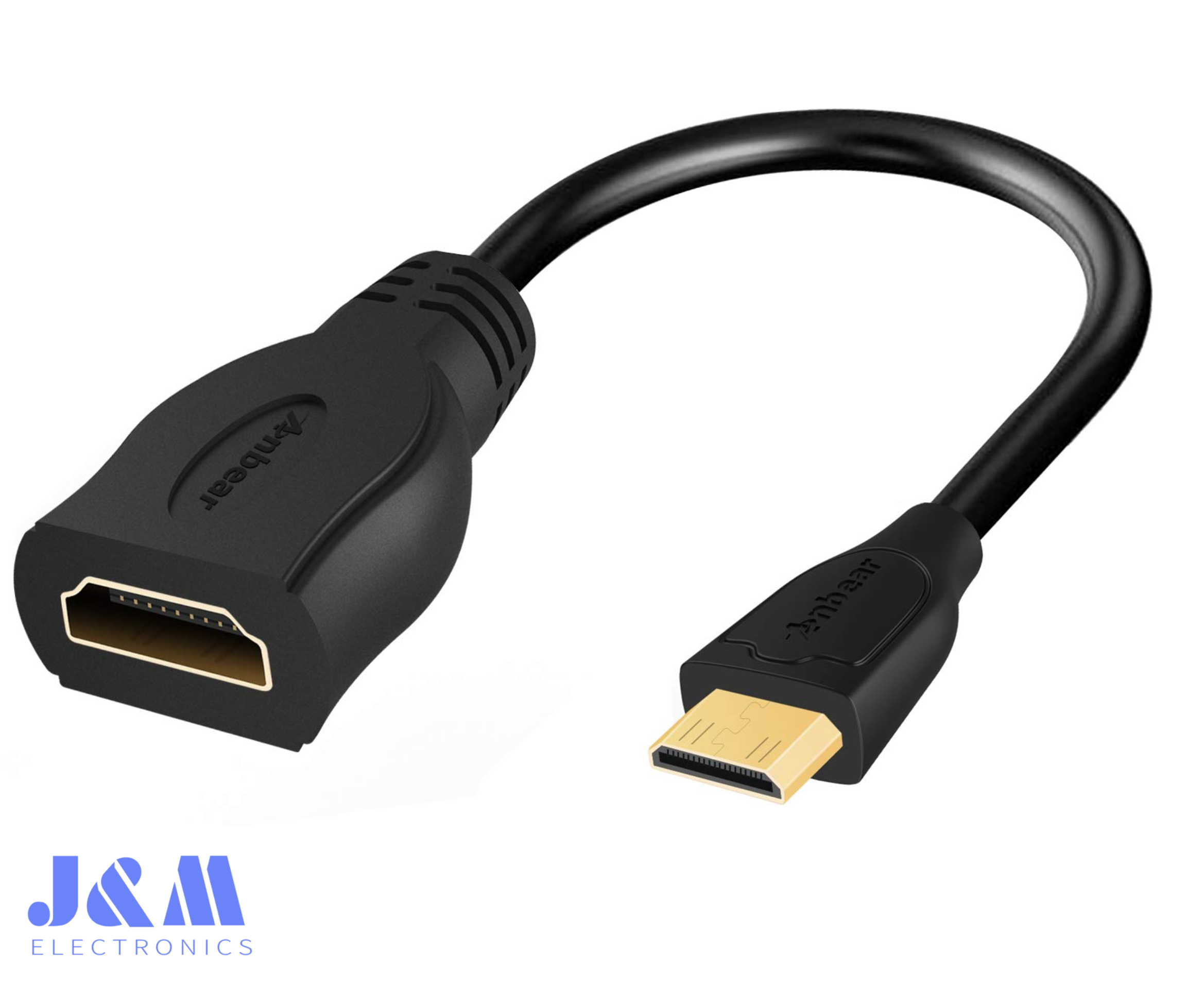

Mini HDMI connector

Micro HDMI connector

Micro HDMI connectors, are smaller in size compared to both the standard and mini HDMI connectors. Despite their reduced dimensions, they maintain the 19-pin configuration, albeit arranged differently to accommodate their compact form factor. These connectors were specifically designed for use in extremely compact and highly portable devices, such as smartphones, to facilitate audio and video connectivity.

Micro HDMI connector

Applications of HDMI Connectors

For the vast majority of conventional use cases, HDMI cables and connectors are deployed to simultaneously convey audio and video signals from an output source to an input receiver or a display device. This is their primary function, designed to eliminate the need for users to handle multiple, separate cables—or the more cumbersome DVI connectors—to achieve the transmission of both signal types in a single setup.

However, HDMI can also be employed solely for audio or video signals in certain situations, thanks to its extensive backward compatibility with older connection standards. This feature is particularly advantageous, as it enables HDMI cables and connectors to interface with various hardware devices using the appropriate adapter, accommodating a wide range of port types.

HDMI Connectors Pinouts

All HDMI connector types contain 19 pins. However, the pin configuration for the signals they transmit varies between types, which allows for backward compatibility within a specific type.  But it's essential to ensure that the correct pin numbers are utilized for the various signals when designing or manufacturing cables. Since connectors of different types cannot be mated, there are no concerns regarding cross-connection issues.

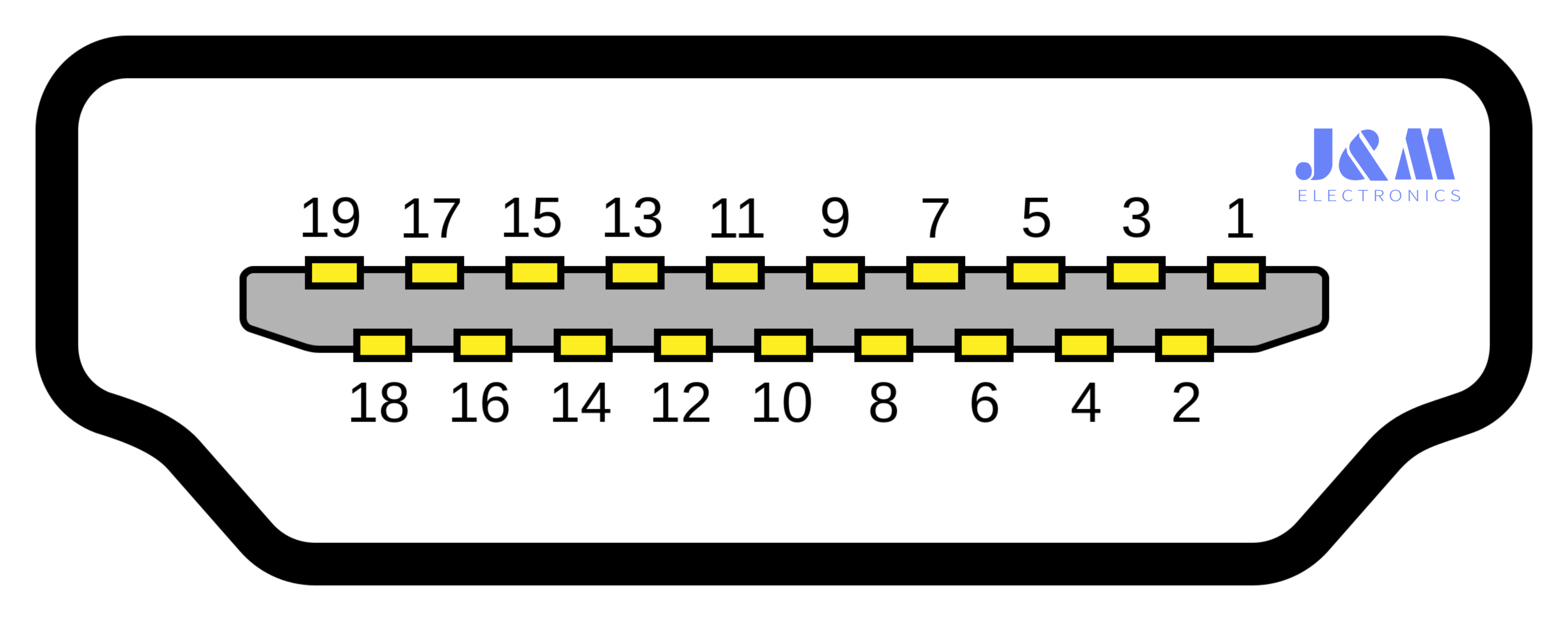

HDMI connectors pinouts

Frequently Asked Questions

Do HDMI connectors go bad?

HDMI cables do not come with a predefined lifespan, but they can degrade or become non-functional after extended periods of use. Typically, well-constructed HDMI cables can endure for approximately a decade or more when cared for properly. The specific duration that HDMI cables will last depends on various factors, including their quality of construction and the frequency of their usage.

What's better, HDMI or DVI?

While DVI is adequate for older electronics that do not require audio transmission, HDMI has emerged as the preferred standard today because of its versatility and ability to handle both audio and video signals.

Wrapping Up

In conclusion, the HDMI connector has revolutionized the way we connect and experience audio and video content across a spectrum of devices. Understanding the different types of HDMI connectors and their applications not only helps in selecting the right cable for your needs but also ensures compatibility and optimal performance.
