DESCRIPTION

· The S-816 Series is a CMOS-based external transistor type positive voltage regulator with overcurrent protection and ON/OFF circuit.

· It supports a low drop-out configuration with output current ranging from hundreds of mA to 1 A using a PNP transistor.

· Enhanced transient response characteristics make it suitable for applications with significant input or load variations.

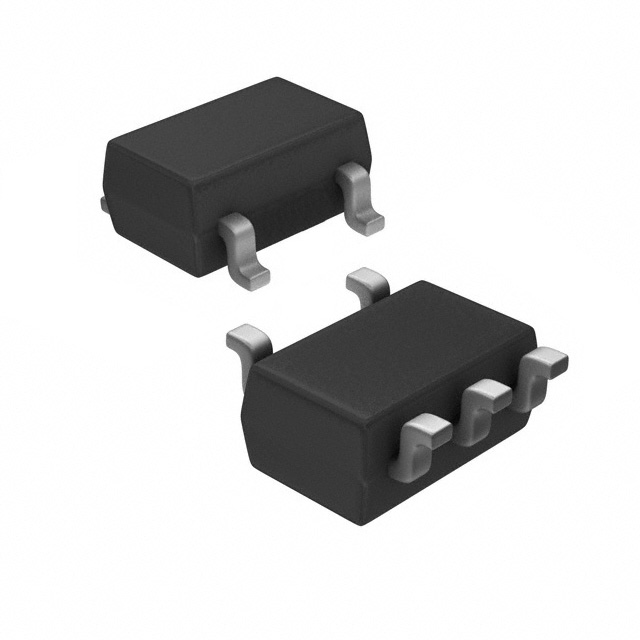

· Ideal for portable devices due to its compact SOT-23-5 package and low current consumption.

· Can handle input voltages up to 16 V, making it compatible with AC adapters.

FEATURES

· Output voltage: Selectable from 2.5 V to 6.0 V in 0.1 V steps.

· Maximum input voltage: 16 V.

· Output voltage accuracy: ±2.0%.

· Current consumption: 30 µA (typical) during operation, 1 µA (max) during power-off.

· Built-in overcurrent protection and ON/OFF circuit for extended battery life.

· Integrated 10 µA current source eliminates the need for a base-emitter resistor.

· Operating temperature range: -40°C to +85°C.

· Lead-free and halogen-free design.

APPLICATIONS

· Power supply for portable devices such as mobile phones, electronic notebooks, and PDAs.

· Constant voltage source for cameras, video equipment, and portable communication devices.

· CPU power supply.

· Post-regulator for switching regulators.

· Main regulator in multi-power supply systems.
