Toshiba THGBMHG6C1LBAW6 Comprehensive Specification Summary

1. Basic Device Information

• Full Part Number: THGBMHG6C1LBAW6
• Product Type: Industrial‑grade embedded e‑MMC memory module
• Manufacturer: Toshiba Semiconductor & Storage Products
• Capacity: 8GB
• Interface Standard: e‑MMC 5.1 (JEDEC/MMCA), supports HS400 high‑speed mode
• Device Class: Industrial version (I‑Ver) – wide temperature range
• Status: Mass production
• Document: Toshiba Flash Memory Catalog (Mar 2016)

2. Core Features

• Integrated Management: Onboard controller with ECC, wear leveling, bad block management, garbage collection
• High Speed: Up to 400 MB/s maximum data transfer rate
• Power Supply:
• Temperature Range: −40 °C to +85 °C (industrial grade)
• Reliability: Extended endurance for industrial/automotive environments
• Package: Compact P‑WFBGA153, suitable for space‑constrained designs
• Compatibility: Standard e‑MMC command set and pinout for easy design‑in

3. Performance Specifications

4. Package & Mechanical Data

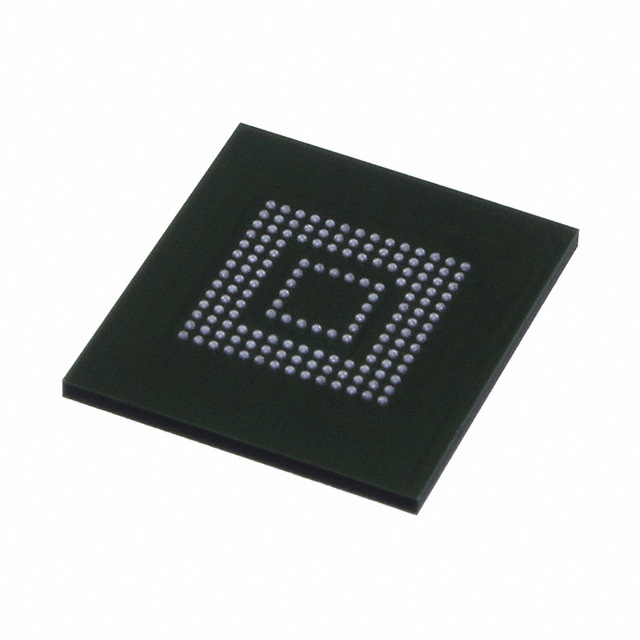

• Package Type: P‑WFBGA153 (153‑ball fine‑pitch BGA)
• Dimensions: 11.5 mm × 13.0 mm × 0.8 mm
• Pitch: 0.5 mm
• Mounting: Surface‑mount (SMT)
• Moisture Sensitivity Level: Compliant with industry standards
• Packaging: Tape‑and‑reel

5. Recommended Operating Conditions

• Core Supply (Vcc): 2.7 V to 3.6 V
• I/O Supply (VccQ): 1.70 V to 1.95 V or 2.7 V to 3.6 V
• Operating Case Temperature: −40 °C to +85 °C
• Interface Mode: e‑MMC 5.1 HS400 (8‑lane parallel)
• Signal Levels: Standard JEDEC e‑MMC compatible

6. Functional Description

• Architecture: Managed NAND with integrated controller
• Memory Cell: MLC NAND flash
• Key Functions:
• Host Interface: Standard e‑MMC command/response/data protocol
• Application Optimized: Industrial control, embedded systems, infotainment, rugged electronics

7. Reliability & Quality

• Industrial Temperature Rating: −40 °C to +85 °C
• Endurance: High write endurance for industrial workloads
• Data Retention: Compliant with industrial e‑MMC standards
• Quality: Manufactured in Toshiba’s fab with strict process controls
• RoHS Compliant: Lead‑free, halogen‑free available

8. Target Applications

• Industrial embedded systems
• Automotive infotainment & navigation
• Rugged mobile/handheld devices
• Digital signage & industrial HMI
• Networking & communication equipment
• Industrial data loggers & IoT gateways

9. Ordering & Part Number Decoding

• Part Number: THGBMHG6C1LBAW6
• Capacity Code: 6 → 8GB
• Temperature: W → Industrial (−40 °C to +85 °C)
• Package: BGA153 (11.5 × 13 × 0.8 mm)
• Version: Industrial I‑Ver e‑MMC 5.1
