DESCRIPTION

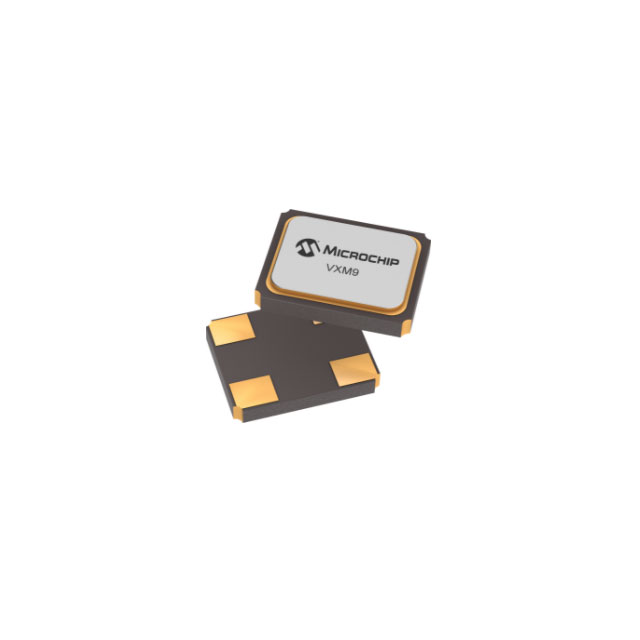

· The VXM9 is a compact crystal component with dimensions of 2.0 x 1.6mm, designed for precise frequency generation.

· It operates in a fundamental, AT-Cut mode, ensuring stable performance across various temperature ranges.

· The part marking includes frequency (XX.X), manufacturing year (Y), month (M), and location (C), providing clear identification.

FEATURES

· Nominal frequency ranges from 16.000 to 60.000 MHz, catering to diverse application needs.

· Offers excellent frequency stability (±10 to ±100 ppm) and tolerance (±10 to ±20 ppm) over the operating temperature range.

· Features low equivalent series resistance (ESR) values: 200Ω (16.000-20.000MHz), 100Ω (20.001-30.000MHz), and 80Ω (30.001-60.000MHz).

· Compliant with RoHS directive and compatible with lead-free assembly processes.

APPLICATIONS

· Suitable for use in VT-804 and similar applications requiring precise timing and frequency control.

· Ideal for electronic devices operating in temperature ranges from -40°C to 85°C.

· Can be used in various industrial, consumer, and communication electronics where compact size and reliable performance are essential.
