Description of Board In, Direct Wire to Board

"Board In, Direct Wire to Board" refers to an electronic component mounting method where components are directly mounted on the circuit board and electrically connected to other components or circuit boards through direct wiring. This method is commonly used in compact electronic device designs to save space and improve assembly efficiency. It requires precise layout planning and wiring skills to ensure the reliability of electrical connections and signal integrity.

Board In, Direct Wire to Board

"Board In" and "Direct Wire to Board" are terms commonly used in electronics, particularly in relation to how components are connected to a circuit board.

Board In

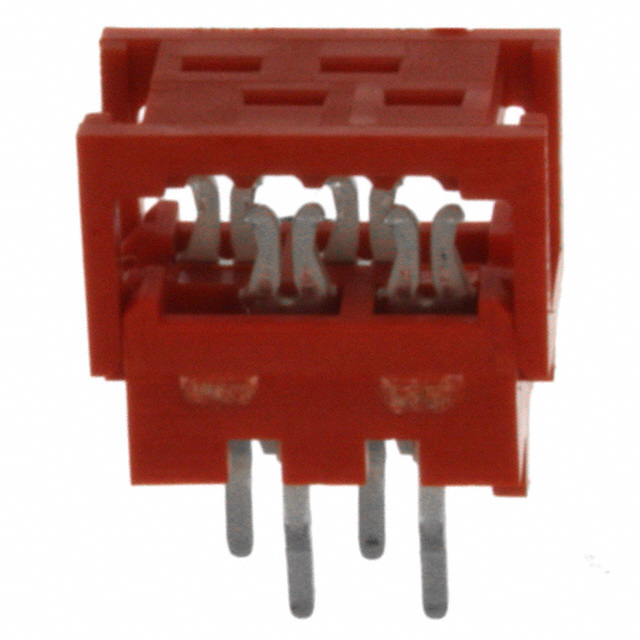

Board In typically refers to a method where components, like connectors or devices, are integrated directly into the printed circuit board (PCB). This means that the component's pins or terminals are soldered directly to the board, providing a stable and permanent connection. This approach is often used for components that need to be securely fixed in place, such as integrated circuits or larger components that benefit from the board's structural support.

Direct Wire to Board

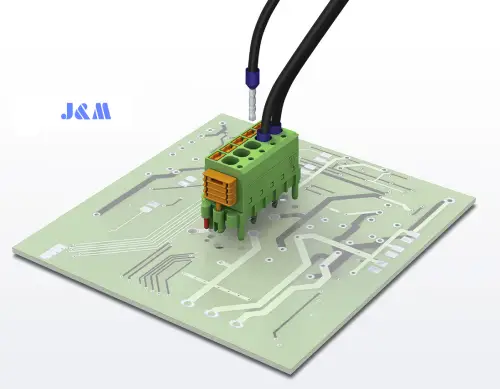

Direct Wire to Board involves connecting wires directly to specific points on the PCB, usually through terminals or solder pads. This method allows for flexible connections and can be advantageous for applications where components need to be replaced or upgraded easily. It’s commonly used for external connections, such as sensors or power supplies, where direct wiring can simplify installation and maintenance.

Summary

• Board In: Components are soldered directly onto the PCB for stability.
• Direct Wire to Board: Wires are connected to the PCB through terminals, allowing for more flexibility.

Both methods have their applications depending on the design requirements and the need for stability versus flexibility in the circuit.
