Description of Centronics Connectors

Centronics Connectors are electronic connectors initially designed for the parallel interface of printers but have also been widely used in other devices. Named after their inventor, Centronics Corporation, these connectors typically feature a 36-pin or 25-pin configuration for data transfer and control signals. Centronics Connectors are favored for their reliability and ease of physical connection, although they have gradually been replaced by USB and other interface technologies in some applications due to advancements in technology.

Centronics Connectors

Centronics Connectors Explained

Centronics connectors are a type of electrical connector that was widely used for connecting printers and other peripherals to computers. Developed by Centronics Data Computer Corporation in the 1970s, these connectors became a standard interface for parallel data transmission, especially for dot matrix printers.

Key Features:

1. Parallel Interface: Centronics connectors typically use a 36-pin configuration that supports parallel communication. This means that multiple data bits can be sent simultaneously, which allows for faster data transfer compared to serial connections.

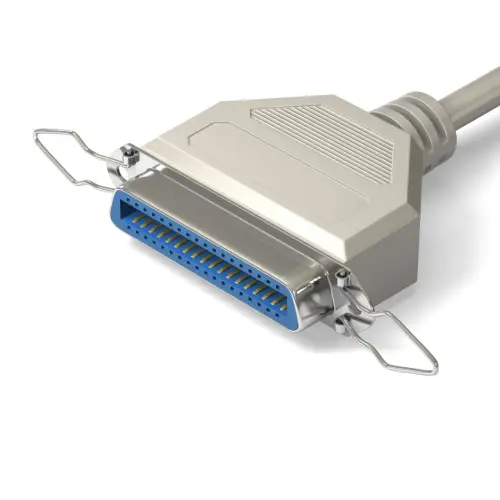

2. Physical Design: The most common Centronics connector is the Centronics 36 connector, featuring a rectangular shape with a latch mechanism to secure the connection. This design helps ensure a stable and reliable connection between devices.
3. Cable Compatibility: Centronics connectors are used with ribbon cables that contain multiple wires, allowing for the parallel transmission of data. This setup makes them suitable for short-distance connections.
4. Pin Configuration: The 36 pins in a Centronics connector are used for data lines, control signals, and ground connections. This configuration helps facilitate communication between the computer and the connected device.

Advantages:

• Fast Data Transfer: The parallel nature of Centronics connectors allows for relatively quick data transmission, making them suitable for applications like printing.
• Reliability: The latch mechanism provides a secure connection, reducing the risk of accidental disconnections during operation.

Limitations:

• Limited Distance: Due to signal degradation, Centronics connectors are not ideal for long-distance connections, typically suitable for distances of up to about 10 feet.
• Declining Use: With the advent of USB and other more efficient interfaces, the use of Centronics connectors has significantly declined. Most modern printers and devices now use USB connections, which offer greater flexibility and speed.

Applications:

While Centronics connectors are largely considered obsolete in modern technology, they were a vital component in the early days of computing and printing. They were commonly used in connecting printers, scanners, and other peripheral devices, especially in business and industrial settings.

In summary, Centronics connectors played a crucial role in the evolution of peripheral connectivity in computing. Although they have been largely replaced by more advanced technologies, their legacy remains in the history of computer hardware.
