What are Circular Connector Housings?

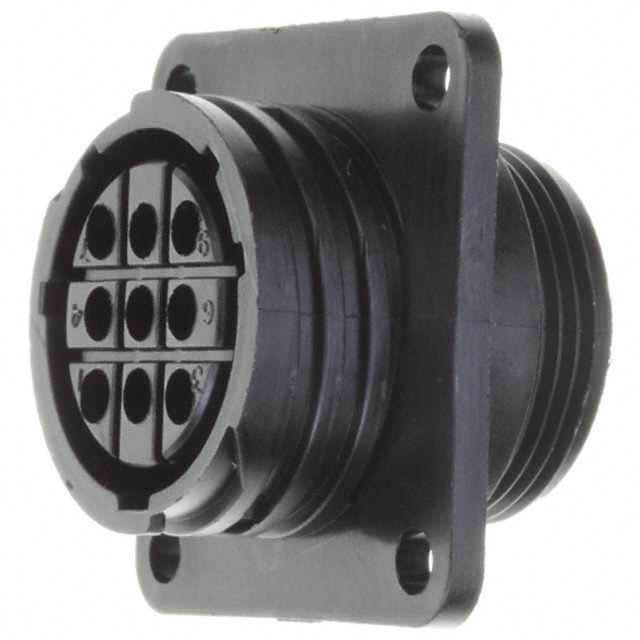

Circular Connector Housings are protective casings designed to encase the contact elements of circular connectors. They safeguard against physical impacts like shock and vibration while offering sealing features to block water, dust, and other environmental contaminants. These housings are commonly utilized in industries such as military, aerospace, industrial machinery, and automotive electronics.

Key facts about circular connector housings include:

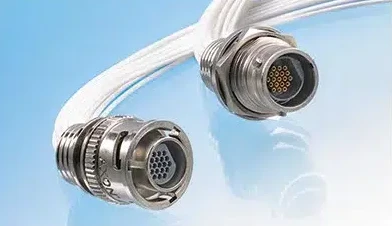

Design: Circular connectors consist of a male plug with multiple pins and a female receptacle with matching sockets. Their round design enhances durability, offering better resistance to vibration, impact, environmental contaminants, and extreme pressure or temperatures.

Connection: Circular connectors are typically secured using threaded areas that lock them into place. Other connection methods include push-pull, bayonet locking, and snap lock mechanisms.

History: Circular connectors were first developed in the 1930s for the U.S. Department of Defense and became known as "Military Standard" or "Mil-Spec" connectors.

Disadvantages: Compared to rectangular connectors, circular connectors offer fewer contact points, and the pin and socket arrangement is limited by the circular surface area.
