Description of Heavy Duty Connector Inserts, Modules

Heavy Duty Connector Inserts and Modules are connector components designed to withstand harsh environmental conditions, featuring high durability and reliability. These connectors are commonly used in industrial machinery, heavy equipment, outdoor installations, and other applications requiring robust connections. Heavy Duty Connector Inserts and Modules can resist vibration, shock, extreme temperatures, and adverse weather conditions while maintaining stable electrical connections.

Heavy Duty Connector Inserts, Modules

Heavy duty connector inserts and modules are key components used in industrial and demanding applications to facilitate robust and reliable electrical connections. Here's an explanation of each:

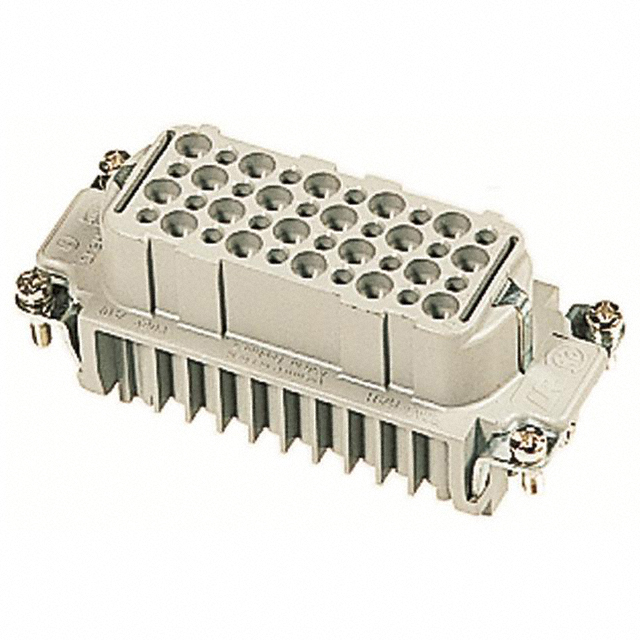

1. Heavy Duty Connector Inserts:

Key Features:

• Contact Arrangement: Inserts house the electrical contacts (pins and sockets) and provide the interface for electrical connections. They come in various configurations to accommodate different numbers of contacts, current ratings, and voltage levels.
• Material: Made from high-quality, durable insulating materials (like thermoplastics or polyamide) that protect the contacts and ensure electrical isolation.
• Modular Design: Many inserts feature a modular design, allowing for customization based on the number of connections or types of signals (power, data, etc.).
• Easy Assembly: Inserts are often designed for quick and easy installation into connector housings, reducing assembly time.

Functions:

• Electrical Contact Interface: The insert holds and aligns the electrical contacts within the connector, ensuring proper engagement when mated.
• Insulation: It provides insulation between individual contacts to prevent short circuits and ensure safe operation.
• Customization: Inserts allow flexibility in configuring the connector for specific applications, accommodating different electrical requirements.

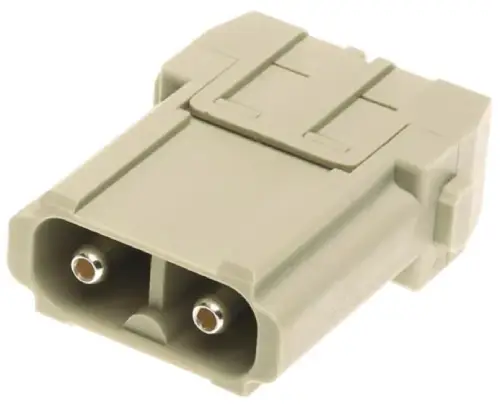

2. Heavy Duty Connector Modules:

Key Features:

• Modularity: Modules provide a high degree of flexibility by allowing users to mix and match different types of contacts (e.g., power, signal, pneumatic, optical) within a single connector.
• Wide Range of Options: Modules are available for various functions, such as power transmission, data transfer, signal processing, or even hybrid configurations that combine multiple functionalities in one module.
• High Capacity: Modules are designed to handle a wide range of electrical loads, from low voltage signals to high-power transmissions, making them suitable for complex industrial applications.

Functions:

• Multifunctional Capability: Modules enable a single connector to handle multiple tasks, such as powering equipment and transmitting data simultaneously, enhancing system efficiency.
• Scalability: The modular design allows users to easily upgrade or modify the system by adding or changing modules without replacing the entire connector, making it highly scalable for future needs.
• Space Optimization: By combining multiple functions into one connector, modules save space and reduce the number of connectors required in an installation.

Applications:

Heavy duty connector inserts and modules are commonly used in industries such as manufacturing, automation, robotics, and transportation. They are ideal for applications requiring reliable and durable connections in harsh environments, where high vibration, temperature, or moisture can affect standard connectors.

Summary:

Heavy duty connector inserts provide the contact interface and insulation needed for secure electrical connections, while modules offer flexibility and scalability, allowing for multifunctional, customizable connectors. Together, they are vital components in ensuring reliable performance in industrial and demanding environments.
