Description of Modular Connector Plugs

Modular Connector Plugs are electronic connectors designed for quick connection and disconnection, typically featuring a standardized design to ensure compatibility across various brands and models of devices. These plugs are widely used in telephone systems, Ethernet connections, audio/video equipment, and other applications requiring fast plugging and unplugging capabilities. The modular design allows users to select different types and specifications of plugs according to specific application needs.

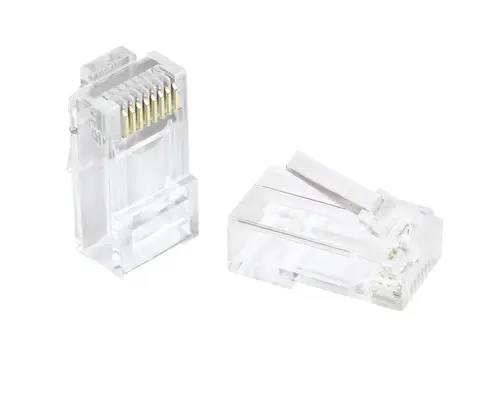

Modular Connector Plugs

What are Modular Connector Plugs ?

Modular connector plugs are a type of electrical connector used to connect and terminate cables in telecommunications, networking, and electronic devices. These plugs are widely recognized due to their use in telephone lines and Ethernet cables. They are part of the Registered Jack (RJ) family and come in various configurations, with the most common being RJ11 for telephones and RJ45 for computer networks.

Here’s an overview of modular connector plugs:

1. Structure: Modular plugs are small, plastic connectors with multiple contacts (pins) inside that align with the wires inside a cable. They have a simple clip mechanism that locks the plug into place when inserted into a corresponding jack, providing a secure electrical connection.
2. Common Types:RJ45: This plug is primarily used for Ethernet networking. It has 8 positions and 8 contacts (8P8C), allowing it to carry signals for fast internet connections, from standard data rates to Gigabit Ethernet.RJ11: Used for landline telephones, it typically has 6 positions but uses only 2 or 4 contacts (6P2C or 6P4C) to transmit telephone signals.
3. Installation: These plugs are crimped onto the ends of twisted-pair cables (like Cat5, Cat6 for RJ45), allowing custom-length cables to be created. The wires are carefully arranged within the plug according to specific color-coded standards, then pressed down using a crimping tool to ensure a solid connection.
4. Applications: Modular plugs are widely used in telecommunications, local area networks (LANs), VoIP systems, and other digital communication setups, as well as home telephone lines and computer networks.
5. Durability: Modular connectors are designed to be durable, providing reliable electrical contact even with frequent plugging and unplugging. The use of gold-plated contacts ensures good conductivity and resistance to corrosion over time.

These connectors are essential for creating quick, secure, and standardized connections in a variety of electronic systems, making them a staple in both home and professional environments.
