Description of PC Pin Receptacles, Socket Connectors

"PC Pin Receptacles, Socket Connectors" refer to socket-type connectors used on a printed circuit board (PC), also known as female connectors. These connectors have multiple holes designed to receive corresponding male pins to establish signal or power connections on the circuit board. Socket connectors are widely used in electronic devices, including computers, communication equipment, home appliances, etc., providing stable electrical connections and facilitating the installation and maintenance of components.

PC Pin Receptacles, Socket Connectors

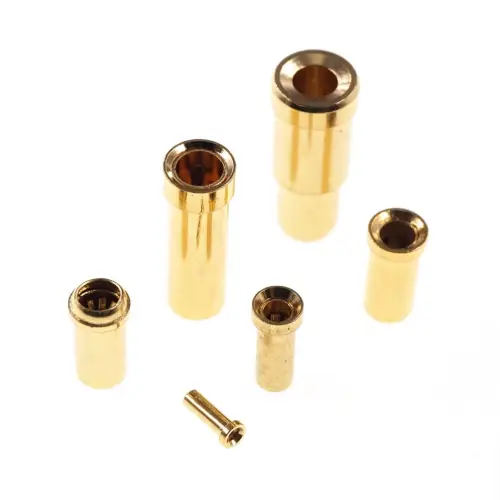

PC pin receptacles, often referred to as socket connectors, are essential components used to establish electrical connections between circuit boards and external devices. Here’s an overview:

What are PC Pin Receptacles (Socket Connectors)?

PC pin receptacles are female connectors designed to receive the male pins of headers or connectors, facilitating a secure and reliable electrical connection. They are commonly used in various electronic applications, including computers, industrial equipment, and consumer electronics.

Key Features

1. Design: Typically feature multiple contact points arranged in rows, allowing for the connection of several pins simultaneously. They can accommodate different pin sizes and spacing.
2. Durability: Made from robust materials, often with metal contacts that resist corrosion and wear, ensuring long-term reliability in various environments.
3. Locking Mechanisms: Many socket connectors include features like latches or clips to ensure a secure connection and prevent accidental disconnection.
4. Ease of Use: Designed for straightforward insertion and removal of pins, making them ideal for applications requiring frequent changes or maintenance.

Types of PC Pin Receptacles

1. Through-Hole Receptacles: Designed for insertion into drilled holes on a PCB, providing strong mechanical support and electrical connectivity.
2. Surface-Mount Receptacles: Mounted directly onto the surface of a PCB, these connectors are often used in compact designs where space is limited.
3. High-Current Receptacles: Specifically designed to handle higher currents, these connectors feature larger contact areas and robust materials to prevent overheating.
4. Shrouded Receptacles: Feature a protective cover to prevent misalignment and ensure proper insertion of the mating pin.

Applications

• Computers and Peripherals: Used for connecting components like RAM, processors, and other internal devices.
• Consumer Electronics: Found in devices like audio systems, televisions, and appliances for connecting various modules.
• Industrial Equipment: Commonly used in control systems and machinery to connect sensors and actuators.

Summary

PC pin receptacles (socket connectors) are vital for establishing reliable electrical connections in a wide range of electronic applications. Their diverse designs, durability, and ease of use make them integral components in both consumer and industrial electronics, ensuring efficient performance and functionality.
