Description of Quick Connects, Quick Disconnect Connectors

"Quick Connects, Quick Disconnect Connectors" refer to a class of electrical connectors designed for rapid connection and disconnection. These connectors typically feature an easy-to-operate locking mechanism that allows users to quickly connect or disconnect without tools. Quick Connects are widely used in various applications, including temporary power connections, test equipment, medical devices, automotive, and aerospace electronics, where they can significantly improve work efficiency and reduce connection time.

Quick Connects, Quick Disconnect Connectors

Quick connect and quick disconnect connectors are essential components in electrical and electronic systems, designed to enable fast and reliable connections without the need for tools. Here’s an overview:

What are Quick Connects and Quick Disconnect Connectors?

Quick connect and quick disconnect connectors are specialized connectors that allow for rapid and easy connection and disconnection of electrical circuits. They are commonly used in applications where frequent changes or maintenance are required.

Key Features

1. Tool-Free Operation: These connectors can be easily connected and disconnected by hand, eliminating the need for tools and speeding up the assembly or maintenance process.
2. Secure Locking Mechanism: Many quick connect/disconnect connectors include locking mechanisms that ensure a secure connection while preventing accidental disconnections during operation.
3. Versatility: Available in various configurations and sizes, they can accommodate different wire gauges and are suitable for a wide range of applications.
4. Durability: Often constructed from robust materials, these connectors are designed to withstand wear and environmental factors, ensuring long-term reliability.

Types of Quick Connect/Disconnect Connectors

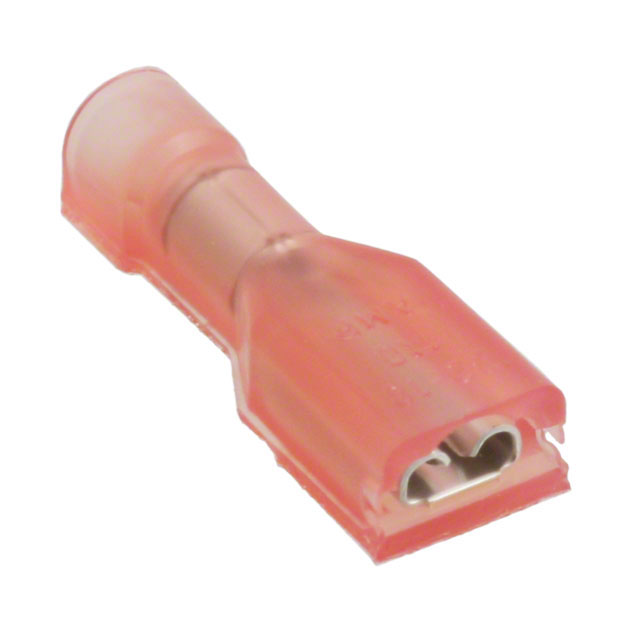

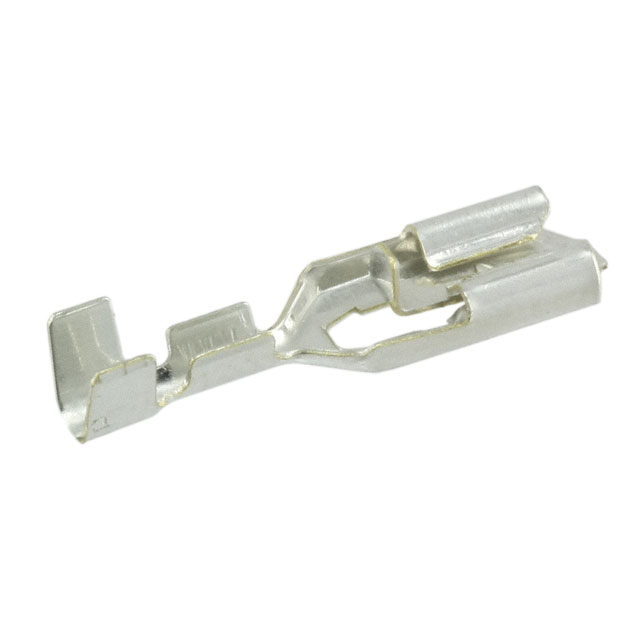

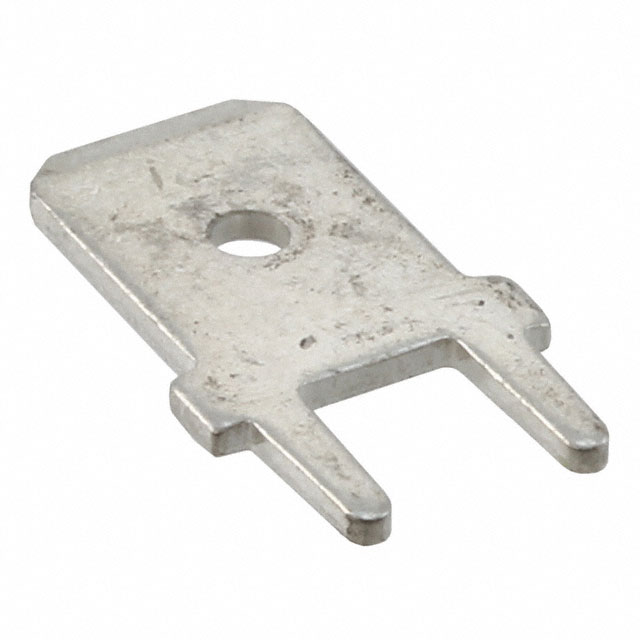

1. Blade Connectors: Feature a flat blade that slides into a corresponding receptacle, commonly used in automotive and appliance applications.
2. Snap-Fit Connectors: Designed to snap into place, providing a secure connection that can be easily released when needed.
3. Bullet Connectors: Cylindrical connectors that slide together, allowing for quick disconnection while providing a reliable electrical connection.
4. Circular Connectors: Often used in industrial applications, these connectors have a circular design that can accommodate multiple pins for complex connections.

Applications

• Automotive: Frequently used in vehicle wiring harnesses to connect sensors, lights, and other components that may require frequent servicing.
• Consumer Electronics: Found in devices where components need to be easily swapped out, such as audio systems and appliances.
• Industrial Equipment: Used in machinery and control systems for quick maintenance and replacement of parts.

Summary

Quick connect and quick disconnect connectors are vital for ensuring efficient and reliable electrical connections in a variety of applications. Their ease of use, secure locking mechanisms, and versatility make them ideal for situations where frequent assembly and disassembly are necessary, enhancing overall system functionality.
