Description of Terminal Block Contacts

Terminal Block Contacts are components of an electrical interconnect system that are applied to a conductor by crimping, soldering, or other methods and inserted into a terminal block. These contacts can include crimp terminals, screw terminals, spring terminals, etc., ensuring the stability and reliability of the electrical connection. Terminal Block Contacts are widely used in various electrical equipment and systems for connecting wires to terminal blocks.

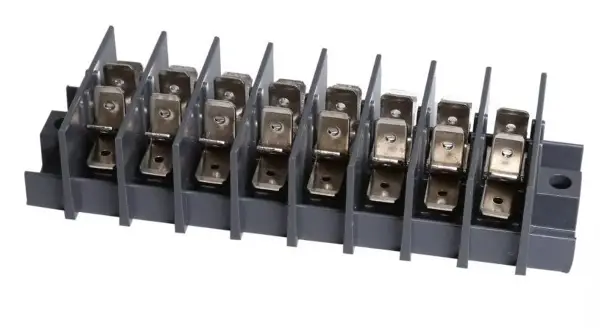

Terminal Block Contacts

Terminal block contacts are essential components that facilitate secure electrical connections between wires and terminal blocks in various applications. Here’s an overview:

What are Terminal Block Contacts?

Terminal block contacts are the conductive elements within terminal blocks that establish the electrical connection between wires and the block itself. They are designed to ensure reliable signal transmission while accommodating different wire sizes and types.

Key Features

1. Material: Typically made from conductive materials like copper or brass, often plated with nickel or gold to enhance conductivity and resist corrosion.
2. Design: Contacts are available in various shapes and configurations, including screw terminals, spring-loaded contacts, and push-in connectors, catering to different connection needs.
3. Compatibility: They are designed to work with specific terminal blocks, ensuring a secure fit and proper electrical performance.

Types of Terminal Block Contacts

1. Screw Contacts: Use screws to clamp down on the wire, providing a strong and stable connection suitable for high-current applications.
2. Spring Contacts: Utilize a spring mechanism to hold wires in place, allowing for quick and tool-free connections.
3. Push-In Contacts: Enable easy insertion of wires, often with a locking mechanism to ensure a secure connection without screws.
4. Dual-Level Contacts: Allow for multiple levels of connections within a single terminal block, maximizing space efficiency.

Applications

• Industrial Equipment: Commonly found in control panels and machinery for connecting sensors and actuators.
• Power Distribution: Used in electrical panels and systems for safe and efficient power distribution.
• Telecommunications: Essential for connecting communication lines in network equipment and systems.

Summary

Terminal block contacts play a critical role in ensuring reliable electrical connections in various applications. Their diverse designs and compatibility with different terminal blocks make them integral to efficient wiring and signal transmission in both industrial and consumer electronics.
