Description of Wire to Board

Wire to Board connectors are electronic connectors designed to establish a connection between a wire and a Printed Circuit Board (PCB). Typically featuring male and female ends, the male end has pins that are inserted into sockets or female connectors on the PCB. Wire to Board connectors can be of Through Hole or Surface Mount types, catering to various electrical and mechanical specifications. They are widely used in electronic devices to achieve compact and reliable electrical connections.

Wire to Board

Wire-to-board (W2B) connectors are essential components that enable the connection of wires directly to a circuit board, facilitating electrical and signal transmission between external components and the board itself. Here’s an overview:

What are Wire-to-Board Connectors?

Wire-to-board connectors consist of a pair of mating components: a header (or terminal block) mounted on the circuit board and a corresponding connector attached to the wire. They provide a reliable interface for connecting various electrical devices to PCBs.

Key Features

1. Variety of Configurations: Available in various designs, including pin headers, receptacles, and block connectors, to accommodate different applications and space constraints.
2. Ease of Assembly: Typically designed for simple assembly, allowing for quick connection and disconnection of wires without soldering.
3. Secure Connections: Many wire-to-board connectors feature locking mechanisms or latching systems to ensure a stable connection, reducing the risk of accidental disconnections.

Types of Wire-to-Board Connectors

1. IDC (Insulation Displacement Connectors): Allow wires to be connected without stripping insulation, providing a quick and efficient connection method.
2. Screw Terminal Connectors: Use screws to secure wires in place, ideal for high-current applications requiring a strong connection.
3. Crimp Connectors: Feature metal contacts that are crimped onto the wire, ensuring a solid electrical connection when plugged into the header.

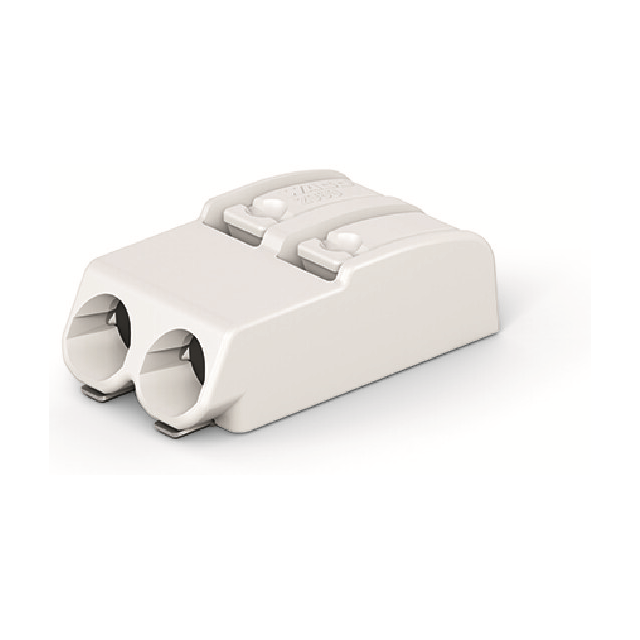

4. Spring-Loaded Connectors: Utilize a spring mechanism for quick and tool-free wire insertion, suitable for applications needing frequent disconnections.

Applications

• Consumer Electronics: Used in devices like computers, appliances, and audio equipment for connecting internal components.
• Industrial Automation: Common in control panels and machinery for connecting sensors, actuators, and power supplies.
• Automotive Systems: Found in vehicles for connecting wiring harnesses to electronic control units and other components.

Summary

Wire-to-board connectors are crucial for establishing reliable and efficient connections between wires and circuit boards. Their versatility, ease of use, and secure design make them integral to a wide range of applications in both consumer and industrial electronics.
