Description of Ceramic Filters

Ceramic filters offer a frequency-dependent response that is instrumental in either damping or selecting specific signal components across a spectrum of frequencies. Certain devices leverage the piezoelectric attributes of ceramics to accomplish this, functioning as sophisticated electro-mechanical systems. In contrast, other designs employ multi-layer fabrication methods, integrating inductive components to form a compact inductor-capacitor (LC) filter configuration.

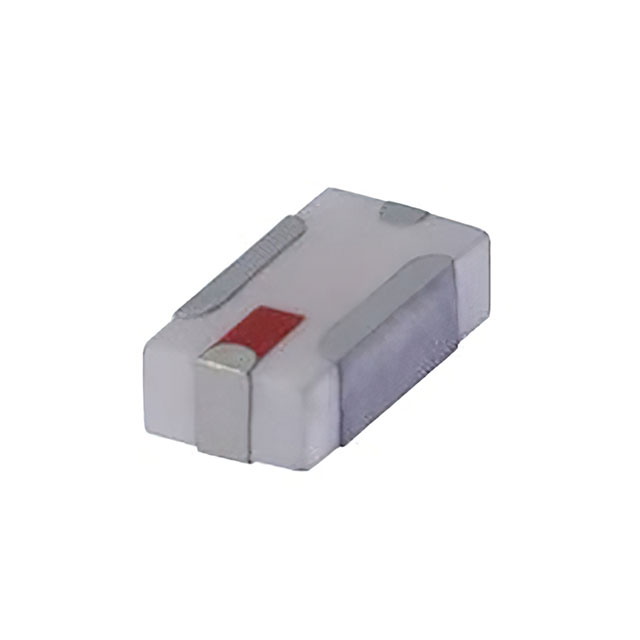

Ceramic filters

Applications of Ceramic Filters

Ceramic filters are passive electronic components that are utilized to pick out specific frequencies within RF and IF circuits. Renowned for their high stability, minimal insertion loss, and compact dimensions, these filters are well-suited for use in communication equipment and signal processing tasks. Common applications span across wireless communication, broadcasting systems, and GPS devices.

Advantages of Ceramic Filters

Incorporating ceramic filters into your electronic designs enables precise frequency discrimination, enhanced signal clarity, and diminished noise levels, which are crucial for the operation of advanced electronic systems.

Features of Ceramic Filters

Surface-mount design for easier installation.

Broad frequency spectrum from 400 MHz to 6,000 MHz.

Robust performance across a wide temperature spectrum.

Compact and lightweight for space-saving design.

Straightforward implementation as a plug-and-play option.
