Description of Ferrite Beads and Chips

Ferrite beads and chips are specialized components engineered to mitigate high-frequency noise and electromagnetic interference (EMI) in electrical systems. They are strategically integrated into circuits to serve this purpose.

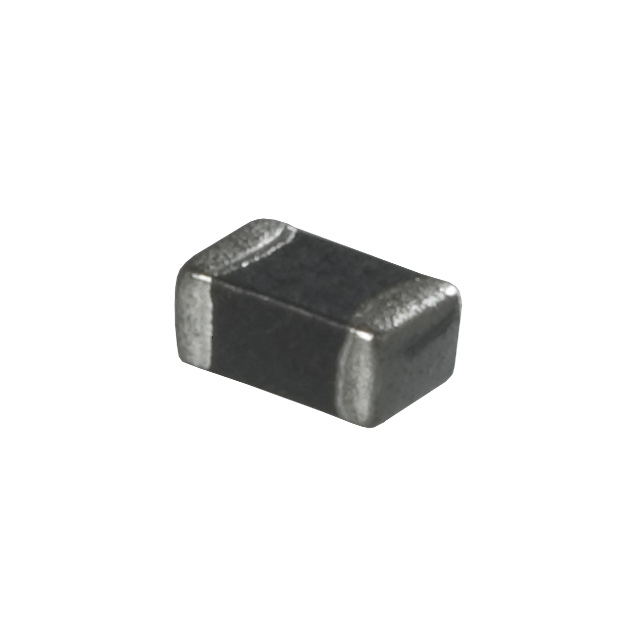

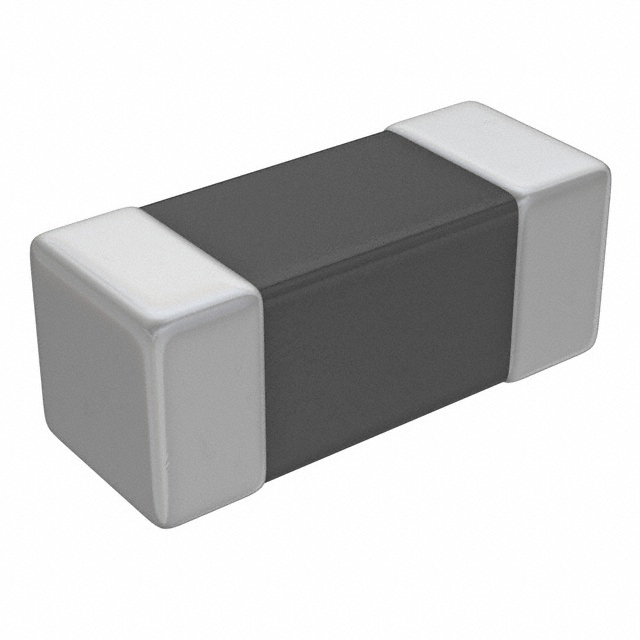

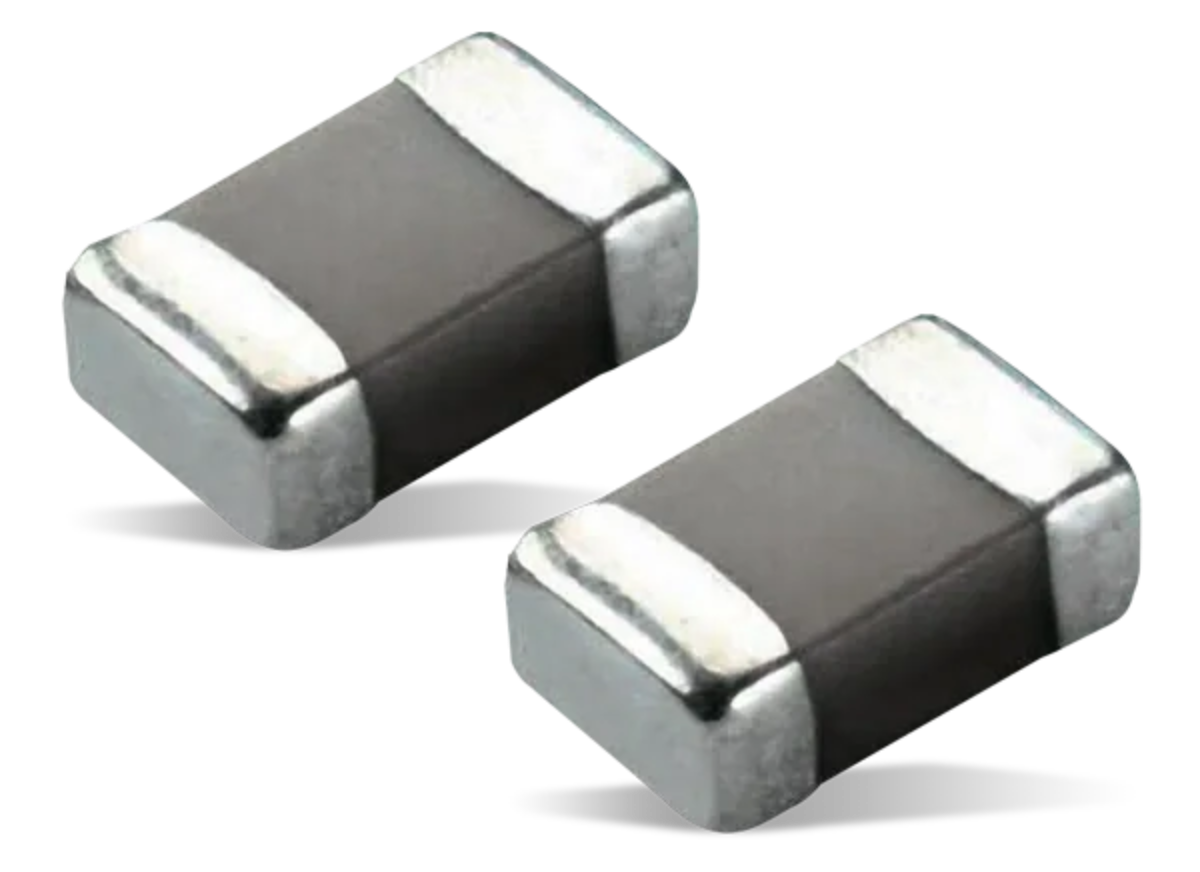

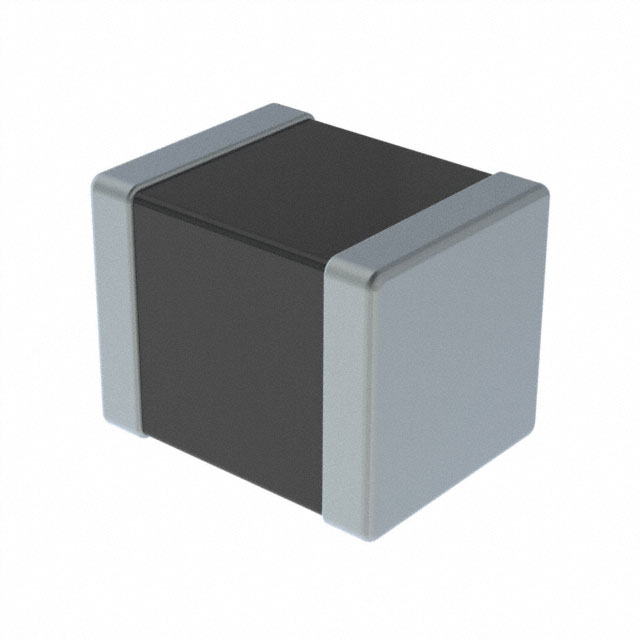

Ferrite beads and chips

Their effectiveness is determined by several key attributes: the type of filter they provide (be it differential, signal, or power), the number of lines they accommodate, their maximum current capacity, impedance levels at a specified frequency, and the method of installation (whether they are designed to be free hanging, surface-mounted, or through-hole).

Advantages of Ferrite Beads and Chips

The benefits of using ferrite beads are manifold:

• They effectively dampen high-frequency noise.
• They enhance signal clarity within the target circuit.
• Incorporating ferrite beads into devices helps in reducing or even eliminating interference.
• You can view ferrite beads as a filter designed to mitigate electromagnetic interference (EMI).

Working Principle of Ferrite Beads and Chips

The structure of a ferrite bead includes a conductor that passes through the center of a hollow, highly permeable iron oxide ceramic cylinder. This design allows the electromagnetic properties to affect the flow of current. The permeability of the iron oxide in the ceramic facilitates the creation of a magnetic field when current passes through the conductor.

Operating on the principles of Faraday's Law, the magnetic core surrounding the conductor generates an induced back EMF in response to high-frequency signals. This process leads to the reduction of the high-frequency noise that the ferrite bead is designed to counteract.

Frequently Asked Questions

What are the disadvantages of ferrite beads?

Ferrite beads, acting as resistive elements at high frequencies, can potentially cause issues within your circuitry. It's important to take into account factors such as voltage and heat dissipation. In the past, when higher-voltage circuits were prevalent, voltage drop was not a significant concern.

What happens to a wire when a ferrite bead is placed around it?

By applying a ferrite bead to a wire, the wire gains resistance to radio frequency (RF) currents that propagate along its surface. Keep in mind that RF energy travels along the exterior of a conductor rather than through its core. Consequently, the ferrite bead effectively impedes the RF by presenting a metaphorical 'uphill' path for the signal to traverse.

When not to use ferrite beads?

Given that ferrite beads exhibit inductive properties, it is crucial to exercise caution when using them in conjunction with high Q decoupling capacitors. Failure to do so might lead to adverse effects, such as inducing unwanted resonance within the circuitry.
