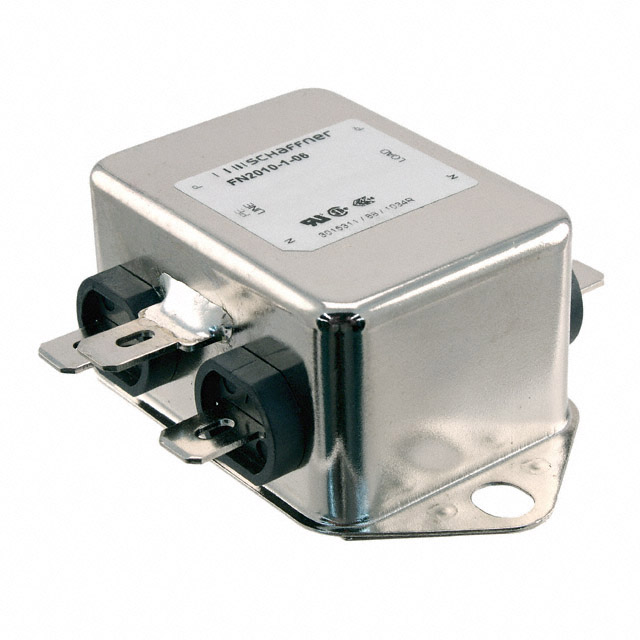

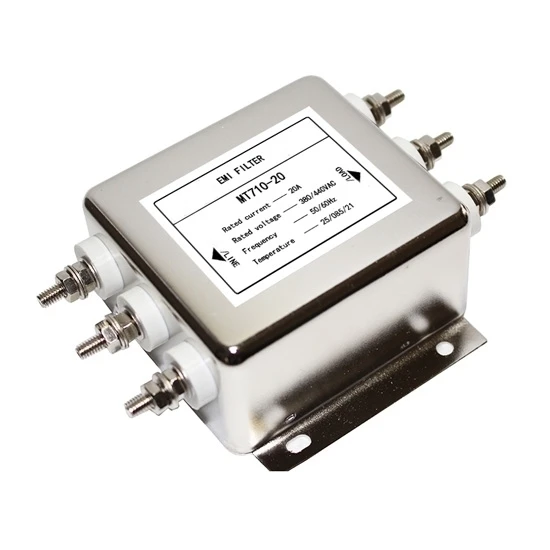

Product Category Description: Power Line Filter Modules

Power Line Filter Modules are essential electronic components used in power systems to reduce noise and electromagnetic interference (EMI) from power lines. These modules typically integrate filters, capacitors, and inductors to suppress both high-frequency and low-frequency noise, ensuring the stability of power supply systems and the proper functioning of electronic devices. Power line filter modules are commonly used in various power systems and communication equipment, with applications in household appliances, industrial equipment, medical instruments, computer systems, power tools, and more.

By isolating interference signals from the normal power signals, power line filter modules provide stable power output and protect sensitive devices from noise. These modules effectively eliminate common-mode and differential-mode noise from power lines, improving the device’s immunity to interference, enhancing power quality, and extending the lifespan of equipment.

Key Features:

• Reduces Electromagnetic Interference (EMI): Suppresses high-frequency and low-frequency noise to minimize electromagnetic interference, ensuring smooth operation of devices.
• Improves Device Stability: Enhances power supply quality, ensuring stable and reliable performance of electronic devices.
• Versatile Applications: Suitable for use in household appliances, industrial equipment, medical instruments, computing and communication devices, and more.
• High Efficiency: Improves the efficiency and performance of power systems by filtering noise and enhancing signal quality.
• Easy Installation: Typically designed in a compact form, these modules are easy to install and can adapt to various applications.

Applications:

• Household appliances (e.g., TVs, refrigerators, air conditioners)
• Industrial equipment (e.g., automation control, robotic systems)
• Medical equipment (e.g., diagnostic instruments, life support devices)
• Communication equipment (e.g., network switches, routers)
• Computing and electronic devices (e.g., servers, PCs)
• Power tools (e.g., motors, pumps, fans)

Frequently Asked Questions (FAQ)

1. What is a power line filter module?

A power line filter module is an electronic component used in power systems to remove noise and interference from the power line, ensuring that devices receive clean power. It typically combines filters, capacitors, and inductors to suppress electromagnetic interference (EMI) and noise.

2. How does a power line filter module work?

Power line filter modules work by providing a low-impedance path to filter out noise signals from the power line. They use a combination of inductors and capacitors to eliminate both differential-mode and common-mode noise, improving power quality and ensuring the proper operation of devices.

3. What are the main applications of power line filter modules?

Power line filter modules are widely used in **household appliances**, **industrial automation**, **medical equipment**, **computing systems**, **communication devices**, and **power tools**, especially in devices that need improved power quality and reduced noise interference.

4. What types of noise do power line filter modules filter out?

Power line filter modules primarily filter out two types of noise: differential-mode noise (which occurs between the two conductors of the power line) and common-mode noise (which occurs between the two conductors and ground).

5. Why are power line filter modules important for device stability?

Power line filter modules effectively reduce noise and electromagnetic interference (EMI), improving the power supply quality and protecting sensitive devices from voltage fluctuations and power surges. This ensures stable operation, reduces malfunction, and extends the life of the equipment.

6. Is installing a power line filter module complicated?

Power line filter modules are typically designed in a compact form, making installation relatively simple. Most modules can be directly connected to the power input, making them adaptable to different devices and application environments. Installation usually involves standard electrical interfaces.

7. How do I choose the right power line filter module?

When selecting a power line filter module, consider factors such as current rating, operating voltage, frequency range, application type, and type of noise to be filtered. Ensure the selected module can meet the power requirements and noise suppression needs of your device.

8. Can power line filter modules improve energy efficiency?

Yes, power line filter modules can improve the overall efficiency of devices by enhancing power quality and suppressing noise in the power system. With a more stable power supply, devices can operate more efficiently, reducing energy waste.

9. What voltage and current specifications do power line filter modules support?

Power line filter modules come in various voltage and current specifications, depending on the application. When selecting a module, ensure it meets the required current capacity and operating voltage for optimal noise suppression and compatibility with your system.

10. Can power line filter modules filter high-frequency noise?

Yes, power line filter modules are specifically designed to filter high-frequency noise, making them suitable for applications that need to suppress radio frequency interference (RFI) and electromagnetic interference (EMI). They effectively reduce noise in the power system, improving the stability and performance of the overall system.
