Description of Special Purpose Isolators

Special Purpose Isolators are isolation devices designed for specific applications, which electrically separate two parts of a circuit to prevent direct current flow, thereby protecting equipment and personnel from electrical faults. These isolators may have special performance characteristics or designs to meet the needs of applications under conditions such as high voltage, high frequency, or extreme environments.

Special Purpose Isolators are components used in electronic circuits and systems to provide electrical isolation between different parts of the system while allowing signals or power to pass through. These isolators are specifically designed for unique or specialized applications where standard isolation components may not be sufficient. Their primary function is to separate electrically different parts of a circuit, preventing unwanted interference, protecting sensitive components from high-voltage spikes, or enabling signal transmission over long distances without electrical connection.

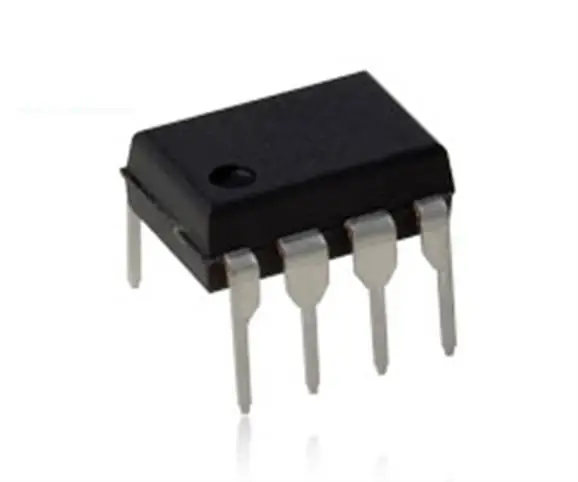

Special Purpose Isolators

1. Purpose of Special Purpose Isolators:

• Electrical Isolation: Isolators are used to separate high-voltage components from low-voltage parts, ensuring that sensitive devices (such as microcontrollers, sensors, or communication systems) are protected from voltage surges, noise, or static discharge.
• Signal Integrity: In some applications, isolators are used to maintain the quality and integrity of signals transmitted between parts of a system while minimizing noise, distortion, and electromagnetic interference (EMI).
• Safety: They protect operators and equipment from electrical faults, such as short circuits or power surges, by isolating potentially dangerous sections of the system.
• Noise Filtering: In industrial environments or environments with significant electrical noise, special purpose isolators can help prevent noise from interfering with signals.

2. Types of Special Purpose Isolators:

a. Optical Isolators (Optocouplers):

Optical isolators, also known as optoisolators, use light (usually an LED and a phototransistor) to transmit signals across an optical barrier, allowing for electrical isolation between input and output. These are commonly used in communication systems and control circuits.

• Applications:Protecting microcontrollers and sensors from high-voltage systems.Signal transmission in environments with high electrical noise.Data communication interfaces between different systems.
• Advantages:High-speed data transmission.Excellent isolation from electrical noise.Can handle both analog and digital signals.

b. Transformer-based Isolators:

Transformers are often used to isolate power signals. In these isolators, the primary and secondary windings are electrically separated, allowing the transfer of power while preventing direct electrical contact.

• Applications:Power supplies, where isolation between the input (AC mains) and output (DC to power devices) is needed.Audio systems, to prevent ground loops and hum.Industrial control systems where high voltage and low voltage circuits must be kept isolated.
• Advantages:High power isolation.Can provide voltage step-up or step-down capabilities, as well as current transformation.Effective for both AC and DC signals.

c. Capacitive Isolators:

Capacitive isolators use the principle of capacitive coupling to transfer a signal through a dielectric material without direct electrical contact. This type of isolation is often used in high-speed digital circuits and data transmission.

• Applications:Data and signal isolation in high-speed digital systems.Isolation in RF (radio frequency) systems.Safety barriers in control systems.
• Advantages:High-speed signal transmission with low power consumption.Compact size for high-density applications.Effective for high-frequency signals.

d. Magnetic Isolators:

Magnetic isolators, often based on magnetoresistive or Hall-effect sensors, utilize magnetic fields to provide isolation. These are typically used in applications where high-speed data transmission and low distortion are required.

• Applications:Used in motor control and feedback systems.Industrial machinery requiring high-speed, accurate isolation.Position or current sensing systems.
• Advantages:Robust against environmental factors like temperature or vibration.Reliable in high-current or high-voltage applications.Provides both signal isolation and feedback.

e. Galvanic Isolators:

These isolators are designed to separate electrical circuits and prevent the flow of direct current (DC) between them. They allow alternating current (AC) signals to pass while blocking DC, which is essential in protecting systems from ground loops or creating safe ground reference conditions.

• Applications:Preventing ground loop interference in audio or communication equipment.Electrical safety in systems dealing with both high and low voltage.Power transmission systems that require isolation from potential ground fault.
• Advantages:Efficient for both AC and DC isolation.Used to break ground loops, which helps reduce noise in sensitive electronic equipment.Provides protection from electrical shocks or surges.

3. Applications of Special Purpose Isolators:

• Industrial Automation: Protecting sensitive control systems and sensors from electrical noise or high-voltage spikes caused by motors or switching equipment.
• Medical Equipment: Ensuring safe isolation of electrical components from patient-connected devices, such as in ECG machines or diagnostic instruments.
• Power Systems: Isolating components in power supply circuits to prevent damage due to voltage fluctuations or surges.
• Data Communication: Isolating communication lines, such as RS-232 or Ethernet, to protect against electrical surges or ground potential differences.
• Audio Systems: Preventing noise and interference from electrical ground loops and ensuring clear audio signal transmission.

4. Advantages of Special Purpose Isolators:

• Safety: These isolators protect users, systems, and equipment from electric shocks and surges, ensuring safe operation of complex systems.
• Signal Integrity: By preventing noise and distortion, isolators help ensure that the signals being transmitted remain accurate and reliable, which is critical in many high-performance systems.
• Prevent Ground Loops: Special purpose isolators can prevent the effects of ground loops in audio, video, or data transmission systems, ensuring high-quality performance.
• Reduced Electromagnetic Interference (EMI): They minimize the impact of EMI, which is crucial in environments with high electrical noise or sensitive equipment.
• Longevity: Isolators, particularly optical or transformer-based isolators, can have long operational lifetimes, reducing maintenance costs and system downtimes.

5. Conclusion:

Special Purpose Isolators are indispensable components in modern electronics and industrial systems. They provide critical isolation for safety, signal integrity, and noise reduction. By selecting the appropriate isolator for specific applications—whether for power, signal, or communication isolation—systems can be designed to operate safely and efficiently, even in harsh or high-voltage environments. Their versatility makes them essential for a wide range of industries, from industrial automation and medical devices to power systems and data communication.
