Description of Ballasts and Inverters

Ballasts and inverters are distinct electrical components with unique roles in different settings.

Ballasts are mainly employed in gas discharge lighting, including fluorescent and high-intensity discharge (HID) lamps, to manage the current and ensure the lamp functions properly.

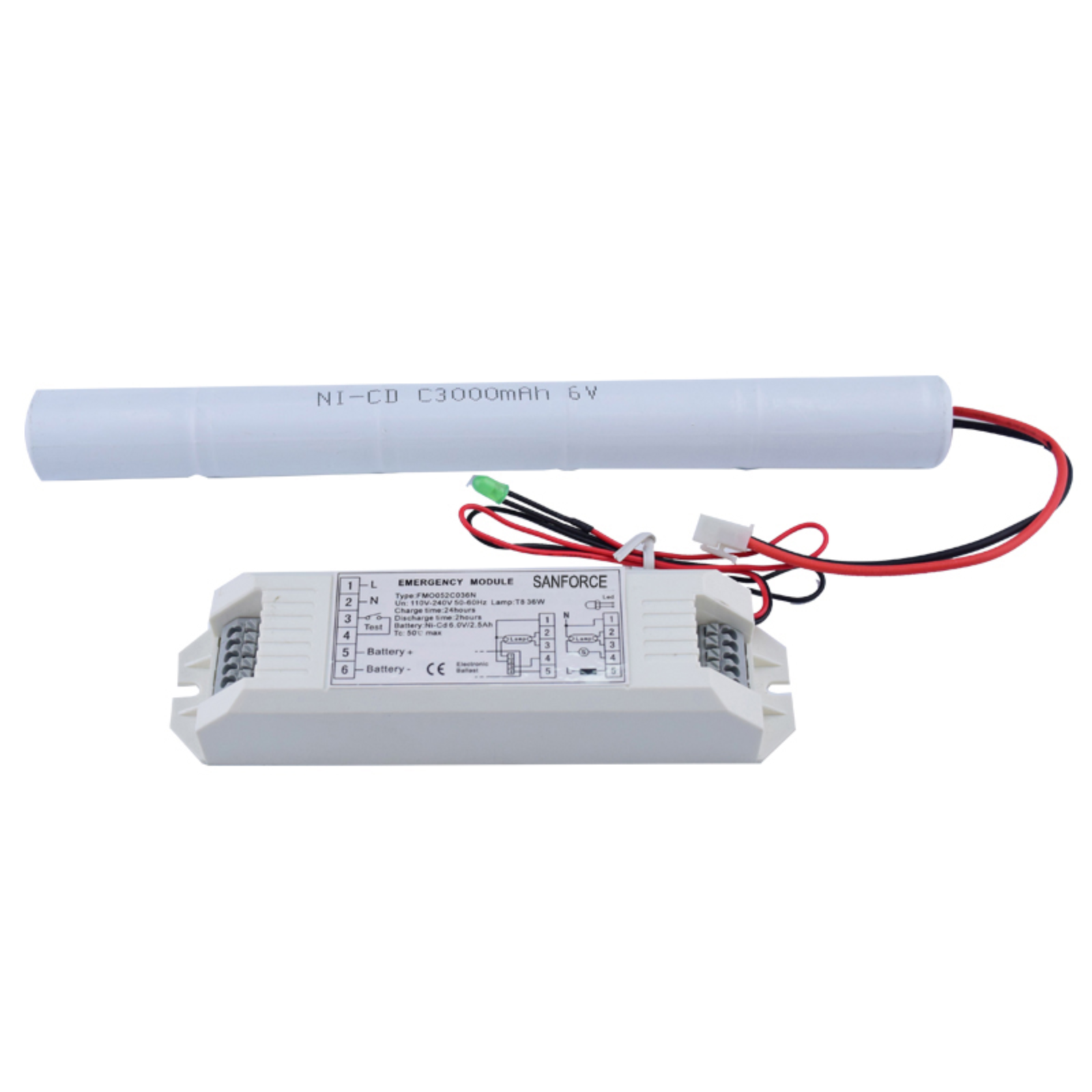

Ballasts

In contrast, inverters are responsible for transforming direct current (DC) into alternating current (AC), and they are prevalent in uninterruptible power supplies (UPS) systems, solar panels, and electric cars to supply a reliable AC power supply.

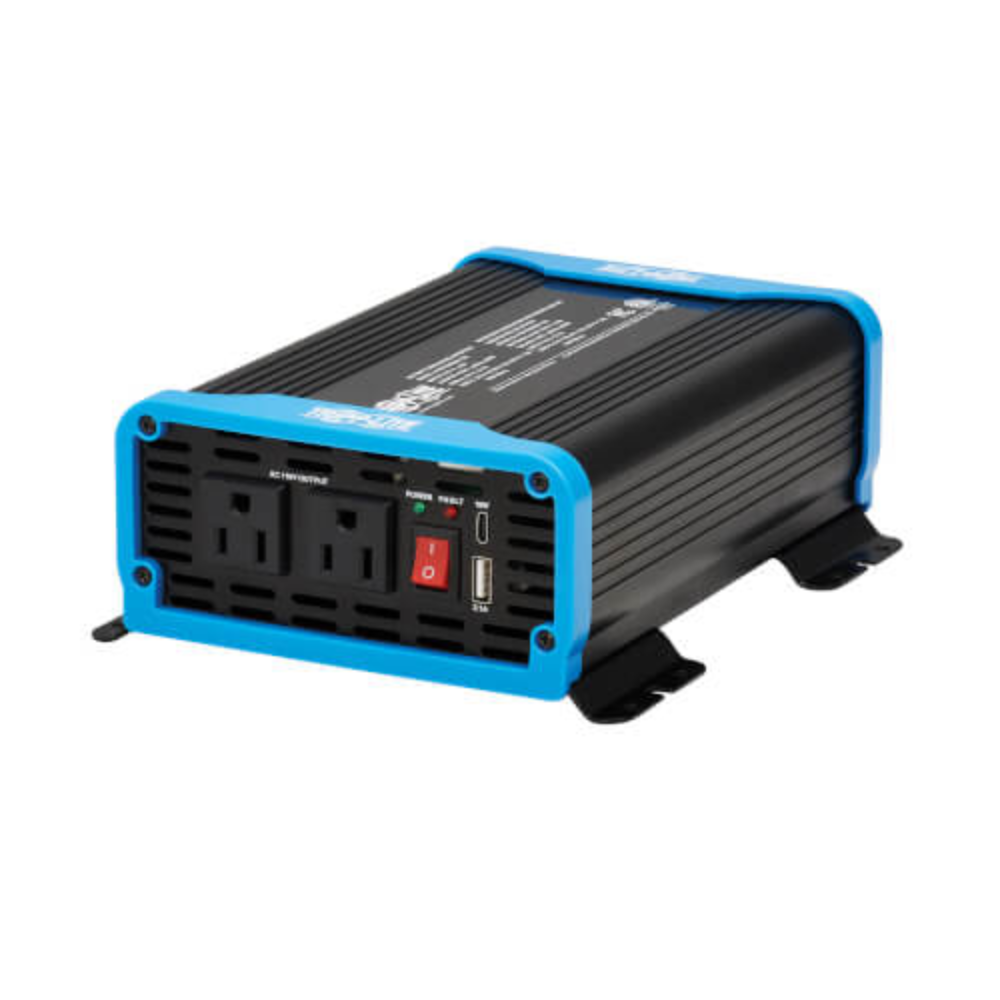

Inverters

Functions and Applications of Ballasts and Inverters

Ballast

Ballasts are integral to lighting systems, managing the electrical current that passes through lamps to guarantee a consistent and efficient illumination.

Ballasts serve two crucial roles:

1. Initiating Lamp Ignition: They supply the necessary high voltage to ignite the lamp.
2. Current Control: They restrict the current passing through the lamp, maintaining it at a secure and consistent level.

Inverters

Inverters are electrical devices engineered to amplify output voltage significantly, typically ranging from 100 to 1000 volts, starting from a comparatively low input voltage, which can vary between 1.5 to 24 volts. These units are predominantly used in specific backlighting scenarios, including cold cathode fluorescent lamps, ultraviolet lamps, and Electroluminescent wire. In terms of inverter termination, it often features a pre-installed connector or is mounted through hole pc pins on a compact board.

Types of Ballasts and Inverters

Ballasts: Magnetic ballasts&Electronic ballasts

Magnetic ballasts represent an older generation of ballast technology. They are commonly used in the realm of fluorescent lighting, including both T12 linear fluorescent lamps and two-pin compact fluorescent lamps (CFLs). In the domain of High-Intensity Discharge (HID) lighting, magnetic ballasts are also employed, particularly with certain types of metal halide and high-pressure sodium (HPS) lamps .

Currently, the majority of fluorescent and HID lamps are powered by electronic ballasts. These ballasts are capable of delivering various electrical frequencies without the need to change the input voltage, thereby eradicating flicker and buzz.
