LCD (Liquid Crystal Display) drivers/controllers are electronic devices used to control the display of images and text on LCD screens. They are responsible for receiving input signals, processing data, and driving the pixels on the LCD panel to create images. LCD drivers/controllers play a crucial role in display parameters such as display quality, brightness, contrast, and color saturation. These controllers are widely used in a variety of electronic devices, including portable devices, industrial equipment, and home appliances.

Display, Monitor - LCD Driver/Controller

Functions of LCD Drivers/Controllers:

1. Signal Processing:LCD driver/controllers receive input signals (e.g., from a computer, microcontroller, or other control system) and convert them into a format compatible with the display panel. This involves transforming data into electrical signals that can drive the individual pixels of the LCD.
2. Pixel Control:The controller manages the on-and-off states of each pixel on the display by controlling the voltage applied. This precise control ensures that images are displayed with proper brightness, contrast, and color accuracy.
3. Backlight Management:Many LCD driver/controllers include functionality to control the backlighting of the display, optimizing visibility and power consumption. This is especially important in applications where power efficiency is critical, such as in portable devices.
4. Timing and Synchronization:Controllers handle the timing and synchronization of signals, ensuring that the data fed to the display panel matches the screen’s refresh rate. This prevents visual artifacts like flickering or misalignment of images.

Key Features of LCD Driver/Controllers:

• Resolution Support: LCD controllers come with capabilities to support various display resolutions, from simple low-resolution screens to high-definition (HD) and ultra-high-definition (UHD) panels.
• Interface Options: They support different communication interfaces such as HDMI, VGA, LVDS (Low-Voltage Differential Signaling), and DSI (Display Serial Interface), depending on the application.
• Color Management: Advanced controllers may include color management features to adjust color balance, gamma correction, and grayscale for improved image quality.
• Power Efficiency: Many controllers are designed to manage power efficiently to extend the battery life of portable devices.

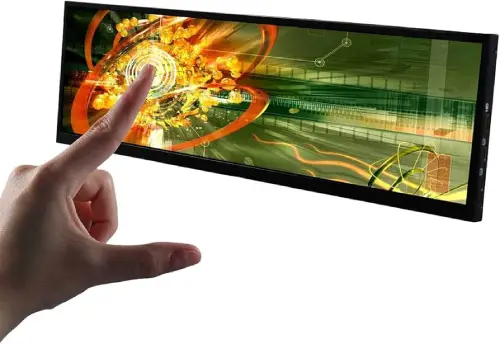

• Touch Screen Integration: Some LCD controllers come with integrated touch panel support, allowing for both display and touch functionality in devices like smartphones and tablets.

Types of LCD Driver/Controllers:

1. Integrated LCD Controllers:These are built into microcontrollers or processors and are suitable for simpler displays with fewer external components needed.Used in compact devices like handheld gadgets and basic industrial displays.
2. Standalone LCD Controllers:Separate units dedicated solely to managing the LCD, providing more flexibility and higher performance.Suitable for high-resolution displays and complex systems like TVs and advanced monitors.
3. TFT (Thin-Film Transistor) LCD Controllers:Specifically designed to manage TFT LCDs, which offer improved image quality over basic LCDs due to better color and faster refresh rates.Widely used in consumer electronics, automotive displays, and digital signage.

Applications of LCD Driver/Controllers:

• Consumer Electronics: Such as smartphones, tablets, laptops, and TVs where high-resolution displays with color accuracy are vital.
• Automotive Displays: Dashboards and infotainment systems rely on robust LCD controllers for clear, reliable visual output.
• Industrial Monitors: Used in factory settings for human-machine interfaces (HMIs), which require displays that can handle harsh environments and continuous use.
• Medical Devices: For monitors that display critical patient data and require precise image rendering.

Choosing an LCD Driver/Controller:

• Compatibility: Ensure that the driver/controller matches the LCD panel type, resolution, and interface needed for the project.
• Performance Requirements: Consider the controller’s ability to handle the necessary refresh rate and color depth.
• Power Consumption: For battery-powered devices, choose a controller optimized for low power usage.
• Additional Features: Assess if features like touch integration, backlight control, or programmable settings are needed.

Conclusion:

LCD driver/controllers are integral for the effective operation of LCD screens across various applications. By managing signal processing, pixel control, and backlight regulation, these controllers ensure that displays function smoothly and produce high-quality images. Their role is crucial in bridging the communication between the system and the LCD panel, contributing to the functionality and user experience of electronic devices.
