Description of Fiber Optic Receivers

Fiber optic receivers are sophisticated electronic devices that serve the purpose of translating optical signals into electrical ones. They are extensively used in various settings, including communication networks, data centers, and industrial automation systems. Known for their high sensitivity and reliability, these receivers facilitate the transmission and reception of signals over extended distances. Typically, fiber optic receivers are paired with fiber optic transmitters to form a comprehensive optical signal transmission pathway.

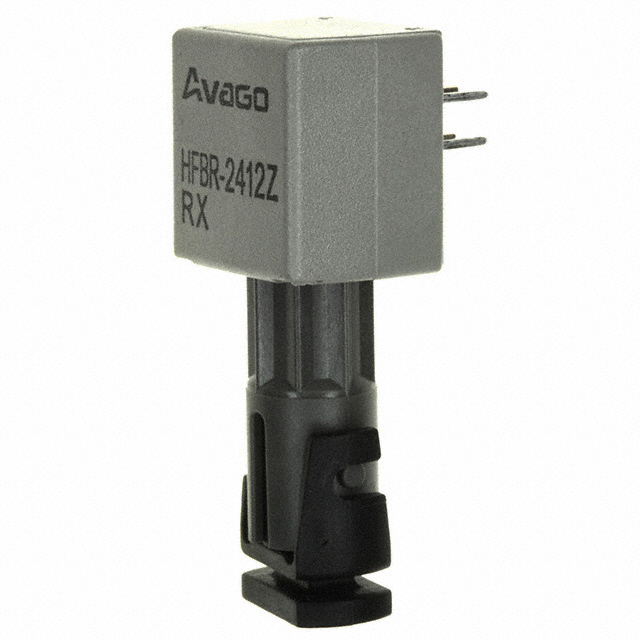

Fiber optic receiver

Working Principle of Fiber Optic Receivers

Fiber optic receivers employ a variety of photodetectors, such as PN junctions, PIN photodiodes, or APDs, to detect light signals. These signals are emitted by a fiber optic transmitter or transceiver and propagate through either single-mode or multi-mode optical fibers, contingent upon the system's specifications.

The Main Parts of Fiber Optic Receivers

A fiber optic receiver is composed of three primary elements: a photodetector, a transimpedance amplifier, and a data recovery circuit. Here's how each component functions:

1. Photodetector: This component is responsible for transforming incoming light pulses into electrical signals. The prevalent types of photodetectors used are photodiodes and avalanche photodiodes (APDs).
2. Transimpedance Amplifier: It amplifies and filters the electrical signals that are emitted by the photodetector, ensuring they are strong enough for further processing.
3. Data Recovery Circuit: This circuitry demodulates and decodes the electrical signals to extract the transmitted data, adhering to the specific format and protocol used by the transmitter.

What is the difference between optical transmitter and optical receiver?

Optical transmitter is tasked with the conversion of electrical signals into optical signals that are compatible for transmission through optical fibers. It serves as the starting point of the fiber optic communication chain, encoding and emitting light pulses that represent the data being sent. While optical receiver is on the other end of the communication link, the optical receiver is responsible for capturing the optical signals transmitted via the optical fiber. Then it converts these light signals back into electrical signals, extracting the information encoded within them.
