LCD (Liquid Crystal Display)

LCDs are widely used in electronic devices due to their energy efficiency and affordability. They work by manipulating liquid crystals to control light passing through them, often requiring a backlight.

LCD, OLED, Graphic

Graphic LCDs

• Graphic LCDs can display images, symbols, and complex shapes in addition to text.
• They use a matrix of pixels (e.g., 128x64, 240x320) to create detailed visuals.
• Applications include industrial equipment, medical devices, and gaming consoles.
• Unlike character LCDs, they offer much greater flexibility in display content, enabling custom designs, animations, and logos.
• Require a controller IC (e.g., ST7920 or SSD1306) to manage pixel data.

OLED (Organic Light Emitting Diode)

OLEDs are a newer display technology where each pixel emits its own light. They offer better contrast and viewing angles compared to LCDs.

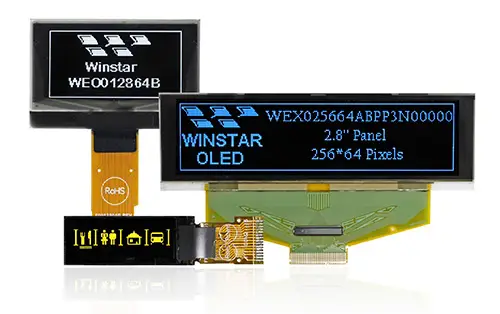

Graphic OLEDs

• Similar to graphic LCDs but with superior brightness, color accuracy, and contrast.
• They do not require a backlight, resulting in true black levels and thinner designs.
• Widely used in smartphones, smartwatches, and high-end instrumentation.
• Power consumption is proportional to the content (darker visuals consume less power).

Key Differences Between Graphic LCDs and Graphic OLEDs

1. Backlight: LCDs need a backlight, while OLEDs are self-emissive.
2. Contrast and Color: OLEDs deliver richer colors and true blacks; LCDs are more limited.
3. Lifespan: LCDs are more resistant to image retention, while OLEDs may suffer from burn-in over time.
4. Cost: OLED displays are generally more expensive than LCDs.
5. Power Efficiency: OLEDs are more efficient for darker displays, but LCDs are better for bright or white-dominant visuals.

Applications of Graphic Displays

Graphic displays, whether LCD or OLED, are used in devices requiring visual data representation:

• Industrial: Control panels, diagnostic tools.
• Consumer Electronics: Smartphones, tablets, cameras.
• Medical: Monitors, diagnostic imaging equipment.
• Automotive: Instrument clusters, infotainment systems.

Graphic displays enable designers to present detailed and dynamic content, making them essential for modern interfaces.
