Overview of Light Pipes

Light pipes are optical elements commonly employed to enhance the uniformity of light emission or to channel light. These components are also known by various other names, including homogenizing rods, light guides, homogenizers, and light funnels.

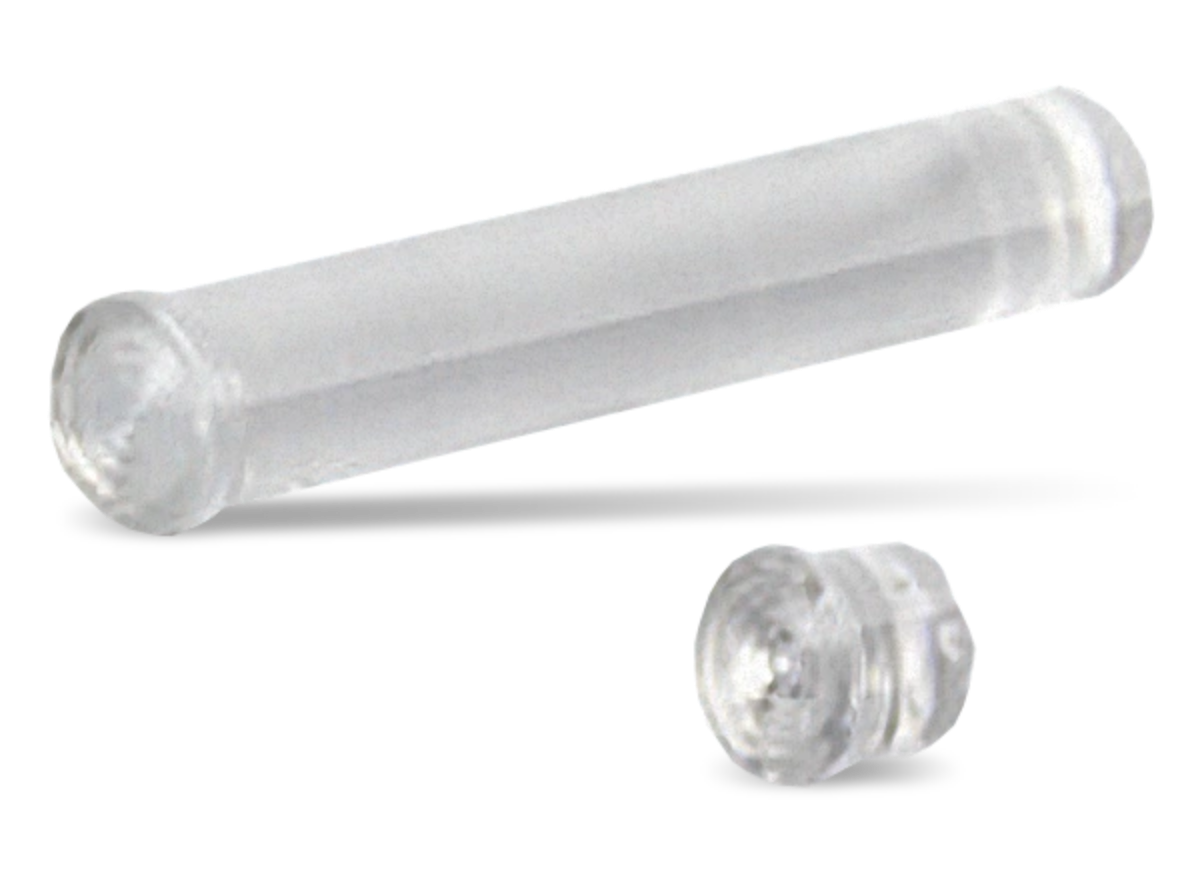

Light pipes

Advantages of Light Pipes

Enhanced Flexibility and Precision: By fine-tuning the length, angle, and spacing, designers can achieve the precise visual effect and consistent light distribution they seek through the appropriate light pipe configuration.

Reduced Light Seepage: Light leakage occurs when light escapes without properly illuminating the intended indicator, resulting in light waste and a subpar user experience. Choosing the correct light pipe and its optimal positioning between the LED and the panel ensures efficient lighting without light loss.

Simplicity in Installation: Regardless of the light pipe model, installation can be as straightforward as a snap with snap-fit or press-fit mechanisms.

Cost-Effective Manufacturing: When a device requires multiple panel mount indicators (PMIs), production expenses can escalate. Light pipes offer a cost-effective solution that reduces expenses without compromising reliability, design versatility, or visual clarity.

Working Principle of Light Pipes

A light pipe is positioned in close proximity to an LED light source at one end of a PCB. The optical-grade materials within the light pipe facilitate the conveyance of light rays to their intended destination, which is often the user interface of an electronic device.

Light pipes are capable of transmitting approximately 80 to 90 percent of the light emitted by the LED source, with the efficiency varying based on the design and the distance between them. The closer the light pipe is to the LED(s), the more effectively it can conduct light.

It's essential to ensure that the light pipe(s) used can withstand the heat generated by the LED or light source, which is a critical design consideration. This factor can also determine the minimum safe distance that should be maintained between the light pipe and the light source to prevent damage or degradation.

What are light pipes made of?

The two most prevalent materials for optical applications are optical acrylic and polycarbonate. These materials are favored for their light weight and durability, as well as their desirable optical characteristics suitable for a wide range of uses.

Acrylic Light Pipes

Acrylic outshines polycarbonate in terms of optical performance. It is readily moldable, inherently stable against UV rays for indoor applications, and surpasses all other plastics in light transmission capabilities.

Polycarbonate Light Pipes

Polycarbonate light pipes are renowned for their exceptional light transmission capabilities and are particularly suited for applications that demand resistance to higher temperatures. Additionally, polycarbonate is available in UV-stabilized forms, making it an ideal choice for outdoor applications where protection against ultraviolet radiation is necessary
