What is a Relay Module?

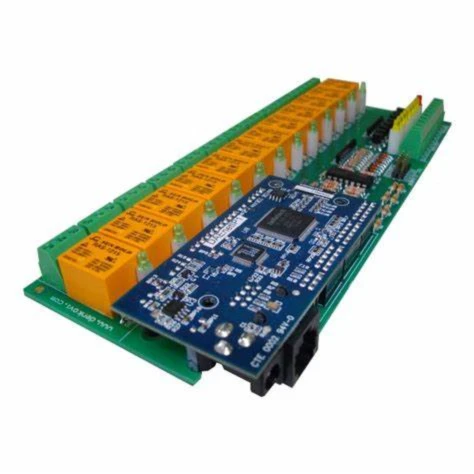

A relay module is a circuit board that contains one or more relays, and it is designed to control electrical devices or systems that operate at higher voltages or currents. These modules come in various sizes and configurations, typically featuring 2, 4, 8, or even 16 relays on a single board.

In addition to relays, relay modules often include components such as indicator LEDs, protection diodes, transistors, resistors, and other electronic parts. At the core of a relay module is the relay itself, which functions as an electrically operated switch, most commonly utilizing an electromagnet to open or close circuits.

Relay modules typically operate on low-voltage DC inputs, such as 3.2V, 5V, 12V, or 24V, depending on the application. While the input voltage for the control circuit is DC, the relay can switch both AC and DC loads, as long as they are within the relay’s rated capacity. The specifications of the relay module, including the input voltage, switch voltage, and current limits, are usually printed on the module for easy reference.

Relay Module Function

The primary function of a relay module is to control electrical devices by switching them on or off, often with a low-power signal from a microcontroller. This is particularly useful when you need to control high-voltage or high-current devices with low-power control circuits. The relay acts as an intermediary, enabling a microcontroller or other low-power devices to safely control larger systems.

Additionally, relay modules help to isolate the control circuit from the device being controlled. This isolation ensures that the control circuit is not exposed to dangerous high-voltage spikes, providing an extra layer of safety. Relay modules also serve to amplify the small control signal from a microcontroller, allowing it to switch larger currents that the microcontroller alone cannot handle.

Common FAQs about Relay Modules

What is the difference between a 5V and a 12V relay module?

A 5V relay module is typically used for low-power applications, while a 12V relay module can handle higher power systems. The choice between the two depends on the voltage level required by the system you're controlling.

Can a relay module be used for both AC and DC circuits?

Yes, most relay modules can control both AC and DC devices, but it's important to check the relay's specifications to ensure it can handle the voltage and current ratings for your specific application.

How do I control a relay module with a microcontroller?

Relay modules are usually controlled by a digital signal from a microcontroller. The microcontroller sends a low-power signal to the relay, which in turn controls the larger power load. A transistor or driver circuit may be used to interface the microcontroller with the relay module, especially if the relay requires more current than the microcontroller can provide.

What is the maximum current a relay can switch?

The maximum current a relay can switch depends on the relay's specifications, including its contact rating. For example, some relays are rated for 10A or more, while others may be limited to smaller currents. Always check the datasheet for the exact current and voltage limits.

Why is a protection diode used in a relay module?

A protection diode is used to protect the relay from voltage spikes, especially when switching inductive loads like motors or solenoids. When the relay opens, the collapsing magnetic field can cause a high-voltage spike, and the diode helps to safely dissipate this energy.
