What Is An Attenuators？

An attenuator is a control component primarily designed to decrease the amplitude of the signal passing through it. It is commonly used to adjust signal levels within a system, enhance the dynamic range, match impedance, and facilitate various calibration processes in the final application design.

Types of Attenuators

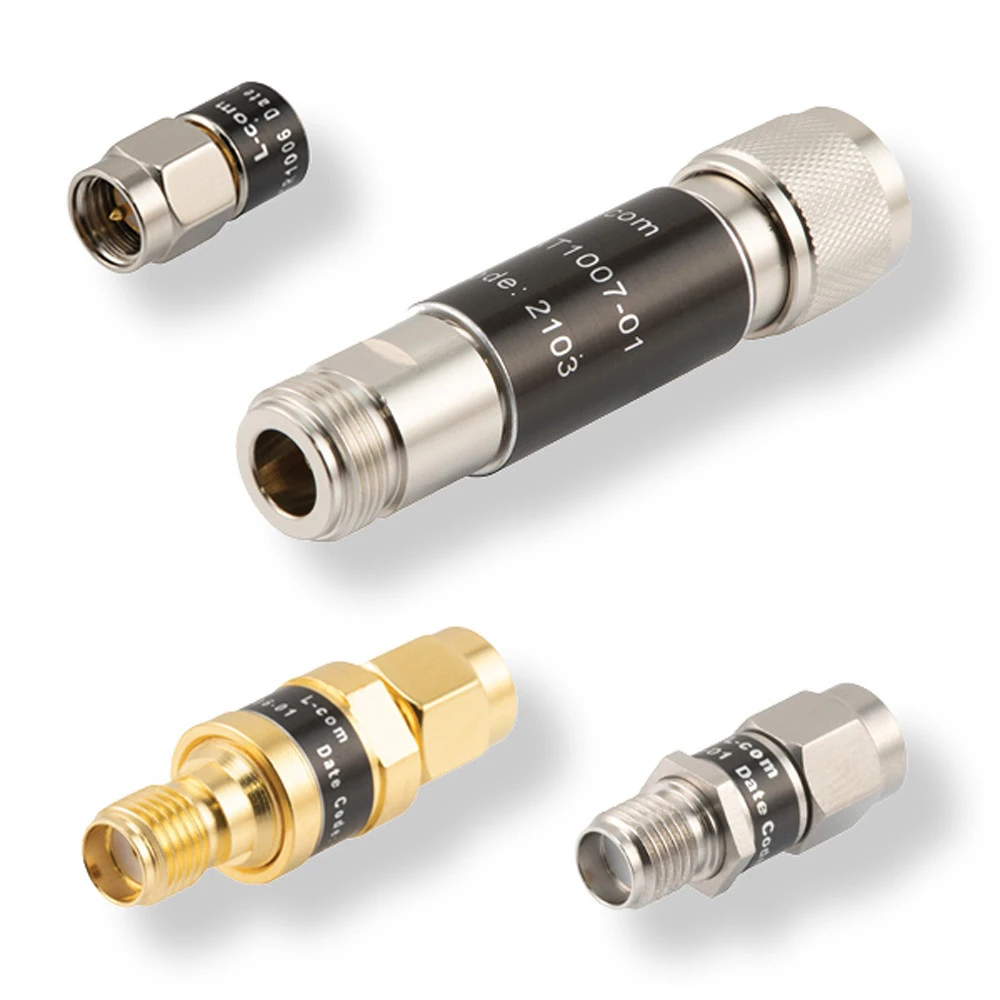

Attenuators can be categorized based on their key functionality into fixed and variable types. Fixed attenuators have a constant attenuation level, while variable attenuators allow for adjustable attenuation levels. Variable attenuators can be further divided into voltage variable attenuators (VVAs) and digital step attenuators (DSAs), depending on the type of control they support.

VVAs provide continuous attenuation adjustment, enabling precise control over the signal strength within a specified range. These analog variable attenuators are typically used in applications such as automatic gain control, calibration adjustments, and other processes that require smooth, accurate signal control.

On the other hand, DSAs offer discrete attenuation levels with specific step sizes for signal strength adjustment. These digitally controlled RFIC attenuators feature a control interface compatible with microcontrollers, making them an effective choice for maintaining performance in complex system designs.

Key Specifications

To choose the appropriate type of attenuator for a given application, engineers must have a solid understanding of its key specifications. Beyond basic parameters like attenuation capabilities, input and output impedance, insertion loss, and return loss, there are several other characteristics that define attenuator components. Some of the most important ones include:

• Frequency range (Hz): The range of frequencies over which the attenuator maintains its specified performance.
• Attenuation (dB): The amount by which the signal is reduced, in addition to the insertion loss.
• Frequency response: The variation in attenuation (dB) across the frequency range.
• Attenuation range (dB): The total attenuation the component can provide.
• Input linearity (dBm): Typically represented by the third-order intercept point (IP3), which indicates the input power level at which the power of spurious components equals the fundamental signal.
• Power handling (dBm): Usually defined by the input 1 dB compression point, where the insertion loss increases by 1 dB. This specification is typically given for both average and peak input power levels in steady-state and hot-switching conditions.
• Relative phase (degrees): The phase shift introduced by the attenuator to the signal.

In addition to these common parameters, variable attenuators (VAs) are characterized by their switching performance, often measured in nanoseconds (ns) and including rise and fall times, on and off times, and the amplitude and phase settling times of the output RF signal.

Each type of variable attenuator has its unique characteristics:

• For Voltage Variable Attenuators (VVAs):
• Voltage control range (V): The control voltage range used to adjust the attenuation level.
• Control characteristics: These include the attenuation slope (dB/V) and performance curves that show how attenuation varies with control voltage.

• For Digital Step Attenuators (DSAs):
• Attenuation accuracy (dB): The maximum variation in the attenuation level from the nominal value.
• Attenuation step size (dB): The difference between two successive attenuation states.
• Step error (dB): The variation in the attenuation step size from the nominal value.
• Overshoot and undershoot (dB): The magnitude of signal transients (glitches) during state transitions.


A high-quality attenuator should provide flat attenuation performance, a low VSWR across the operational frequency range, accurate power handling, and smooth operation with minimal signal distortion or glitches during state transitions. Additionally, the attenuator should feature linear control characteristics for optimal performance.
