RF Circulators and Isolators

RF Circulators: A special type of RF device that routes the input RF signal to different ports in a specific sequence without allowing reverse transmission. They provide a non-reciprocal signal path between the antenna and the receive/transmit equipment, widely used in communications, radar, and test equipment.


RF Circulators and Isolators

RF Isolators: Devices used to reduce reverse signal propagation in RF or microwave circuits, effectively preventing signal reflection and interference, and enhancing system performance and stability.

RF Circulators and Isolators

RF circulators and isolators are passive microwave devices used in radio frequency (RF) and microwave systems to control the direction of signal flow. Both of these components serve the primary function of providing isolation between different parts of a system, but they operate differently and are used in different contexts.

RF Circulators

An RF circulator is a non-reciprocal device that directs an RF signal from one port to another in a specific rotational manner, typically in a clockwise or counter-clockwise direction. It has multiple ports (usually three or four) and allows signals to flow in only one direction through the device, based on its design. This directional behavior is achieved using magnetic fields, which influence the flow of signals.

Key Features and Operation:

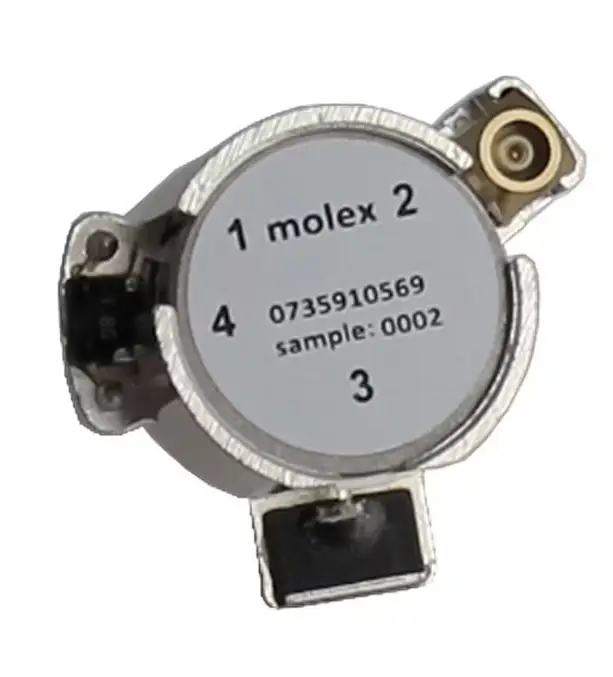

• Ports: A three-port circulator is the most common type, where a signal entering Port 1 will be routed to Port 2, Port 2 to Port 3, and Port 3 to Port 1. A four-port circulator follows a similar principle but with additional routing possibilities.
• Non-reciprocal Nature: Circulators are non-reciprocal, meaning that the signal can flow in only one direction through the device. The direction of signal flow is determined by the magnetic field applied to the circulator.
• Magnetic Field: The circulator uses a magnetic field (produced by a permanent magnet or an electromagnet) to break the symmetry of the device and ensure that the signal flows in one specific direction.
• Passive Device: Circulators do not require any external power source to operate; they are purely passive, relying on the magnetic field and their internal construction to guide the signal.

Applications:

• Signal Routing: Circulators are used in RF and microwave systems to route signals between different parts of a system, such as in radar, communications, and test equipment.
• Isolation in Transmitter and Receiver: In systems where you need to prevent a transmitted signal from interfering with the receiver, a circulator can be used to isolate the transmitter from the receiver.
• Antenna Systems: In antenna systems, circulators are often used to separate the transmitting and receiving signals, especially in duplexing applications.

Example:

• In a radar system, a circulator is used to direct the transmitted signal from the transmitter to the antenna and the received signal from the antenna to the receiver, ensuring that the transmitter and receiver do not interfere with each other.

RF Isolators

An RF isolator is a two-port device that allows RF signals to pass in one direction while providing a high level of isolation in the reverse direction. Essentially, an isolator is a "one-way valve" for RF signals, ensuring that the signal flows in the desired direction and preventing any reflected signals or unwanted power from returning to the source.

Key Features and Operation:

• Ports: An isolator typically has two ports—one for the input signal and one for the output signal. The device allows signals to pass from the input to the output with minimal loss, but it provides isolation from any reflected signals that might attempt to return to the input.
• Non-reciprocal: Like the circulator, an isolator is also non-reciprocal. However, unlike the circulator, it only has two ports and does not involve complex routing between multiple ports. It allows the signal to pass in one direction while blocking any reverse transmission.
• Magnetic Material: RF isolators use a ferrite material, which is influenced by an external magnetic field to control the direction of signal flow. This magnetic material is crucial for providing the isolation and preventing the reverse flow of signals.
• Loss and Isolation: The primary function of an isolator is to provide isolation between the input and output, which can protect sensitive components like amplifiers from damage caused by reflected power. Isolators typically exhibit very low loss in the forward direction and high isolation in the reverse direction.

Applications:

• Amplifier Protection: One of the most common uses of RF isolators is to protect sensitive components, such as amplifiers, from reflected signals that could cause instability or even damage. The isolator prevents any reflected energy from returning to the amplifier, thereby ensuring stable operation.
• Signal Integrity: Isolators are used in systems where maintaining the integrity of the signal is critical, such as in test equipment, communication systems, and measurement setups.
• Duplexers and Other RF Networks: Isolators are frequently used in RF networks that involve the simultaneous transmission and reception of signals, such as in duplexers and full-duplex communication systems.

Example:

• In a communication system with a power amplifier, an isolator is placed between the amplifier and the antenna to ensure that any reflected power from the antenna does not flow back into the amplifier, preventing potential damage to the amplifier and ensuring signal integrity.

Key Differences Between Circulators and Isolators

1. Functionality:Circulator: Routes signals in a specific direction through multiple ports. It can direct a signal from Port 1 to Port 2, Port 2 to Port 3, and so on.Isolator: Allows signals to pass in one direction only, providing isolation to prevent reflected signals from returning to the source.
2. Number of Ports:Circulator: Typically has three or more ports (usually three-port circulators are common).Isolator: Typically has two ports, one for input and one for output.
3. Signal Flow:Circulator: The signal flows through multiple ports in a rotational manner, depending on the number of ports in the circulator.Isolator: The signal flows only in one direction through the device, with no signal routing between multiple ports.
4. Applications:Circulator: Used for routing signals, isolation in transmitter/receiver systems, and antenna systems.Isolator: Used for protecting components like amplifiers from reflected signals and ensuring signal integrity in RF and microwave systems.

Conclusion

RF circulators and isolators are essential components in RF and microwave systems, each providing unique functionality for signal management and protection. Circulators are typically used for directing signals between multiple ports, ensuring that signals flow in one direction through the system. Isolators, on the other hand, are designed to provide one-way signal flow while isolating components from reflected power. Both devices utilize magnetic materials and non-reciprocal principles to achieve their functionality and are crucial in applications ranging from communications to radar systems.
