RF Demodulators

An RF demodulator is a device that extracts the original information or signal from a modulated RF (radio frequency) carrier wave. In radio communications, RF signals are often modulated to carry information, such as audio, video, or data, over a long distance. The process of demodulation is the inverse of modulation: it involves converting the modulated RF signal back into its baseband form, which is the original information signal.

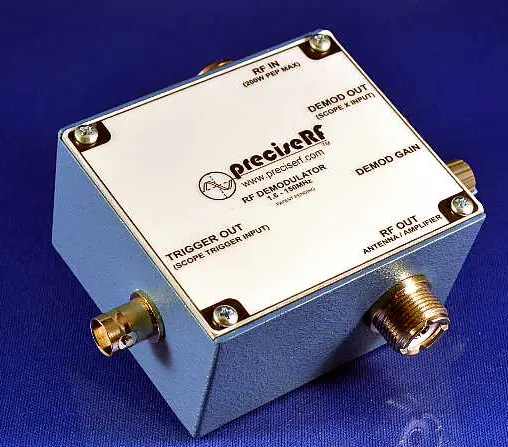

RF Demodulators

RF demodulators play a crucial role in wireless communication systems, allowing the received RF signal to be processed and interpreted by various communication devices, including radios, televisions, smartphones, and other wireless receivers.

Key Concepts in RF Demodulation

1. Modulation Types: RF signals are modulated using various techniques, and the type of modulation determines how the demodulator works. Common modulation schemes include:Amplitude Modulation (AM): The amplitude of the carrier signal is varied according to the information signal.Frequency Modulation (FM): The frequency of the carrier signal is varied based on the information signal.Phase Modulation (PM): The phase of the carrier signal is altered based on the input signal.Quadrature Amplitude Modulation (QAM): Combines both amplitude and phase modulation for more efficient use of bandwidth.Frequency Shift Keying (FSK): Digital data is transmitted by varying the frequency of the carrier signal.Phase Shift Keying (PSK): Digital data is transmitted by varying the phase of the carrier.
2. Demodulation Process: The demodulation process is designed to reverse the modulation, recovering the baseband signal (original message) from the modulated RF carrier. The process varies depending on the modulation scheme used:In AM demodulation, the amplitude variations of the carrier signal are detected to retrieve the original audio or data.In FM demodulation, the variations in the frequency of the carrier are decoded to retrieve the original information.In PSK or FSK, the phase or frequency shifts of the carrier are analyzed to recover the data.
3. Components of an RF Demodulator:RF Front-End: The RF front-end typically includes an RF amplifier and a filter to select the frequency of interest and amplify the weak incoming signal.Mixer: A mixer is used to shift the frequency of the incoming RF signal down to a lower intermediate frequency (IF) or baseband frequency, which is easier to process. The mixer combines the received RF signal with a local oscillator signal.Demodulator Circuit: After the signal is downconverted to IF, the actual demodulation happens in the demodulator circuit. This part extracts the information from the carrier using the appropriate modulation technique.Low-pass Filter: After demodulation, the low-pass filter removes any high-frequency noise or components from the demodulated signal, leaving only the baseband signal.Decoder/Signal Processor: In digital communication systems, the demodulated signal is further processed by a decoder or digital signal processor (DSP) to convert the signal into a usable form, such as audio, video, or data.

Types of RF Demodulators

1. Analog Demodulators:AM Demodulator: Common in AM radio receivers, it detects variations in the amplitude of the incoming signal to extract the audio or information.FM Demodulator: Used in FM radio receivers, it decodes frequency variations in the carrier to recover the audio signal.Envelope Detector: A simple circuit used for AM demodulation, where the envelope of the AM signal is extracted to retrieve the baseband information.
2. Digital Demodulators:Phase-Locked Loop (PLL) Demodulators: Used for FM or phase modulation, PLL demodulators lock onto the phase or frequency of the incoming signal and track the variations, effectively demodulating the signal.Costas Loop: A sophisticated method used in digital communications for PSK or QAM demodulation, especially in systems like satellite communications or digital TV.Matched Filter Demodulators: Used in systems with noise-reduction needs, matched filters improve the accuracy of signal detection by maximizing the signal-to-noise ratio (SNR).
3. Software-Defined Radio (SDR) Demodulators:SDR-based Demodulators: Software-defined radio systems offer a flexible approach to RF demodulation. By using software and digital processing algorithms, SDR systems can demodulate various types of signals and modulation schemes. This makes SDR an ideal choice for versatile communication systems, as it can be reprogrammed to handle different modulation types.

Key Applications of RF Demodulators

1. Radio Communications: RF demodulators are fundamental in AM, FM, and digital radio receivers, where they decode the transmitted signals back into audio or other forms of information.
2. Television Reception: Demodulators in TV receivers decode the RF signals transmitted by TV stations into video and audio signals that can be displayed on a screen.
3. Cellular and Wireless Networks: RF demodulators in mobile devices and wireless communication systems extract data from the modulated RF signals used in technologies like GSM, CDMA, LTE, Wi-Fi, and more.
4. Satellite Communication: RF demodulators decode the signals received from satellites, which carry data for TV broadcasts, GPS signals, and internet communication.
5. Radar Systems: In radar, demodulation is used to process reflected signals and extract information about objects or environments being scanned.

Challenges in RF Demodulation

• Noise and Interference: RF signals are often subject to interference from other devices, weather conditions, and atmospheric phenomena, which can degrade the quality of the demodulated signal. Advanced techniques like error correction and filtering are often employed to address this.
• Signal Fading: In wireless communications, signal fading due to environmental conditions can cause variations in signal strength, making reliable demodulation more difficult.
• Bandwidth Efficiency: As the demand for data increases, there is a constant push for demodulation techniques that are bandwidth-efficient, allowing more data to be transmitted within a given frequency range.

Conclusion

RF demodulators are vital components in modern communication systems, responsible for extracting baseband information from modulated RF signals. With applications ranging from radio and television to satellite communication and mobile networks, demodulation enables the proper interpretation of transmitted data. The choice of demodulation technique depends on the modulation scheme, signal quality, and system requirements, with both analog and digital approaches offering solutions for various scenarios.
